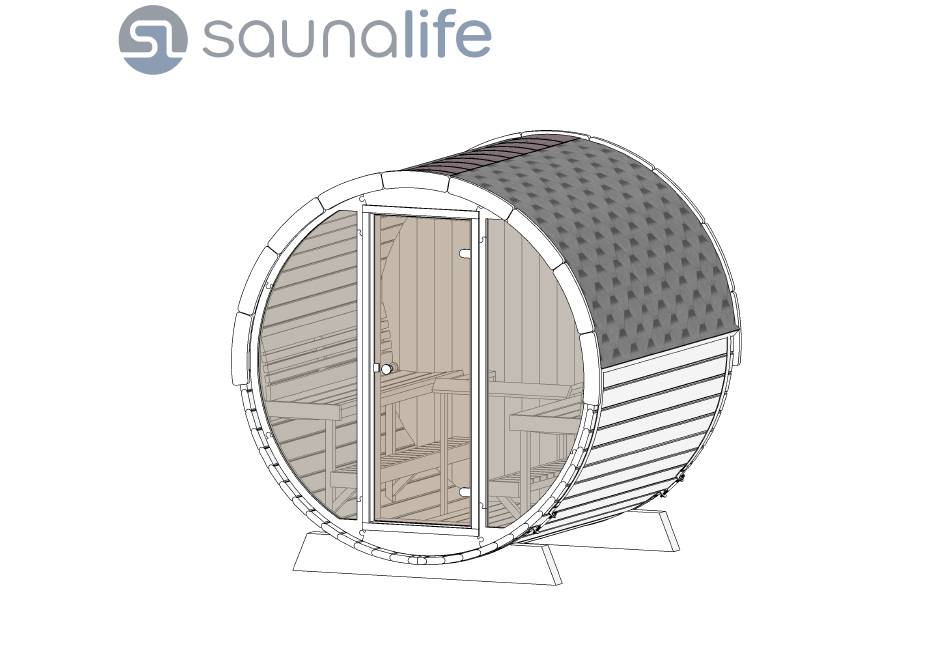

- Page 1 Ergo-Series EE8G Barrel Sauna Full Glass Front 79D" x 90H" Note: Please read manual before construction Rev: (1.0)7/2023...
- Page 2 Front & Back Walls...
- Page 3 EE8G Barrel Sauna 79D" x 90H" Details list. 1 x2 kmpl.
- Page 4 EE8G Barrel Sauna 79D" x 90H" Details list. 2 (x4) Bit PH2 (x4) Torx bits T10 T15 (x2) ~330 (x15) (x90) (x35) (x190) (x50) T20 T25...
-
Page 5: Tools Needed
Tools needed Measuring tape Marker pen Circular saw Water level Hammer Extra hands Silicone gun Ratchet strap (Only glass-wall models) Drill Cresent wrench Utility knife Rubber mallet... - Page 6 Front glass wall installation Thickness .62" Thickness 1.06" Baseframe 1.06" Apply waterproof DET 1 silicone to the groove Use piece of wood to protect plywood DET 4a DET 3b DET 3a DET 4b DET 2...
- Page 7 Front glass wall installation Mount carefully glasses. .07" Coverframe .62" Apply waterproof silicone Use piece of wood to protect plywood DET 3 DET 1 DET 4 DET 2...
- Page 8 Front glass wall installation DET U Fix it diagonally to make wall more rigid during the installation. Please be careful!!! Do not hit the glass with the screw. 40X J min. .78" 2X I Please be careful!!! Do not hit the glass with the screw.
- Page 9 Wooden back wall assembly Details Brackets DET U inside. 4x H Pre-drill holes .15" Pre-drill holes .15" before screws. before screws. 4x I 2x H...
- Page 10 EE8G Barrel Sauna 79D" x 90H" Back Diagonal measurements should be equal DET 1 4x M Front 2xDET A DET 1 4x M...
- Page 11 EE8G Barrel Sauna 79D" x 90H" 2x M DET 2 Center stave 2 on cradle 1 DET 3 Position cradles inside grooves of stave 2 mm=mm...
- Page 12 EE8G Barrel Sauna 79D" x 90H" 16x M...
- Page 13 EE8G Barrel Sauna 79D" x 90H" Drill 4 holes .50" through DET 2 outsid e 90° 4x H Check walls installation manual on extra pages! Sauna wall configuration depends on Your model! Brackets inside 3xDET 3 4x H Fix temporarily to support walls.
- Page 14 EE8G Barrel Sauna 79D" x 90H" Remove temporary bracing ~1/4 Important! Leave space IMPORTANT! Be sure to leave a .25” gap when tightening screws to leave room for adjustment when the outer bands (B) are installed. DET 3 See the next page. Strap Use strap to support DET 3...
- Page 15 EE8G Barrel Sauna 79D" x 90H" DET 6 Join two boards together (as shown in If needed, trim the flat edge of the diagram II) that will bridge the width of board to create the desired width. the "A" gap. It is recommended that the combined boards are approximately .25"...
- Page 16 EE8G Barrel Sauna 79D" x 90H" DET B1 DET B1 ~9.43" DET B DET B Remove strap 2x DET B Place the bands around the barrel on the outer side of the cradle.
- Page 17 EE8G Barrel Sauna 79D" x 90H" Remove all temporary braces 1x DET G 6x K Upper vent 3x DET F Lower vent 6x K 4x DET 10a 2x DET 10 12x J Back wall side is Front wall side is with endboard.
- Page 18 EE8G Barrel Sauna 79D" x 90H" Pre-drill holes .12" 10x I Fasten the opposite 4x H sides in the same way! 2x M Use level for Pre-drill holes .12" installation of benches Fix screw at slight angle, be careful to not hit the glass. 2x DET 11 Under the benches 6x H...
- Page 19 EE8G Barrel Sauna 79D" x 90H" 1x DET 12 2x H 2x DET 10c 4.64" 4x H 2x M 4x DET 12a 1x DET 12 2x H 8x H 2x M...
- Page 20 EE8G Barrel Sauna 79D" x 90H" 2x J 2x DET 15a 1x DET 14 2x H 2x DET 15b 4x H Cut from this side if needed! If Your sauna heater is smaller, You can cut DET 15a to size, that suits with Your heater.
- Page 21 EE8G Barrel Sauna 79D" x 90H" X= Front wall thickness Wooden front wall 1.12" Glass front wall 1.62" 2x M 1x DET 20 2x DET 20c 2x DET 20d 18x H 2x M Ensure door frame is pressed tightly against the wall and fasten from inside 2x DET 20a 2x DET 20b...
- Page 22 EE8G Barrel Sauna 79D" x 90H" DET N NB! Check also shingles installation manual inside shingles package. Shingles overlap on top ~.39" Check also roof shingles installation manual inside package. Cut DET N into three equal segments DET N DET O Cut and use it other end.
- Page 23 EE8G Barrel Sauna 79D" x 90H" 9xDET 25 9xDET 25 18x H 18x H Remove DET A...
