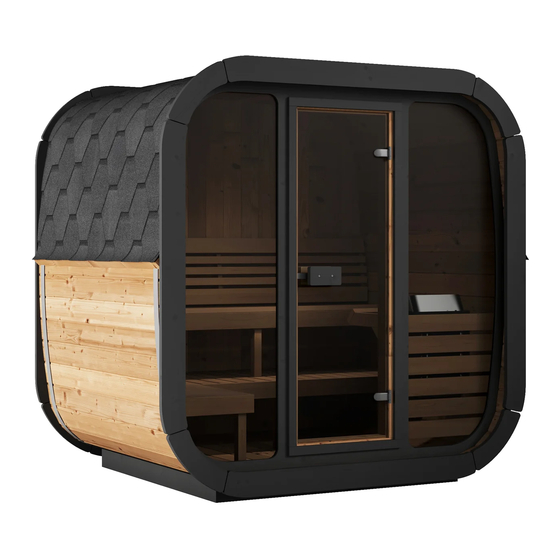

- Page 1 Cube-Series CL5G Outdoor Sauna 63D" x 81W" x 83H" Note: Please read manual before construction Rev: 1.0_6/2024...
- Page 2 Cube-Series CL5G Outdoor Sauna 63D" x 81W" x 83H" 23,23" 17,32" 80,71 " 77,17" 75,98" 73,23" 9,84" 17,72" 31,14" Rev: 1.0_6/2024...
-
Page 3: Tools Needed
Tools needed Measuring tape Marker pen Circular saw Water level Hammer Screwdriver Extra hands Drill Cresent wrench Utility knife Rubber mallet Ratchet strap... - Page 4 CL5G Outdoor Sauna 63D" x 81W" x 83H" Details list 1/5 DET 1 Article. K-SM100/1400 DET 2 Article. K-SM100/1300 DET 3 Article. T-STL117/1600XLM01 DET W kmpl Article. MU-TRAPP DET 3 Article. T-STL117/1600-01 DET 3/H Article. T-STL117/1600-01X DET Sb Article. IC-TE-20-PR-12/15V DET Sa Article.
- Page 5 CL5G Outdoor Sauna 63D" x 81W" x 83H" Details list 2/5 DET V Article. KI-VIN-25/40/40-ZN DET U1 Article. K-TL94/1940 DET Y1 Article. T-IC-PTS-20/28-V DET Y2 Article. T-IC-PTS-20/28-P DET U2 Article. K-TL94/1850 DET 6 Article. T-STL117/1600XL-01 DET 6c/d/e/f 1" ³/₈" Article. ³/₄"...
- Page 6 Details list 3/5 CL5G Outdoor Sauna 63D" x 81W" x 83H" DET F Article. MU-VENT-100-ZN DET 10a Article. K-HP44/510XP DET 11a Article. K-HP44/755XP DET 10c Article. K-HP44/170 DET 10 Article. TL-LAMOD-1930-KA01 DET 11 Article. TL-LAMOD-1860-01 DET 12 Article. TL-LAMOD-600-01 DET 10b Article.
- Page 7 Details list 4/5 CL5G Outdoor Sauna 63D" x 81W" x 83H" DET 21 Article. U-KL-6/17-PR DET 21c Article. K-HP44/1690 DET 21d Article. K-HP44/680 DET 21a Article. K-HL44/1660 DET 21b Article. K-HL44/650 DET 16 24.88" 23.74" 3° 8° 24.61" 23.11" 5° Article.
- Page 8 Details list 5/5 DET 22 Article. T-STL-1600-XX Underlay felt 26´ Article. KAT-AL DET N Article. KAT-HAR-MUST DET O Article. KAT-SIN-MUST DET 25a Article. MU-OL-IC-20-1 DET 25b Article. MU-OL-IC-20-2 Article. Article. KI-KERL-12-RV4 KI-USA-ICO-226 L=~9.85" Bit PH2 Torx bits T10 T15 T20 T25 ~320 x240...
- Page 9 CL5G Outdoor Sauna 63D" x 81W" x 83H" Exterior...
- Page 10 CL5G Outdoor Sauna 63D" x 81W" x 83H" Diagonal measurements should be equal! 8x M 4x DET 2 inch=inch 2x DET 1 8x M Top view. inch=inch 2x DET W 3.94" Top view. 4x M 3.94" Side view. DET 3 3.94"...
- Page 11 CL5G Outdoor Sauna 63D" x 81W" x 83H" 28x M 3.94" Use rubber mallet! Side view. 3.94" Use rubber mallet! Side view. Fix screws over the one board, diagonally in every board. Fix DET 3/H with Top view. Top view. four screws.
- Page 12 CL5G Outdoor Sauna 63D" x 81W" x 83H" Front glass-wall assembly Inside Attention! Place backside up! Outside Marking to bottom 4x DET V Outside will have an extra notch around the edge. Top view min.1" 16x J Top view min.1" min.0.79"...
- Page 13 CL5G Outdoor Sauna 63D" x 81W" x 83H" Wooden back wall assembly 2x H Pre-drill holes 5/32" before screws. DET U2 4x I...
- Page 14 CL5G Outdoor Sauna 63D" x 81W" x 83H" DET U1 inside Use waterlevel inch=inch Make sure the marking on the Sauna wall is centered in the notch. midpoint 2x H...
- Page 15 CL5G Outdoor Sauna 63D" x 81W" x 83H" Use waterlevel 4x H DET 3 Fix temporarily to support walls. DET U2 inside Make sure the marking on the wall is centered in the notch. 2x H...
- Page 16 CL5G Outdoor Sauna 63D" x 81W" x 83H" Remove DET 3 from their temporary positions and use during the next step. ~1/4" Use rubber mallet! Important! DET 3 Leave space. IMPORTANT! Be sure to leave a 1/4” gap when tightening screws to leave room for adjustment when the outer bands (A2) are installed.
- Page 17 CL5G Outdoor Sauna 63D" x 81W" x 83H" DET 6/6c DET 3 DET 3 If needed, trim the flat edge of the board to create the desired width. Join boards together (as shown in diagram III) that will bridge the width of the "A" gap. It is recommended that the combined boards are approximately 1/4"...
- Page 18 CL5G Outdoor Sauna 63D" x 81W" x 83H" Place ratchet strap near the ends of the boards. Pay attention to measurement. Then remove screws. Remove screws. min.2,36" Side view. Don´t fix nuts very DET A2 Don´t fix nuts very tightly yet! DET A2 tightly yet! 1xDET A2...
- Page 19 CL5G Outdoor Sauna 63D" x 81W" x 83H" Place ratchet strap near the ends of the boards. Pay attention to measurement. Then remove screws. Remove screws. min.2,36" Side view. Now fix all nuts tightly and DET A2 DET A2 Now fix all nuts tightly! remove ratchet strap! 1xDET A2 DET A1...
- Page 20 CL5G Outdoor Sauna 63D" x 81W" x 83H" Remove all temporary braces Upper vent 1xDET G 6x K Lower vent 3xDET F 6x K Interior...
- Page 21 CL5G Outdoor Sauna 63D" x 81W" x 83H" Use waterlevel for installation! 2x DET 10a 2x DET 11a 1x DET 10c 12x H Attention! Leave gap min. 1.38" from glass-wall.
- Page 22 CL5G Outdoor Sauna 63D" x 81W" x 83H" 6x H 1x DET 12 1x DET 11 2x H Use pre-drilled hole Use pre-drilled hole Pre-drill holes 5/32" 1x DET 10 2x M Pre-drill holes 5/32" 1x M Don't over tighten. Pre-drill holes 5/32"...
- Page 23 CL5G Outdoor Sauna 63D" x 81W" x 83H" Pre-drill holes 5/32" Pre-drill holes 5/32" 1x DET 14 3x H 4x H Pre-drill holes 5/32" 2x DET 10b...
- Page 24 CL5G Outdoor Sauna 63D" x 81W" x 83H" Attention! Place door 2x M from inside out. 1x DET 21 Attention! The door must open outwards. If you need the door handle to be 2x DET 21c on the opposite side, 2x DET 21d rotate door 180 degrees.
- Page 25 CL5G Outdoor Sauna 63D" x 81W" x 83H" Please be careful!!! Do not hit the glass with the screw. ATTENTION! 1x DET 16 Leave ~0.2". gap from board Fasten the screws HEATER GUARD MAY NOT MEET THE SAFETY end coming into contact with at a slight angle.
- Page 26 CL5G Outdoor Sauna 63D" x 81W" x 83H" ~39.4" 2x DET 22 4x H 4x H...
- Page 27 CL5G Outdoor Sauna 63D" x 81W" x 83H" Underlay felt installation manual. Attention! Refer to underlay installation manual provided in package. Cut off Remove Proceed same way bottom film first. ~2" as shown in diagram I Cut and ~2" over the edge. remove top film over the edge.
- Page 28 CL5G Outdoor Sauna 63D" x 81W" x 83H" DET N Attention! Refer to shingle installation manual provided in package. End view. End view. End view. ~0.35" ~0.35" Attention! Refer to shingle installation Shingles overlap manual provided in package. on top Attention! Refer to shingle installation Refract DET N manual provided in package.
- Page 29 CL5G Outdoor Sauna 63D" x 81W" x 83H" 4xDET 25a 4xDET 25b 4xDET 25a 4xDET 25b 28x H 28x H...
