aFe Power Momentum ST 50-40005D Instruction Manual

Cold air intake system

Advertisement

Quick Links

advanced FLOW engineering
Instruction Manual
Make: Ford
Make: Ford
P/N: 50-40005D / 50-40005R
Model: F-150
Year: 2017-2019
Model: F-150
Year: 2018-2019
®

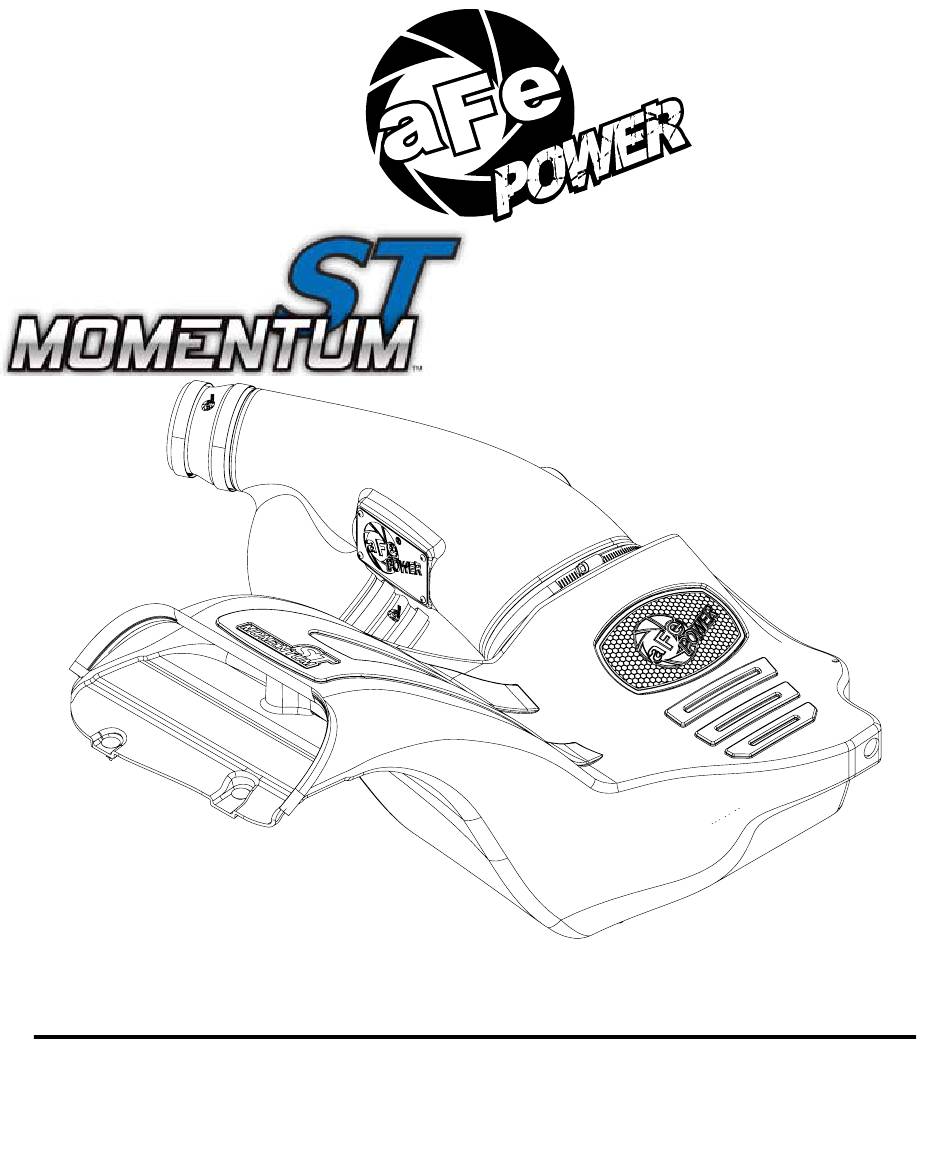

Momentum ST Cold Air Intake System
Engine: V6-3.5L (tt) EcoBoost
Engine: V6-2.7L (tt) EcoBoost

Advertisement

loading
Need help?

Need help?

Do you have a question about the Momentum ST 50-40005D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for aFe Power Momentum ST 50-40005D

  • Page 1 ® advanced FLOW engineering Momentum ST Cold Air Intake System Instruction Manual P/N: 50-40005D / 50-40005R Make: Ford Model: F-150 Year: 2017-2019 Engine: V6-3.5L (tt) EcoBoost Make: Ford Model: F-150 Year: 2018-2019 Engine: V6-2.7L (tt) EcoBoost...
  • Page 2 ® • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7100. • Ensure you have all necessary tools before proceeding. •...
  • Page 3 A1/A2/A3 aFepower.com Page 3...
  • Page 4 ® REMOVAL Figure A Refer to Figure A for Steps 1-2 Step 1: Unplug temp sensor harness 1 from the back side of the intake tube. Unclip the coolant line from the intake tube. Step 2: Loosen the clamps 2 on the intake tubes. Unclip the top of the air box 3 and remove the tube, air filter and top of the air box from the vehicle.
  • Page 5 REMOVAL Refer to Figure B for Steps 3-5 Step 3: Unclip the wire from the back of the air box. Step 4: Remove the wastegate accuator from the housing. Step 5: Remove the screw 4 and the two plastic rivets 5 securing the housing, then pull the factory air box out of the truck.
  • Page 6 ® REMOVAL Vent insert installation: Figure C Refer to Figure C for Step 6 (These procedures should be done with the inlet tubes installed on the engine. It is shown off the vehicle for better illustration.) Step 6: Locate the o.e. plastic tube feeding the driver’s side turbo inlet. Page 6...
  • Page 7 REMOVAL Figure D Refer to Figure I for Step 7 Step 7: Locate the valve cover vent tube that feeds into driver’s side turbo inlet. It is not necessary to remove the engine cover. aFepower.com Page 7...
  • Page 8 ® REMOVAL Figure E Refer to Figure E for Step 8 Step 8: Note the release clip on the vent tube connectors. Apply pressure against the exposed tail and pull vent fitting off of the turbo inlet tube. It is not necessary to disconnect at the valve cover end.
  • Page 9 INSTALL Figure F Refer to Figure F for Step 9 Step 9: Insert vent fitting with slash cut facing turbo inlet. It should not be a loose fit. It is direction dependent and must not rotate once installed. aFepower.com Page 9...
  • Page 10 ® INSTALL INSTALL Figure G Refer to Figure G for Steps 10-11 Step 10: Reconnect the vent fitting. It will snap over without having to release the plastic clip. Pull up slightly to confirm installation. Step 11: Installation is complete. Any codes can be cleared with a code reader or by disconnecting the battery.
  • Page 11 INSTALL Figure H Refer to Figure H for Steps 12-13 Step 12: Transfer the grommet 6 from the factory air box to the aFe air box. Step 13: Install the furnished seal trim 7 on the top edge of the aFe housing. Optional: Drill two small holes in the top of the housing for the wastegate accutator wire harness to clip into.
  • Page 12 ® INSTALL Figure I Refer to Figure I for Steps 14-17 Step 14: Install the aFe housing into the truck by pushing it into the factory mounting grommets. Step 15: Re-install the factory screw 9 removed in Step 5, inside the aFe housing. Step 16: Secure the housing with the two furnished plastic rivets 10 .
  • Page 13 INSTALL Figure J Refer to Figure J for Step 18 Step 18: Slide aFe filter inside the housing and push it in until it locks. aFepower.com Page 13...
  • Page 14 ® INSTALL Figure K Refer to Figure K for Steps 19-21 Step 19: Install grommet into hole in aFe tube then push the aluminum fitting in it. Step 20: Install couplings and clamps onto tube ends. Do not tighten clamps yet. Step 21: Transfer the temperature sensor from the factory intake tube to the new aFe intake tube.
  • Page 15 INSTALL Optional Figure L Refer to Figure L for Steps 22-24 Step 22: Install the aFe tube in the truck by sliding the couplings over the factory tube then the tube end into aFe filter. Step 23: Align tube correctly then tighten all clamps. Step 24: Reconnect the temp sensor harness.
  • Page 16 ® INSTALL Figure M Refer to Figure M for Step 25 Step 25: Make sure all clamps and screws are tight. Remove plastic film from aFe window. Your installation is now complete. NOTE: Check all bolts, clamps, and connectors after 200 miles. Page 16...
  • Page 17 Page left blank intentionally Page 17...
  • Page 18 ® Pro DRY S Air Filter Pro 5R Air Filter PRO GUARD 7 Turbo Downpipes P/N: 48-43020-HC (Street) P/N: 21-91092 P/N: 24-91092 P/N: 72-91092 48-43020-HN (Race) Exhaust System Exhaust System Rear Differential Cover Intercooler w/ Tube P/N: 49-43045-B (Blk. Tips) P/N: 49-43091-B (Blk.
  • Page 19: Warranty

    Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is nontransferable. • Proof of purchase of the aFe product is required for all warranty claims. •...
  • Page 20 ® advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 • TECH: 951.493.7134 E-Mail:Tech@aFepower.com P/N: 06-80953...
