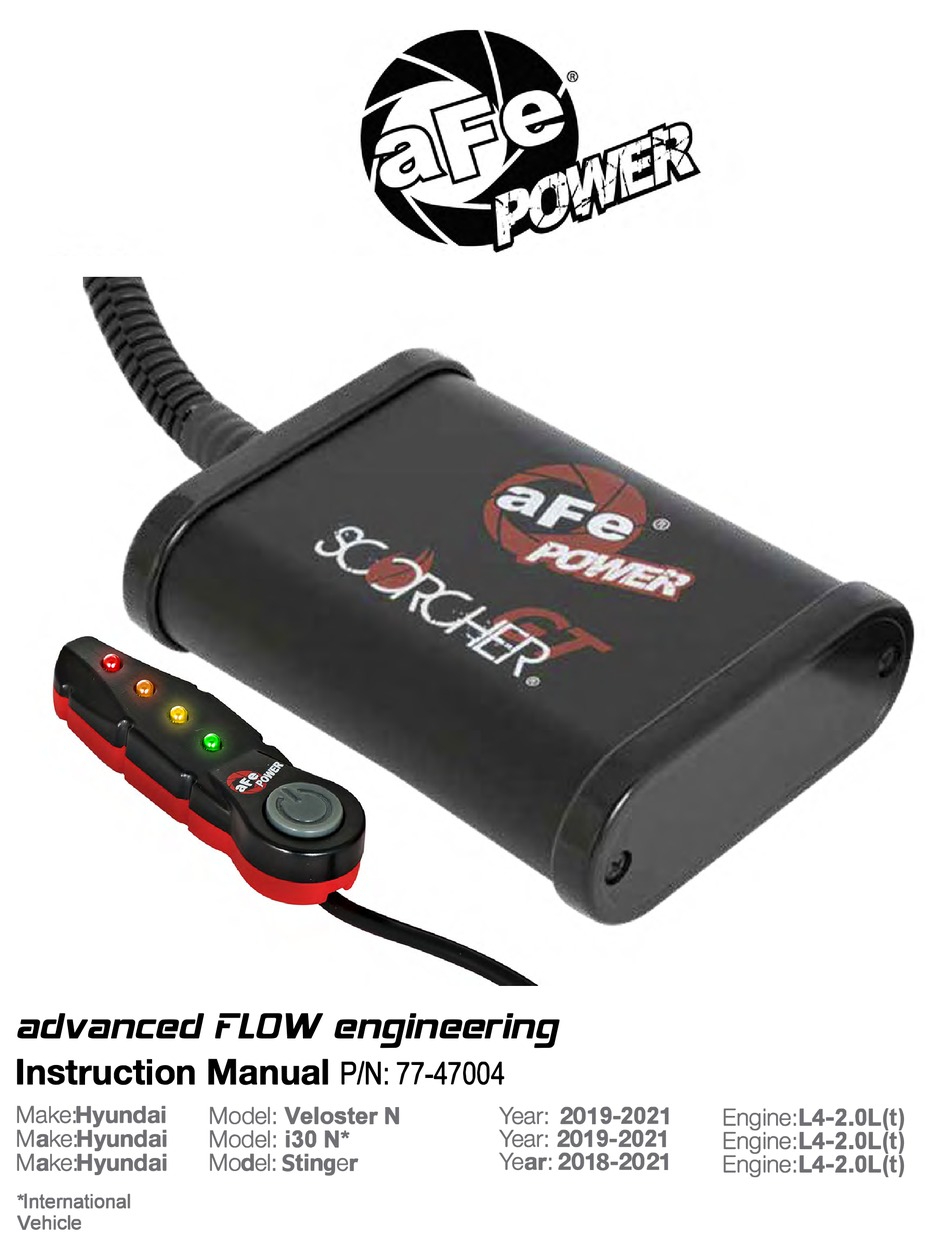

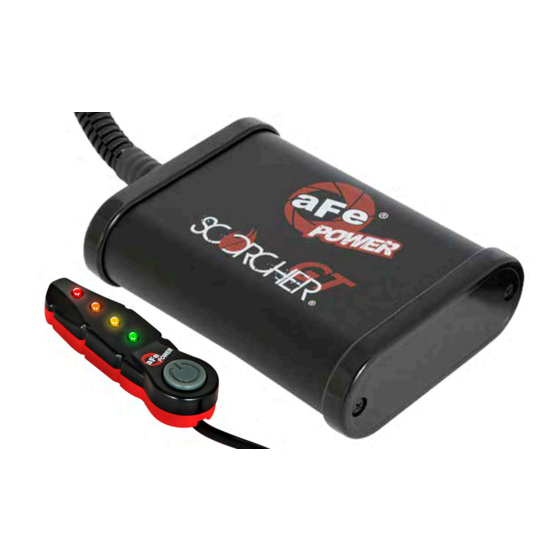

advanced FLDW engineering
Instruction Manual PIN: 77-47004
Make:Hyundai
Make:Hyundai
Make:Hyundai
*International
Vehicle
Model: Veloster N
Model: i30 N*
Model: Stinger
Year: 2019-2021
Year: 2019-2021
Year: 2018-2021
Engine:L4-2.0L(t)
Engine:L4-2.0L(t)
Engine:L4-2.0L(t)

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCORCHER GT 77-47004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for aFe Power SCORCHER GT 77-47004

Summary of Contents for aFe Power SCORCHER GT 77-47004

  • Page 1 advanced FLDW engineering Instruction Manual PIN: 77-47004 Make:Hyundai Model: Veloster N Year: 2019-2021 Engine:L4-2.0L(t) Make:Hyundai Model: i30 N* Year: 2019-2021 Engine:L4-2.0L(t) Model: Stinger Year: 2018-2021 Make:Hyundai Engine:L4-2.0L(t) *International Vehicle...
  • Page 2 Attention: aFe POWER strongly recommends upgrading the factory spark plugs to high performance spark plugs to maintain a stronger, more consistent spark and prevent any damage to your engine. During our testing we used HKS M45XL spark plugs and recommend those spark plugs or equivalent. Alternatively, the factory spark plug gap can be closed to 0.026”...
  • Page 3 aFepower.com Page3...

  • Page 4: Sleep Mode

    REMOVAL SLEEP MODE Figure A Refer to Figure A for Step 1. Step 1: Before installing your aFe module, you will have to place your vehicles ECU in sleep mode. In order to do this you will need to do the following: - If the engine is cold, open the hood, close the doors lock the car and wait 30 seconds.
  • Page 5 Refer to Figure B for Steps 2-3. Step 2: Remove the (2) push clips securing the air scoop and loosen the clamp securing the intake tube to the airbox. Step 3: Remove the (3) 10mm bolts securing the airbox, then pull the airbox out of the vehicle. Page5...
  • Page 6 Refer to Figures C for Step 4. Step 4: Locate the MAP and TMAP sensors. The MAP sensor is on the intake manifold. The TMAP sensor is on the charge pipe, before the throttle body. Page6...
  • Page 7 Refer to Figure D for Steps 5-6. Step 5: Locate then disconnect the MAP sensor connector by pressing down on the locking tab of the connector and sliding it out of the sensor. Step 6: Locate the MAP sensor jumper harness on the aFe module. The harness will be labeled "MAP". Plug the female connector of the module into the factory MAP sensor, then the male connector of the module to the female connector of the engine harness.
  • Page 8 Refer to Figure E for Step 7. Step 7: Check with the pictures to make sure the connectors are correctly connected. Note: Make sure connections are fully engaged. Usually, connectors make a snapping lDsound when fully engaged. Pages...
  • Page 9 Refer to Figure F for Steps 8-9. Step 8: Locate and disconnect the TMAP sensor connector, by pressing down on the locking tab of the connector, and sliding it out of the sensor. Step 9: Locate the TMAP sensor jumper harness on the aFe module. The harness will be labeled "TMAP." Plug the female connector of the module into the factory TMAP sensor, then the male connector of the module to the female connector of the engine harness.
  • Page 10 Refer to Figure G for Step 10. Step 10: Check with the pictures to make sure the connectors are correctly connected. Note: Make sure connections are fully engaged. Usually, connectors make a snapping sound when fully engaged. Page 10...
  • Page 11 Refer to Figure G for Steps 11-12. Step 11 : Carefully route the switch cable behind steering wheel cover. Step 12: Mount the Switch on an open, flat surface Page 11...
  • Page 12 Refer to Figure I for Step 13. Step 13: Remove the (4) 1 0mm bolts securing the TCU under the dash, and gently lower the TCU to gain access to the firewall grommet. Do not unplug the TCU. Note: This step is specific to the vehicles equipped with an automatic transmission, wiring of the switch cable will vary for manual transmission vehicles.
  • Page 13 Refer to Figure J for Step 14. Step 14: Route the switch cable through firewall and into the engine bay. Follow the hood latch cable through the grommet into the firewall. Plug the end of the cable to the module harness. Then reinstall the TCU.
  • Page 14 Refer to Figure K for Steps 15-16. Step 15: Mount the module in a safe location, such as on top of the battery, using the supplied Velcro strip. Then, secure the wires and module away from any extreme heat and moving parts, with the provided ties.
  • Page 15 • Orange LED: Sport+ (91 Octane or Higher is recommended) • Red LED: Race (93 Octane or Higher is recommended) Use the grey button to select the desired setting. Power adjustments can be done at any moment. Thank you for choosing aFe POWER! Page 15...
  • Page 16 Page left blank intentionally Page 16...
  • Page 17 Page left blank intentionally Page 17...
  • Page 18 Takeda Mascot Decal Mid-Pipe Exhaust Cat-Back Exhaust Axle-Back Exhaust P/N: TP-7003D P/N: 49-37007-B P/N: 49-37008-B P/N: 49-37006 Takeda T-Shirt Takeda Decal Takeda Lie. Plate Frame P/N: 40-30332 (M) P/N: TP-7002D P/N: TP-7014F 40-30333 (L) 40-30334 (XL) To purchase any of the items above, view airflow charts, dyno graphs, photos, and video please go to aFepo war.com. Page 18...

  • Page 19: Warranty

    Warranty General Terms: • aFe warrants their products to be free from manufacturer's defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •...
  • Page 20 advanced FLDW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493. 7100 TECH: 951.493. 7134 E-Mail:Tech@aFepower.com P/N: 06-81323...
