- Page 1 Instruction Manual P/N: 77-83043 SCORCHER BLUE POWER MODULE Make: Ford Model: Explorer ST Year: 2020-2021 Engine: V6-3.0L (tt) Ecoboost Make: Ford Model: Explorer Platinum Year: 2020-2021 Engine: V6-3.0L (tt) Ecoboost...
- Page 2 DISCLAIMER OF WARRANTY AND LIMITATION OF LIABILITY: Advanced FLOW Engineering, Inc. (also known as aFe or aFe POWER) and its successors, distributors, jobbers, and dealers (hereafter “SELLER”) shall in no way be responsible for the product’s improper use and service. It is the installer’s responsibility to check for proper installation and if in doubt, contact the manufacturer.

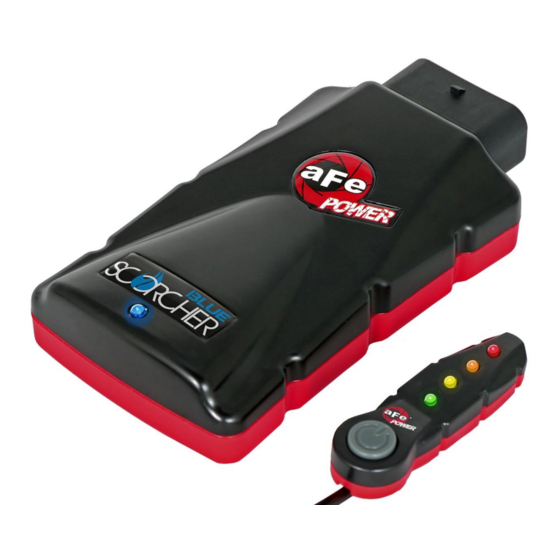

- Page 3 Label Qty. Description Part Number Module R77-83043 LED Switch 05-70029 Bypass Plug 05-70017 Harness AFE-10-250 Velcro (2” Inches) 05-01244 Cable Ties 05-60167 Double Sided Tape 07-90001 Page 3...
- Page 4 Figure A Refer to Figure A for Step 1 Step 1: Before installing your aFe POWER module, you will have to place your vehicle’s ECU in sleep mode. In order to do this, you will need to do the following: •...
- Page 5 REMOVAL T-MAP Sensor Jumper Harness Male Connector-To engine harness Power and Ground Connectors-To Battery Female Connector-To T-MAP Sensor Female Connector-To MAP Sensor Male Connector-To engine harness MAP Sensor Jumper Harness Figure B Refer to Figure B for Step 2 Step 2: Refer to the diagram to identify the connectors and their corresponding sensors that they plug into. •...
- Page 6 REMOVAL MAP Sensor Location T-MAP Sensor Location Figure C Refer to Figure C for Steps 3-5 Step 3: See picture for the locations of the MAP and T-MAP sensors. Step 4: The MAP sensor is located on top of the intake manifold, in the middle of the engine bay. It has a 4- wires connector and a white locking tab.
-
Page 7: Map Sensor
REMOVAL MAP Sensor Figure D Refer to Figure D for Step 6 Step 6: Disconnect the MAP sensor by pulling back the white locking tab, then pressing down on the connector and sliding it out of the sensor. Page 7... - Page 8 Figure E Refer to Figure E for Steps 7-9 Step 7: Locate the MAP sensor jumper harness on the aFe POWER harness. It is the first, shorter set of connectors coming out of the aFe Power module. It is labeled “MAP”.
-
Page 9: T-Map Sensor
REMOVAL T-MAP Sensor Figure F Refer to Figure F for Steps 10-11 Step 10: The T-MAP connector can be accessed by reaching underneath the frame rail. It is located on the driver side charge pipe towards the top. Step 11: Disconnect the T-MAP sensor by pulling back the white locking tab, then pressing down on the connector and sliding it out of the sensor. - Page 10 Figure G Refer to Figure G for Steps 12-14 Step 12: Locate the T-MAP sensor jumper harness on the aFe POWER harness. It is the longer, second set of connectors coming out of the aFe Power module. It is labeled “T-MAP”.
- Page 11 Step 16: Connect the black ground terminal cable of the aFe POWER module harness to the negative battery terminal. Step 17: Connect the red power terminal cable of the aFe POWER module harness to the positive battery terminal. If the vehicle needs to be jump-started, the module will have to be disconnected from the harness, and the bypass plug installed in place of the module.
- Page 12 Step 19: For our installation, we found the best location to be on top of the fuse box located on the driver side of the vehicle. Secure the Scorcher Blue module in this location using the supplied velcro. Step 20: Connect the aFe POWER harness to the Scorcher Blue module, making sure that the retaining tab clicks into place.
- Page 13 INSTALL Figure J Refer to Figure J for Steps 22-23 (Optional) Step 22: Select the desired location for the LED switch. Route the cable on the back of the switch to exit towards the top or the bottom of the switch. Step 23: Use the provided double sided tape to secure the LED switch in the desired location.
- Page 14 INSTALL Figure K Refer to Figure K for Steps 24-26 (Optional) Step 24: Carefully route the switch cable behind the steering wheel cover or cabin trim cover. For the cleanest install, partially remove the cabin trim cover and run the LED swith wire between the trim panels. Step 25: Locate the engine bay wiring access slot below the driver side kick panel.
- Page 15 Refer to Figure L for Steps 27-28 (Optional) Step 27: Plug the end of the LED switch cable to the aFe POWER harness inside the engine compartment. Step 28: Secure all wires away from any extreme heat and moving parts with the provided zip ties. Make sure all connections are secured and fully engaged.
- Page 16 Figure M Refer to Figure M (Picture is for reference) The blue LED light will start flashing once the module is connected to the car and the ECU is on. The blue LED will become solid if the module gets connected through Bluetooth to a device Page 16...
- Page 17 Figure N Refer to Figure N (LED Switch) When turning on the vehicle, each LED will flash, and it will stop at its last setting. The LED on the switch represents the different levels of power. • Green LED: Stock •...
- Page 18 Figure O Refer to Figure O* (app connection-iOS) For iOS devices, download the app from the apps store. Make sure the Bluetooth is activated on your device. Open the app and it will automatically connect through Bluetooth to the SCORCHER BLUE module when both the vehicle and module are on. When connected, the vehicle description will appear on top of the screen and the gauges will show current data.
- Page 19 Figure P Refer to Figure P* (app connection-Android) For Android devices, download the app from the play store. For the initial connection, go to the Bluetooth settings of your device, turn on Bluetooth and scan for available devices. Select “aFe SCOR” and pair with device. The vehicle needs to be on and the module connected.
- Page 20 Figure Q Refer to Figure Q (Custom Tuning) The aFe POWER SCORCHER BLUE app offers the capability to custom tune the different modes. Go to the menu on the top right corner and select “Tune”. Select the mode you would like to custom tune and adjust the sliders at low, medium, and high load.
- Page 21 Use the aFe POWER SCORCHER BLUE app responsibly. Always drive safely and obey traffic laws. aFe POWER is not responsible for any accidents, injuries, or property damage that may occur during its use.
- Page 22 Make sure the plug is fully engaged when connected to the harness. Thank you for choosing aFe POWER! The vehicle needs to be in sleep mode when the module gets disconnected and the bypass plug connected.
- Page 23 Page left blank intentionally. Page 23...
- Page 24 Page left blank intentionally. Page 24...
- Page 25 Page left blank intentionally. Page 25...
