Summary of Contents for Exsys EX-1234HMVS

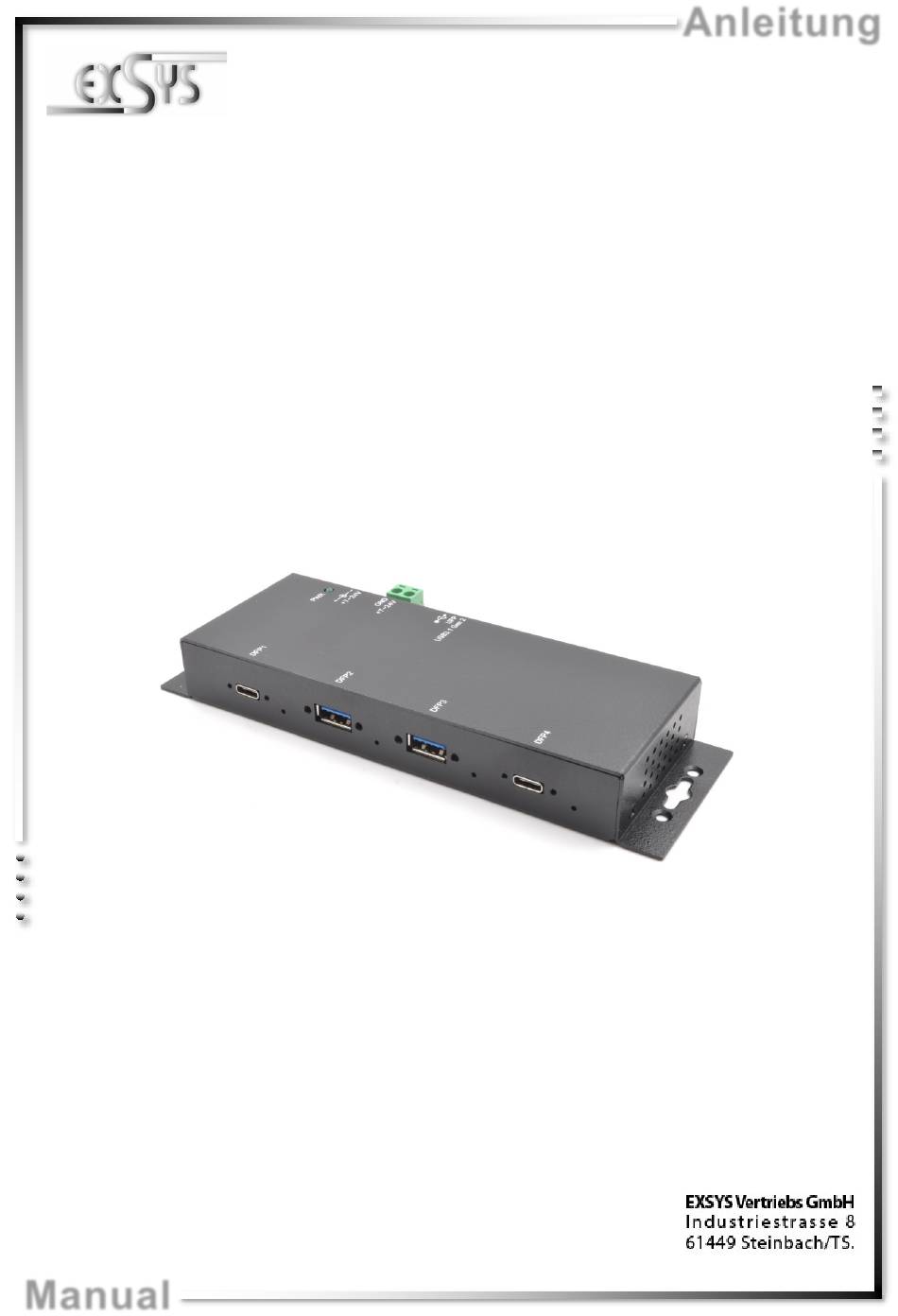

- Page 1 Anleitung EX-1234HMVS 4 Port USB 3.2 (Gen2) Metall HUB mit 1,5A Strom pro Port und 15KV ESD Überspannungsschutz 4 Port USB 3.2 (Gen2) Metal HUB with 1,5A power for each port and 15KV ESD Surge Protection Vers. 1.0 / 08.07.20...
-
Page 2: Table Of Contents
3.1 Layout ····································································································· 10 3.2 Connections ························································································ 10-11 3.3 Jumper Settings ························································································ 12 Hardware Installation ··········································································· 13 Driver Installation ················································································ 13 Cleaning ··························································································· 13 Technical Information ·········································································· 14 Technical Drawing ·············································································· 14 © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1234HMVS ist ein USB 3.2 (Gen2) Metall HUB für bis zu 4 Endgeräte. Der Hub ist mit 2 USB A-Ports & 2 USB C-Ports für Endgeräte und 1 USB C-Port für den An- schluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.2. -
Page 4: Aufbau, Anschlüsse & Jumper Einstellungen
Lieferumfang externes Netzteil enthaltenem Netzteil 3.2 Anschlüsse +7V - 24V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +7V - 24V © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Anschlüsse
StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. USB 3.2 (Gen2) C-Buchse: Hinweis! Durch die Doppelbelegung der Pins, kann der USB Typ-C Stecker beidseitig in die Buchse gesteckt werden. © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 6: Jumper Einstellungen
3.3 Jumper Einstellungen Der EX-1234HMVS wird mit der Einstellung Bus-Power ausgeliefert. Sie haben aber die Möglichkeit den EX-1234HMVS auf der Datenleitung zum PC sprich die USB C- Buchse stromlos zu machen. Dafür müssen Sie zu erst das Gehäuse mit den vier Schrauben auf den Seiten öffnen. -
Page 7: Hardware Installation
Tuch und entfernen Sie die Verschmutzung mit leichtem Druck. Im Bereich der Anschlüsse bitte darauf Achten, dass keine Fasern des Tuchs in der Buchse hinterlas- sen werden. Verwenden Sie bitte zu Reinigung in keinem Fall ein feuchtes oder nasses Tuch! © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +24 Volt Abmessung: 178,60 x 68,90 x 23,20 mm Gewicht: 650g 8. Technische Zeichnung © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description

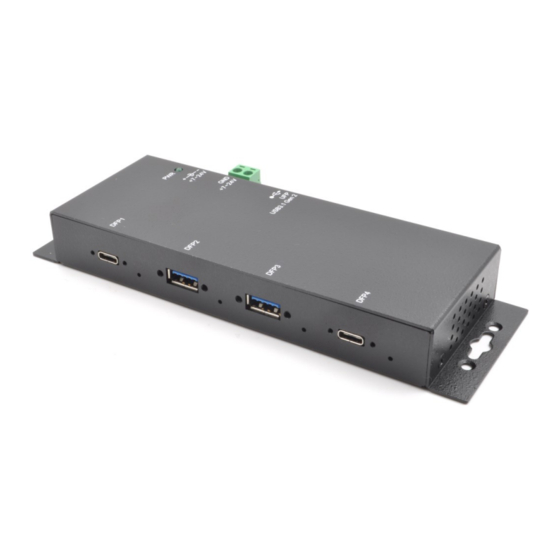

English 1. Description The EX-1234HMVS is a plug & play high-speed USB 3.2 (Gen2) metal hub for 4 USB devices. The EX-1234HMVS provides 2 USB A-Ports & 2 USB C-Ports for USB devices and 1 uplink USB C-Port for PC. It supports all USB connections from 1.1 to 3.2. All ports can fix with screw lock. -
Page 10: Layout, Connections & Jumper Settings
Power Supply Power Supply 3.2 Connections +7V - 24V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 24V © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Connections
Never plug in with force or in wrong direction. USB 3.2 (Gen2) C-Port: Note! By dual assignment of the pins, the USB Type-C plug can be plugged into the port on both sides. © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Jumper Settings
EX-1234HMVS 3. Layout, Connections & Jumper Settings 3.3 Jumper Settings The EX-1234HMVS will be delivered with the setting Bus-Power. But you have the possibility to cut the power at the data line. For this you open the case with the four screws on both sides. -
Page 13: Hardware Installation
In the area of the connectors please make sure that no fibres from the cloth re- main in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Technical Information
32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +24 Volt Size: 178,60 x 68,90 x 23,20 mm Weight: 650g 8. Technical Drawing © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
