RAK7268 Quick Start Guide
Prerequisites
What Do You Need?
1. RAK7268/RAK7268C WisGate Edge Lite 2
2. Ethernet Cable (RJ-45 Port) – for Ethernet connection
3. A Windows/MacOS/Linux computer
⚠
WARNING
The SIM card slot of the cellular versions is not hot-swappable. Make sure the gateway is switched off
before inserting or ejecting the SIM card.
Product Configuration
Power on the Gateway
1. Attach the LoRa Antenna.
First and foremost, screw on the antenna to the RP-SMA connector on the back panel of the RAK7268/C WisGate
Edge Lite 2.
WARNING
⚠
Do not power the device if the LoRa Antenna port has been left open to avoid potential damage to the
RAK7268/RAK7268C WisGate Edge Lite 2.
2. Power the gateway ON.
It is recommended to use the 12 V DC adapter that comes with the RAK7268/RAK7268C WisGate Edge Lite 2.
Optionally, you can use your own PoE cable and injector since the device supports PoE.
Casing and Ports
Figure 1: RAK7268/C WisGte Edge Lite 2 Top View
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RAK RAK7268C
Summary of Contents for RAK RAK7268C
- Page 1 RAK7268/RAK7268C WisGate Edge Lite 2. 2. Power the gateway ON. It is recommended to use the 12 V DC adapter that comes with the RAK7268/RAK7268C WisGate Edge Lite 2. Optionally, you can use your own PoE cable and injector since the device supports PoE.
-
Page 2: Status Led Indicators

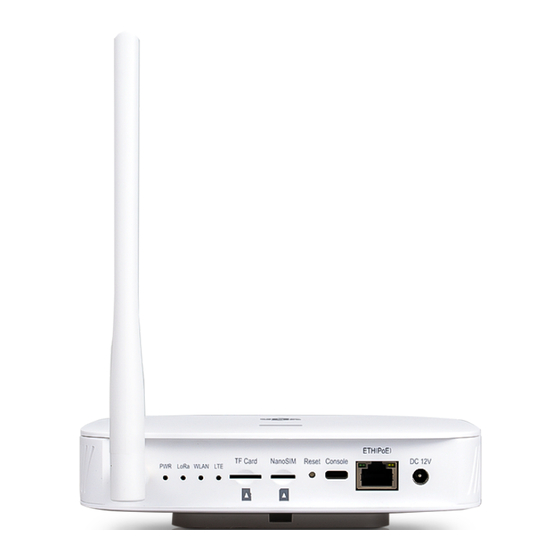

Documentation Center Figure 2: RAK7268/C WisGate Edge Lite 2 Back Panel Status LED Indicators... - Page 3 In this section, several ways of accessing the gateway are provided to have different alternatives for you to choose from depending on the availability of the requirements needed. WARNING ⚠ Do not power the device if the LoRa Antenna port has been left open to avoid potential damage to the RAK7268/RAK7268C WisGate Edge Lite 2. Wi-Fi AP Mode...
- Page 4 Documentation Center By default, the gateway will work in Wi-Fi AP Mode which means that you can find an SSID named RAK7268_XXXX on your PC's Wi-Fi Network List. XXXX is the last two bytes of the gateway's MAC address. NOTE: No password is required to connect via Wi-Fi Using your preferred Web browser, log in with the credentials provided below: Browser Address: 192.168.230.1...
- Page 5 Documentation Center Figure 4: Connect through Wi-Fi Credentials NOTE: Assuming you have entered the correct parameter values you should get an IP address assigned by your Wi-Fi router's (AP) built-in DHCP server. You can use this new IP address to log in via a web browser (same way as in AP mode).
