Industrial LoRa Micro Gateway RAK7258 Quick Start Guide www.rakwireless.com info@rakwireless.com... - Page 2 First Time Power Up Step 1: Attach the antenna First and foremost screw on the antenna to the SMA connector on the front panel of the gateway. Note: Do not power the device if the antenna port has been left open (not connected to the antenna).
- Page 3 Step 4: Connecting the Gateway to TTN The Gateway EUI can be found via the Overview page in the Web UI. Go to your TTN console (you need to register an account first) and register your new gateway using the link below: https://console.thethingsnetwork.org/gateways/register Make sure to select the “I’m using the legacy packet forwarder”...

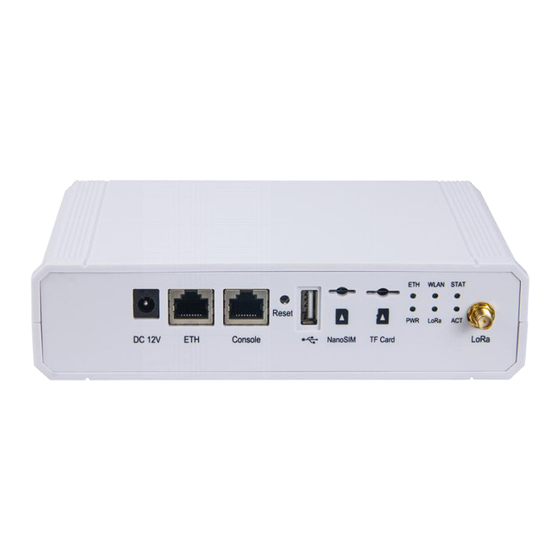

- Page 4 Package Content Gateway Device LoRa Antenna Tapping Screws Screw Anchors Power Adapter Casing and Ports...
- Page 5 Status LEDs LEDs Status Indication Power Indicator, LED is on when the device is powered ON - link is up OFF - link is down Flashing - Data is being transferred ON - LoRa module status is up OFF - LoRa module status is down LoRa Flashing - LoRa module data is being transferred Reserved for future use...
- Page 6 Wall Mounting Step 1: Use a 5mm drill bit to drill 2 holes on a wall. Follow the dimensions on the image as a guideline for spacing the holes. When done insert the screw anchors into the wall. 100mm Step 2: Install the screws into the wall, leaving about 3mm of clearance.
- Page 7 Step 3: Insert the screw heads into the hanging holes located on the gateway back plate, then gently pull down to complete the installation. Contact Us Support center: https://forum.rakwireless.com/ Email us: info@rakwireless.com...
