Quick Start Guide
Prerequisites
What Do You Need?
1. RAK7268/RAK7268C WisGate Edge Lite 2
2. Ethernet Cable (RJ-45 Port) – for Ethernet connection
3. A Windows/MacOS/Linux computer
Product Configuration
Power on the Gateway
1. Attach the LoRa Antenna.
First and foremost, screw on the antenna to the RP-SMA connector on the back panel of the RAK7268/C WisGate
Edge Lite 2.
⚠ WARNING
Do not power the device if the LoRa Antenna port has been left open to avoid potential damage to the
RAK7268/RAK7268C WisGate Edge Lite 2.
2. Power the gateway ON.
It is recommended to use the 12 V DC adapter that comes with the RAK7268/RAK7268C WisGate Edge Lite 2.
Optionally, you can use your own PoE cable and injector since the device supports PoE.
Casing and Ports

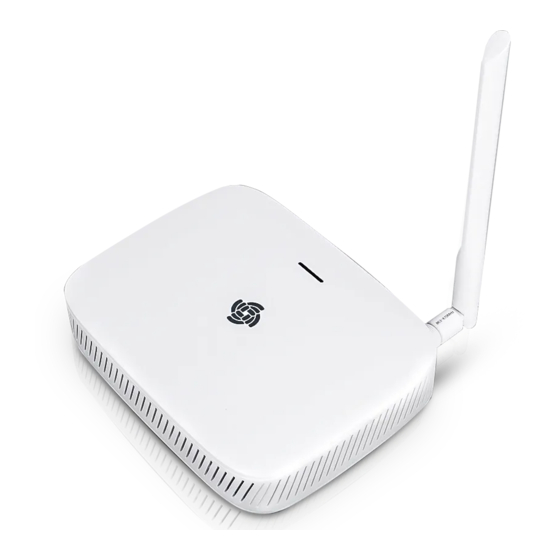

Figure 1: RAK7268/C WisGte Edge Lite 2 Top View
