RAK7267 Quick Start Guide
Prerequisites
What Do You Need?
1.
RAK7267 WisGate Soho Pro
2. A Windows/Mac OS/Linux Computer
⚠
WARNING
The SIM card slot of the gateway is not hot-swappable. Make sure that the gateway is switched off
before inserting or ejecting the SIM card.
The SD card found in the SD card slot must not be ejected, doing so might affect the performance of the
device, as different logs and data are stored on it.
What is Included in the Package?
Product Configuration
Installation
Insert SIM Card
If you will use a cellular network connection on your gateway, you can refer to this section. Otherwise, skip it.
1. Start by removing the cover of the NanoSIM interface on the gateway Unify enclosure to expose the SIM card
slot

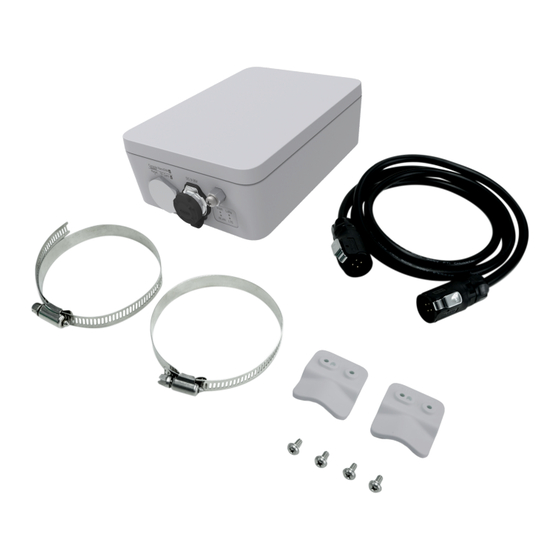

Figure 1: RAK7267 package contents

Advertisement

loading
Need help?

Need help?

Do you have a question about the RAK7267 and is the answer not in the manual?

Questions and answers

Related Manuals for RAK RAK7267

Summary of Contents for RAK RAK7267

  • Page 1 The SD card found in the SD card slot must not be ejected, doing so might affect the performance of the device, as different logs and data are stored on it. What is Included in the Package? Figure 1: RAK7267 package contents Product Configuration Installation Insert SIM Card If you will use a cellular network connection on your gateway, you can refer to this section.

  • Page 2: Pole Mounting

    Documentation Center Figure 2: SIM card slot 2. Push the SIM card into the card slot according to the placement method marked on the interface. Figure 3: Inserting SIM card 3. Once completed, seal the interface cover. Pole Mounting This section provides the instructions on mounting and securing the mounting kit to the enclosure and the mounting pole.

  • Page 3: Lightning Protection

    For outdoor deployment scenarios, it is recommend to use the RAK solar battery system for power supply. RAK7267 supports RAK9155 solar battery system as its power supply. To install the solar battery kits, you can refer to the RAK9155 Quick Start Guide.
  • Page 4 Connect Wi-Fi For RAK7267, you need to access the gateway through Wi-Fi AP Mode. By default, the gateway will work in Wi-Fi AP Mode, which means that you can find an SSID, named RAK7267_XXXX on your PC's Wi-Fi Network List.

  • Page 5: Set Login Password

    Documentation Center Set Login Password 1. For security reasons, upon the first log in, you must set a login password. This is done by filling in the desired password and confirming it in the provided fields. The password must meet the following requirements: At least 12 characters long.

  • Page 6: Access The Internet

    Documentation Center Figure 11: Login Page with set password Access the Internet Connect Through Wi-Fi Figure 12: Accessing the Internet using Wi-Fi 1. Access the gateway's Web UI. Navigate to Network > WAN > Wi-Fi. Expand the Wi-Fi block and click on Settings.
  • Page 7 Connect Through Cellular RAK7267 supports cellular connection. Make sure you have inserted a SIM card before using the cellular network. 1. Access the gateway's Web UI. Navigate to Network > WAN > Cellular. Expand the Cellular block and click on Settings.
  • Page 8 Documentation Center 2. If necessary, you can configure the following parameters based on the information provided by the network operator. Figure 15: Cellular settings Last Updated: 6/27/2024, 9:10:19 PM...
