Quick Start Guide
Prerequisites
What do you need?
1. RAK7258 WisGate Edge Lite
2. Ethernet Cable (RJ-45 Port)
3. A Windows/Mac OS/Linux Computer
What's included in the Package?
Product Configuration
Wall Mounting Guide
1. Use a 5-millimeter drill bit to drill 2 holes on a wall. Follow the dimensions on the image as a guideline for
spacing the holes. When done insert the screw anchors into the wall.
2. Install the screws into the wall, leaving about 3-millimeters of clearance.

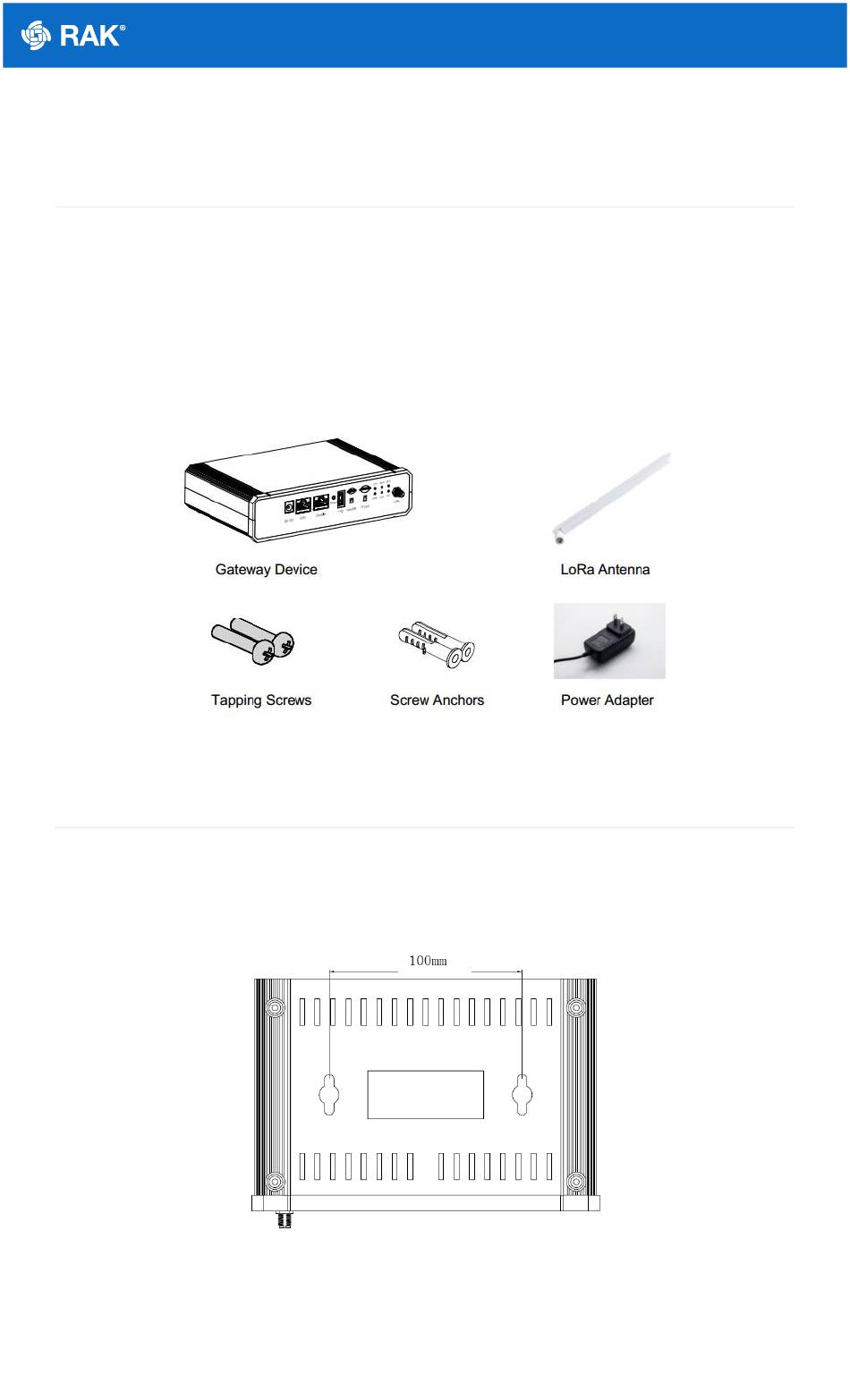

Figure 1: RAK7258 Package Contents
Figure 2: RAK7258 WisGate Edge Lite Bottom Panel
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RAK WisGate Edge Lite RAK7258
Summary of Contents for RAK WisGate Edge Lite RAK7258
- Page 1 Documentation Center Quick Start Guide Prerequisites What do you need? 1. RAK7258 WisGate Edge Lite 2. Ethernet Cable (RJ-45 Port) 3. A Windows/Mac OS/Linux Computer What's included in the Package? Figure 1: RAK7258 Package Contents Product Configuration Wall Mounting Guide 1.
- Page 2 Documentation Center Figure 3: RAK7258 WisGate Edge Lite Wall Screw Arrangement 3. Insert the screw heads into the hanging holes located on the gateway back-plate, then gently pull down to complete the installation Figure 4: RAK7258 WisGate Edge Lite Wall Attachment Guide Power on the Gateway 1.
- Page 3 Documentation Center Figure 5: RAK7258 WisGate Edge Lite Back Panel Status LED Indicators LEDs Status Indication Power Indicator, LED is on when the device is powered ON– link is up, OFF – link is down, Flashing – Data is being transferred ON - LoRa module status is up, OFF –...
- Page 4 Documentation Center ⚠ WARNING Do not power the device if the LoRa Antenna port has been left open to avoid potential damage in the RAK7258 WisGate Edge Lite." Wi-Fi AP Mode By default, the Gateway will work in Wi-Fi AP Mode which means that you can find an SSID named like "RAK7258_XXXX"...
- Page 5 Documentation Center Figure 7: Connect through Wi-Fi Credentials NOTE: Assuming you have entered the correct parameter values you should get an IP address assigned by your Wi-Fi router's (AP) built-in DHCP server. You can use this new IP address to log in via a web browser (same way as in AP mode).
- Page 6 Documentation Center Figure 9: The Things Network Home Page 1. In the Register Gateway menu, select the “I’m using the legacy packet forwarder” option, and fill-in the Gateway EUI. Figure 10: Registering your Gateway NOTE: The Gateway EUI can be found either on the sticker on the casing or via the LoRa Packet Forwarder page in the LoRa Gateway menu once you log via the Web UI.
- Page 7 Documentation Center Figure 11: Gateway successfully connected to The Things Network (TTN) NOTE: By default, the Gateway is set to connect to TTN. For detailed information about advanced configuration options refer to the WEB Management Platform - LoRa Network section. Last Updated: 9/13/2020, 2:53:36 PM...
