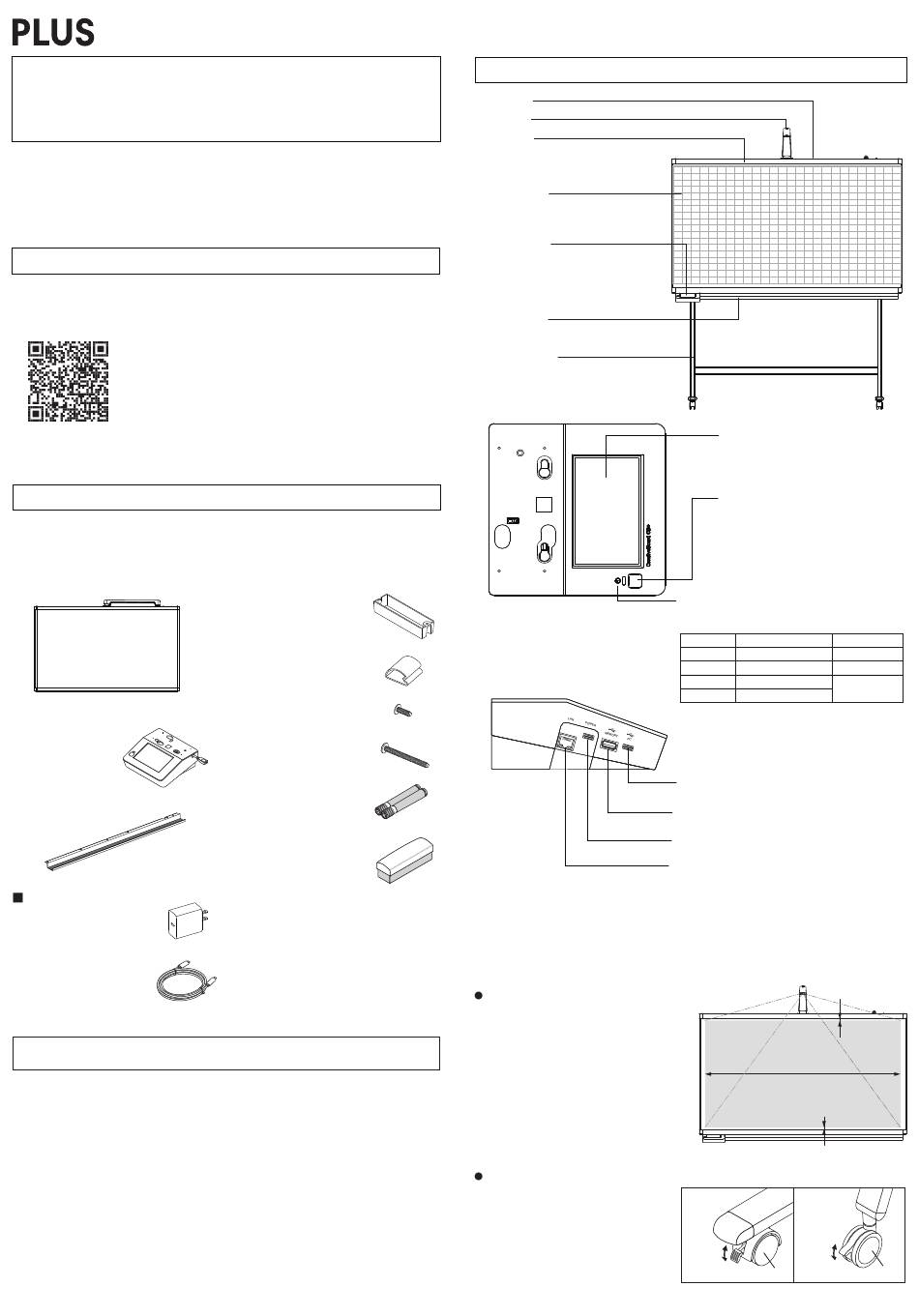

Plus CB+ Preparation Manual

Creative Board CB+
Preparation Guide
This document is the "Preparation Guide" for the Creative Board CB+.
It contains information on:
How to obtain the user manual/Checking included accessories/Component names/Installation
instructions/After-sales service
Please store this guide safely after reading.
How to Obtain the User Manual
The user manual is NOT included in the product packaging.
Before use, scan the QR code below or visit:
https://www.plus-vision.com/en/product/
creativeboard/cbplus/help.html
Confirmation of Main Unit Packaging
This preparation guide only lists the contents of the main unit package.
For other packages, refer to the instructions included with each package.
The contents of the main unit package are as follows. Please check before use.
• Main unit ×1
• Control panel ×1
(attaches to main unit)
• Marker tray ×1
(attaches to main unit)
Accessories:
• USB power adapter ×1
(*For this product only*)
• Power USB cable ×1
(*For this product only*)
User manual is not included. Please refer to "How to Obtain the Owner's
Manual" above.
[ Important
• Cable cover ×1
(covers USB cable between
main unit/control panel)
• Cable clip ×1
(secures power USB cable
to control panel)
• M4×12 tapping screw ×1
(for cable cover)
• M4×40 tapping screw ×1
(for control panel)
• Dedicated markers
(black/red) ×1 each
• 4-sided eraser ×1
(rotate sponge pad when
dirty)
Documents:
•Safety precautions ×1
(Mandatory reading)
•Preparation guide ×1
(this document)
•Warranty card ×1
Component Names
Main Unit
Camera
Frame
Sheet surface
(write/draw using special markers)
Control Panel
]
(power ON/OFF, live streaming, memory
storage)
(Refer to the User Manual for details)
Marker Tray
(Holds markers and the eraser.)
Optional Stand
(Supports the main unit (refer to the
Assembly & Installation Manual).)
Note: Stands are available in T-base and
Y-base configurations.
Notice:
For connection methods of each port, refer to the Appendix in the Assembly/Installation Manual
or User Manual.
Readable Area Specifications
The scannable range is indicated by the
gray-shaded area.
Content drawn outside this area may not
be captured during printing/saving.
Caster Lock/Unlock Mechanism
After installing the unit on the stand:
Lock casters by pressing the lever
downward (prevents movement during
use).
Unlock casters by pushing the lever
upward (enables relocation).
Touch Panel
Operate by touching the screen with
your fingers.
Note: A stylus pen can also be used.
Power Button
Turns the device **ON/OFF**.
To power off: Press and hold the
button.
Note: The touch panel will automatically
enter sleep mode after a period of
inactivity.
Status LED
Indicates the system status through 3 colors or no
light:
LED Color System Status Notes
Off No power
Red Powered off
Green Operational
Do not unplug
power adapter
Orange Sleep mode
[ Ports ]
USB-C (PC connection)
USB-A (external memory)
USB-C (power input)
LAN (RJ-45)
Approximately 5mm
Readable Area
1600mm width × 900mm height
Approximately 5mm
T-Legs
Y-Legs
unlock
unlock
LOCK
LOCK
Casters Casters
