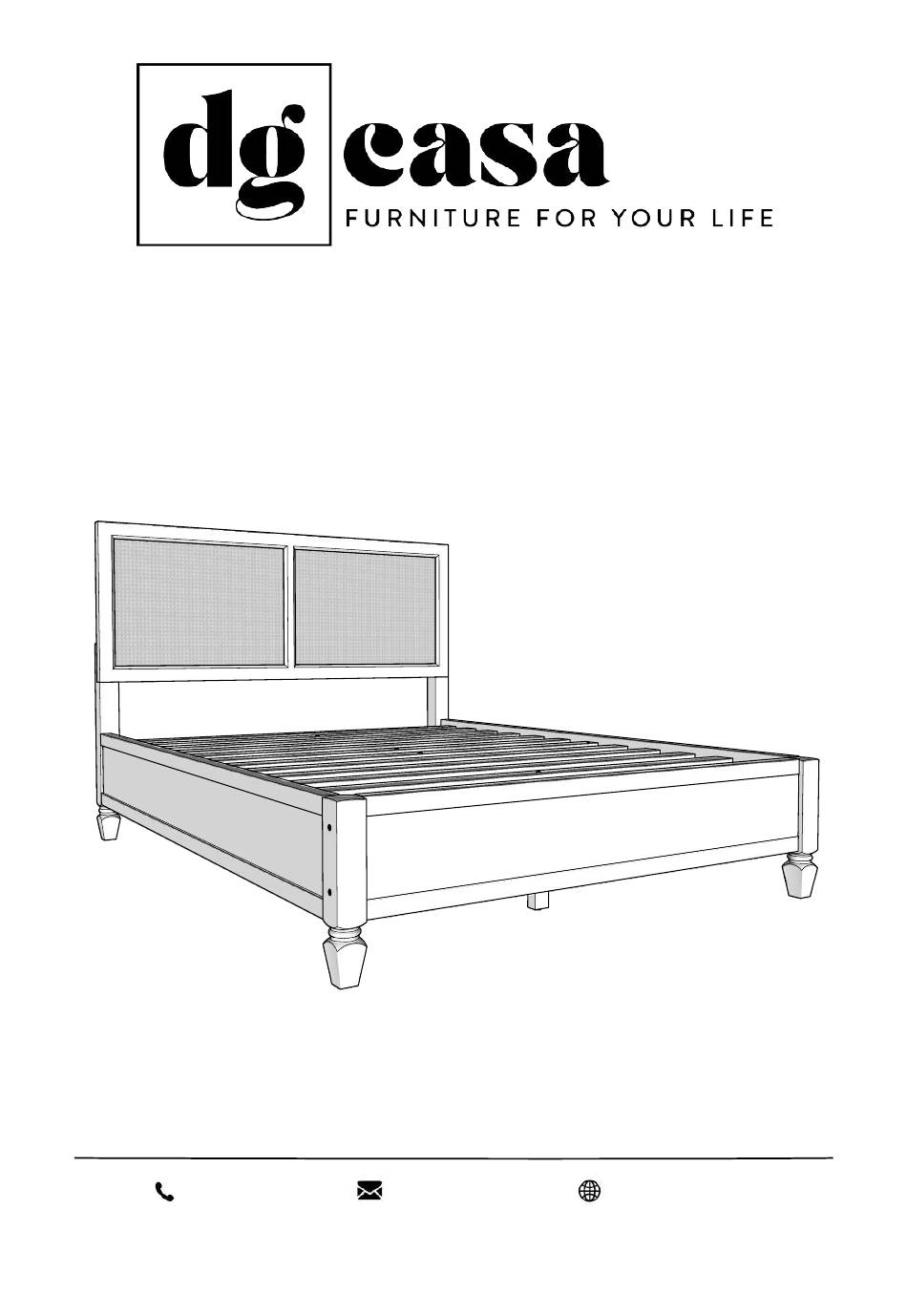

- Page 1 190500-Q 1-866-4-DGCASA service@dgcasa.com www.dgcasa.com...
- Page 2 IMPORTANT INFORMATION Seller and Manufacturer disclaim all and any liability for property damage, personal injury, or loss, direct, indirect, or incidental, resulting from the incorrect assembly, inadequate maintenance, improper use, or neglect of this product. NOTICE Keep these assembly instructions for future reference. �...
- Page 3 BED PARTS Headboard Headboard Post Left Headboard Post Right Footboard Footboard Leg Left Footboard Leg Right Side Rail Slat Support Center Support Leg Bed Slat x 12...
- Page 4 HARDWARE HARDWARE Bolt Bolt x 16 M6 x 90mm M6 x 20mm Bolt Bolt M6 x 60mm M6 x 35mm Flat Washer Barrel Nut Spring Washer x 16 x 16 Screw Dowel Adjustable Feet M4 x 32mm M10 x 40mm Hex Key Wrench...
- Page 5 BED ASSEMBLY STEP 1 Footboard Headboard Headboard Bolt Leg Left Leg Right M6 x 90mm Barrel Nut Dowel Hex Key Philips Screwdriver Wrench M10 x 40mm Not provided & & F NOTE: Adjust Barrel Nut clockwise or counter clockwise to align the Barrel Nut hole Bolt Attach...
- Page 6 BED ASSEMBLY STEP 2 Headboard Headboard Headboard Bolt Post Left Post Right M6 x 35mm Hex Key Wrench & C Attach with using a Hex Key Wrench as shown.
- Page 7 BED ASSEMBLY STEP 3 Side Rail Bolt Spring Washer Flat Washer M6 x 20mm Hex Key Wrench E & F B & C Attached Assembled Headboard and Assembled Footboard to with using an Open End Wrench...
- Page 8 BED ASSEMBLY STEP 4 Bed Slat Slat Support Support Leg Bolt M6 x 60mm Adjustable Hex Key Feet Wrench Note: See Bed Assembly Step 6 to properly adjust part Insert into . Attach with using a Hex Key Wrench as shown.
- Page 9 BED ASSEMBLY STEP 3 Screw Philips Screwdriver M4 x 32mm Not provided Wood Screw location Attach Assembled Bed Slat to Assemble Bed Frame with using a Philips Screwdriver as shown.
- Page 10 BED ASSEMBLY STEP 6 Rotate clockwise or counter clockwise until it is firmly against the floor.
- Page 11 FAQs FREQUENTLY ASKED QUESTIONS WE ARE OPEN MONDAY TO FRIDAY TO ASSIST YOU AND WILL REPLY TO ANY OF YOUR MESSAGES WITHIN 24-48 HOURS. THE AVERAGE RESPONSE TIME IS WITHIN 24 HOURS. IF YOU ENCOUNTER AN ISSUE THAT IS NOT MENTIONED BELOW, PLEASE MESSAGE US IN OUR CONTACT PAGE BY VISITING WWW.DGCASA.COM WHERE IS THE REST OF MY ORDER? THE PACKAGE I RECEIVED SAYS CARTON NO.
