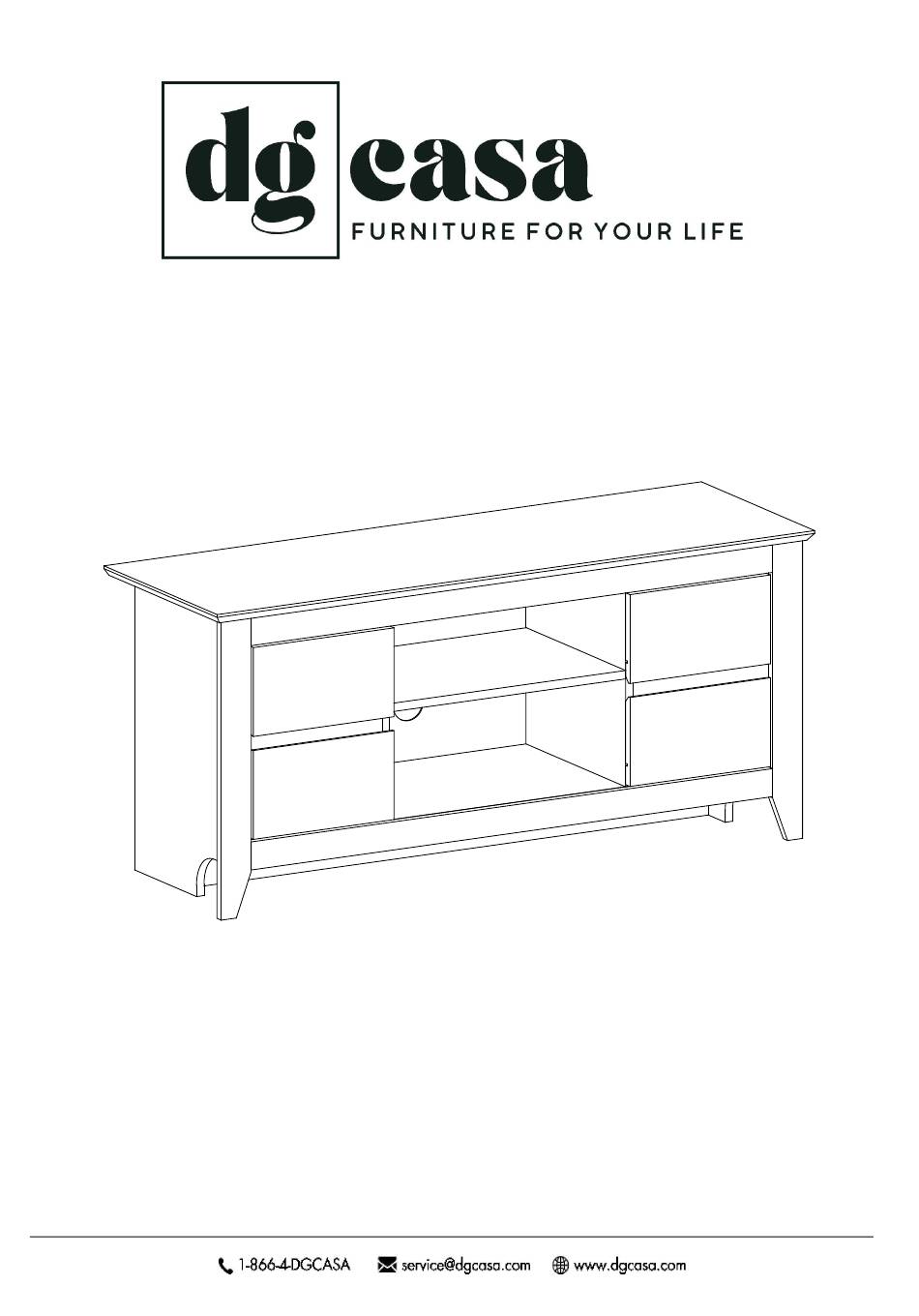

  • Page 1 95150 - TV 4 DRAWER TV STAND...
  • Page 2 MAX : 60 lbs MAX : 22 lbs MAX : 11 lbs...
  • Page 3 IMPORTANT INFORMATION Seller and Manufacturer disclaim all and any liability for property damage, personal injury, or loss, direct, indirect, or incidental, resulting from the incorrect assembly, inadequate maintenance, improper use, or neglect of this product. NOTICE Keep these assembly instructions for future reference. Do not use this produ ct if there are missing, damaged, or broken parts until repairs are made and/or factory replacement parts are installed.
  • Page 4 WARNING This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. The recommended maximum width of the television intended for use with the cart, stand or entertainment center. •...
  • Page 5 • When placing contents on non-carpeted flooring, it’s recommended to use floor protection such as an area rug or furniture pads. These are not included with the purchase. • Do NOT use harsh chemicals or abrasive cleaners on this item. •...
  • Page 6 HARDWARE & TOOL PARTS HARDWARE REQUIRED: WOOD DOWEL (O6 X 30) MINIFIX X 36 PCS CAM 12/15 X 28 CAM 9/15 X 8 X 39 PCS UNITAR SCREW (6.3 X 40) CSK SCREW (3.5 X 15) CSK SCREW (M4.7 X 38) X 4 PCS X 16 PCS X 16 PCS...
  • Page 7 4 DRAWER TV STAND ASSEMBLY PARTS A ..Side Panel....x 1 B ..Side Panel....x 1 ..Partition Panel..x 1 N ..Drawer Front...x 1 D..Partition Panel..x 1 O ..Drawer Front ...x 1 E ..Top Panel....x 1 ..Drawer Front ...x 1 F ..Bottom Panel...x 1 ..Drawer Front...
  • Page 8 4 DRAWER TV STAND ASSEMBLY - STEP 1 Wood Dowel (O6x30mm) x 39 Insert all wood dowel in each panel as shown. Note: Make sure all the dowel are insert into all panel without missing any hole.
  • Page 9 4 DRAWER TV STAND ASSEMBLY - STEP 2 Minifix x 36 Insert Minifix on each panel and then use a screw driver to tighten up all. Note: Do not over tighten the Minifix it will cause issues when assemble all panel.
  • Page 10 4 DRAWER TV STAND ASSEMBLY - STEP 3 Euro Screw (6 x 9) Drawer Slide (300mm) x 16 x 4 SETS Attached drawer slide on Side panel A and B also Partition panel C & D then insert Euro screw and tighten using a screw driver.
  • Page 11 4 DRAWER TV STAND ASSEMBLY - STEP 4 Csk Screw (M4.7 X 38) x 16 Attached drawer side R to drawer back T and use Csk screw and tighten it with a screw driver and repeat for drawer side S.
  • Page 12 4 DRAWER TV STAND ASSEMBLY - STEP 5 Insert the Drawer bottom Z between Drawer side R and S. IMPORTANT : Make sure Drawer bottom Z were inserted onto drawer back for all 4 drawer.
  • Page 13 4 DRAWER TV STAND ASSEMBLY - STEP 6 Cam (9/15) Attach Drawer Front N,O,P,Q on the drawer and insert Cam (9/15) on each side of the drawer side and tighten it with screw driver. Note: Make sure to refer the picture were shown how to position the Cam correctly.
  • Page 14 4 DRAWER TV STAND ASSEMBLY - STEP 7 Csk Screw (3.5 X 15) Drawer Slide (300mm) x 16 x 4 Sets Attach Drawer slide (300mm) and then use ph1 screw driver to tighten Csk screw (3.5 X 15). Note: Repeat the same step for all 4 drawer and make sure to put the drawer slide...
  • Page 15 4 DRAWER TV STAND ASSEMBLY - STEP 8 Cam (12/15) Attach Front leg I to side panel A and insert Cam (12/15) then tighten it with screw driver, repeat the step for Front leg J and side panel B. Note: Make sure to refer the picture were shown how to position the Cam correctly.
  • Page 16 4 DRAWER TV STAND ASSEMBLY - STEP 9 Cam (12/15) Attach Partition Panel C & D to Shelf panel G and insert Cam (12/15) on each hole then tighten it using a screw driver. Note: Make sure to refer the picture were shown how to position the Cam correctly.
  • Page 17 4 DRAWER TV STAND ASSEMBLY - STEP 10 Unitar Screw (6.3 X 40) Attach Panel C,G and D to Bottom panel F, then insert Unitar screw and tighten it with a Hex wrench. Note: Make sure do not over tighten the unitar screw.
  • Page 18 4 DRAWER TV STAND ASSEMBLY - STEP 11 Cam (12/15) Attach Front Panel M to Bottom Panel F and insert Cam (12/15) then tighten it with screw driver. Note: Make sure to refer the picture were shown how to position the Cam correctly.
  • Page 19 4 DRAWER TV STAND ASSEMBLY - STEP 12 Attach Front support H to Panel D and Bottom support I to Bottom Panel F. Note: Make sure to attached the Front support into the right hole position.
  • Page 20 4 DRAWER TV STAND ASSEMBLY - STEP 13 Cam (12/15) Attach Side panel B and Front leg K to Panel H and L then insert Cam (12/15) and tighten it with screw driver. Note: Make sure to refer the picture were shown how to position the Cam correctly.
  • Page 21 4 DRAWER TV STAND ASSEMBLY - STEP 14 Attach Front support H to Panel C. Note: Make sure to attached the Front support according to the right hole.
  • Page 22 4 DRAWER TV STAND ASSEMBLY - STEP 15 Cam (12/15) Attach Side panel A and Front leg J to Panel H and L then insert Cam (12/15) and tighten it with screw driver. Note: Make sure to refer the picture were shown how to position the Cam correctly.
  • Page 23 Put the nail leg on the bottom parts and use a small hammer to knock it. IMPORTANT: Make sure to put all the nail leg on the bottom parts because it will cause the 4 Drawer Tv Stand to be unstable if missing a pieces of the nail leg.
  • Page 24 4 DRAWER TV STAND ASSEMBLY - STEP 17 Insert the Backply Y1 and Y on back side of the 4 Drawer Tv stand and push it down. IMPORTANT: Make sure to put the backply according to the groove at the back side.
  • Page 25 4 DRAWER TV STAND ASSEMBLY - STEP 18 Cam (12/15) x 11 Attach Top panel E then insert the Cam (12/15) and tighten it with a screw driver. Note: Make sure to refer the picture were shown how to position the Cam correctly.
  • Page 26 4 DRAWER TV STAND ASSEMBLY - STEP 19 Backply Stopper Csk Screw (M3.1 x 20) x 12 x 12 Insert the Backply stopper on the backply Y1 and Y then use the Csk screw (M3.1x20) and tighten it with screw driver.
  • Page 27 4 DRAWER TV STAND ASSEMBLY - STEP 20 Carefully insert the drawer one by one in th e 4 Drawer Tv Stand drawer chest by referring the picture.
  • Page 28 ASSEMBLY COMPLETE Enjoy your new 4 Drawer Tv Stand!
