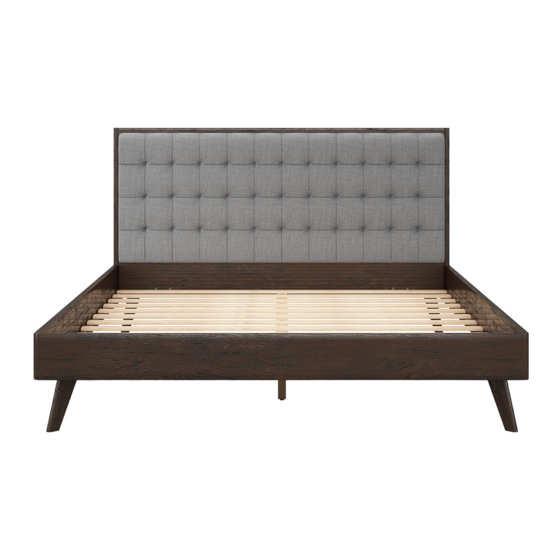

- Page 1 SOLOMAN PLATFORM BED ASSEMBLY INSTRUCTION 12050-K...
- Page 2 WARNING 12050-K Seller and Manufacturer disclaim all and any liability for property damage, personal injury, or loss, direct, indirect, or incidental, resulting from the incorrect assembly, inadequate maintenance, improper use, or neglect of this product. NOTICE • Keep these assembly instructions for future reference. •...
- Page 3 HARDWARE M6 x 60 FLAT WASHER M6 M6 x 50 10 PCS 16 PCS 16 PCS M8 x 50 M8 x 20 FLAT WASHER M8 8 PCS 8 PCS 8 PCS M6 x 30 M4 x 32MM 4 PCS 26 PCS SUPPORT LEG ADJUSTER 10 PCS ALLEN KEY M5...
- Page 4 SOLOMAN PLATFORM BED PARTS HEADBOARD 1 PC CENTER RAIL SLAT SUPPORT 2 PCS FOOTBOARD 1 PC SIDE RAIL 2 PCS SLAT 13 PCS LEG 4 PCS CORNER BRACKET 4 PCS SUPPORT LEG 10 PCS...
- Page 5 ASSEMBLY INSTRUCTION STEP 1 HEADBOARD REPEAT THIS STEP FOR EACH OF THE FOUR CORNERS TO SECURE THE HEADBOARD, SIDE RAIL, AND FOOTBOARD. FOOTBOARD STEP 2 INSTALL PART (C) TO PART (D) AND REPEAT FOR EACH CORNER.
- Page 6 STEP 3 ATTACH PART (h) TO PART (E), THEN ATTACH PART (b) THROUGH PART (G), PART (F), PART (E), AND TIGHTEN. REPEAT THIS STEP TO INSTALL ALL OF PART (E) TO PART (G). ROTATE PART (H) CLOCKWISE OR COUNTER CLOCKWISE TO ADJUST THE SLAT HEIGHT FOR PROPER MATTRESS SUPPORT.
- Page 7 ATTACH THE ASSEMBLED SLAT TO BED FRAME AND ADJUST PART (h) STEP 4 IN STEP 3 ACCORDINGLY. COMPLETED ASSEMBLY...
