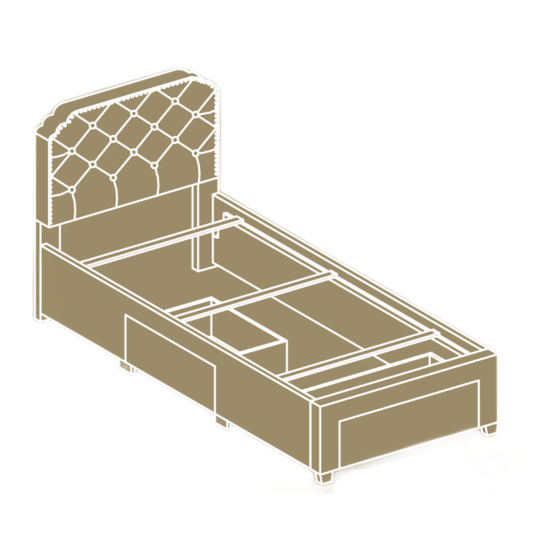

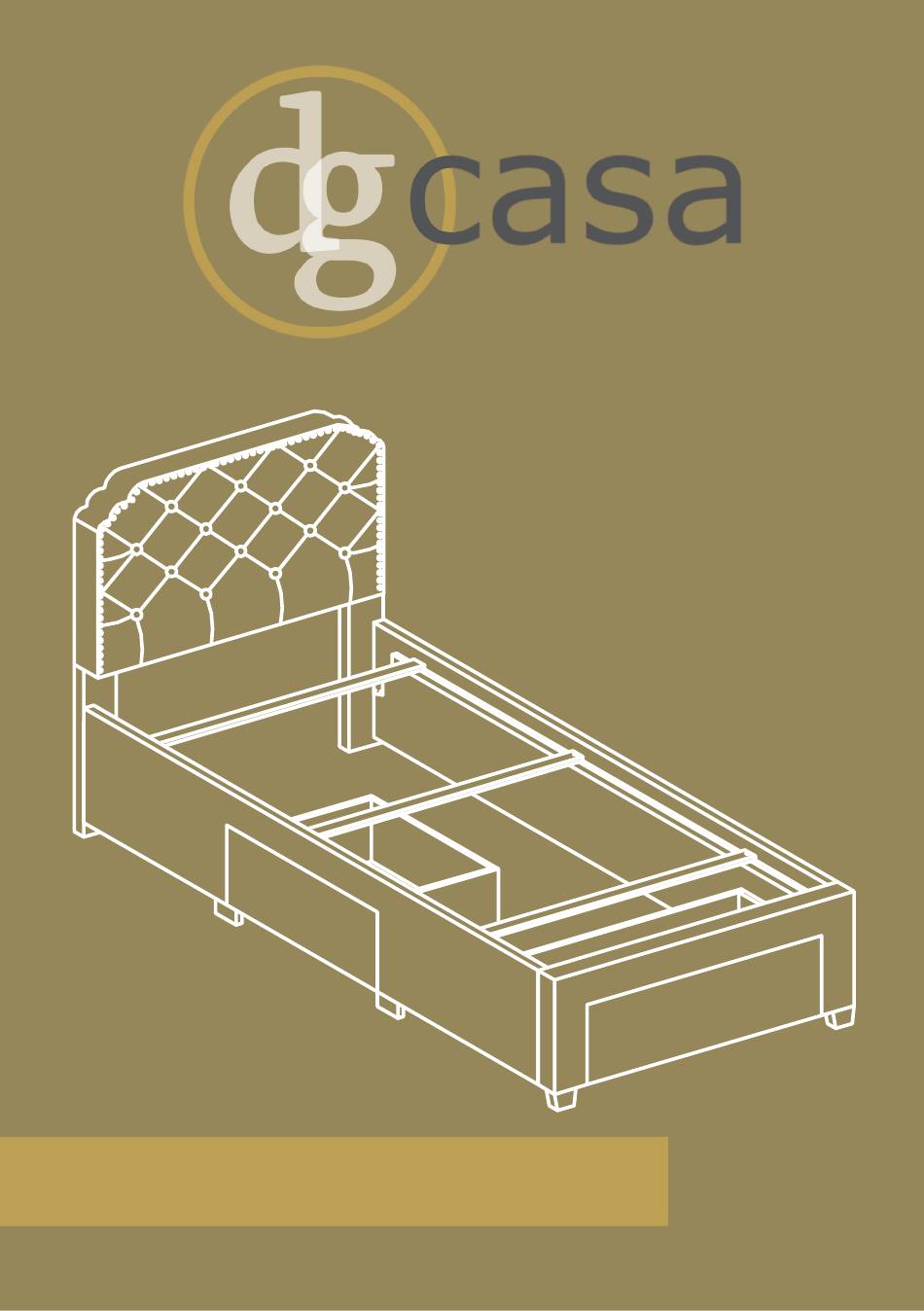

- Page 1 ARGO STORAGE BED ASSEMBLY INSTRUCTION 12350-T...
-
Page 2: Tools Required
WARNING 12350-T Seller and Manufacturer disclaim all and any liability for property damage, personal injury, or loss, direct, indirect, or incidental, resulting from the incorrect assembly, inadequate maintenance, improper use, or neglect of this product. NOTICE • Keep these assembly instructions for future reference. •... - Page 3 HARDWARE M6 x 50 8 PCS ALLEN KEY 100MM ALLEN KEY 70MM 1 PC 1 PC SCREW SCREW SCREW 25MM 32MM 16MM 4 PCS 26 PCS 32 PCS SCREW SPRING WASHER 50MM WOOD DOWEL 4 PCS 16 PCS 4 PCS M8 x 20 8 PCS DRAWER STOPPER...
- Page 4 ARGO STORAGE BED PARTS HEADBOARD 1 PC DRAWER FRONT PANEL 2 PCS FOOTBOARD 1 PC DRAWER BACK PANEL 2 PCS DRAWER LEFT SIDE PANEL 2 PCS SIDE RAIL 2 PCS SIDE RAIL 2 PCS DRAWER RIGHT SIDE PANEL 2 PCS HEADBOARD LEG 2 PCS DRAWER BOTTOM PANEL 2 PCS...
-
Page 5: Assembly Instruction
ASSEMBLY INSTRUCTION STEP 1 STEP 2 BOTTOM DRAWER VIEW TAPPED HOLE INDICATES BACK OF DRAWER SLIDE PART N TOWARDS THE FRONT DRAWER FABRIC PANEL INDICATES FRONT OF DRAWER STEP 3 STEP 4 BOTTOM DRAWER VIEW BOTTOM DRAWER VIEW ALIGN CASTER MOUNTING HOLE TO NOTCHES ON PART O THEN INSTALL CASTER... - Page 6 STEP 5 *BACK OF HEADBOARD STEP 6 STEP 7 STEP 8 ATTACH PART G BY ALIGNING PRECUT HOLES LIGHTLY TAP INTO PLACE LOCATED ON ONE SIDE OF THE PART TO PART 9, THEN INSTALL PART G TO PART C1...
- Page 7 STEP 9 REF. 1 C1 INSTALLED ON THE RIGHT SIDE C1 CAN BE ASSEMBLED ON THE LEFT OR RIGHT SIDE BASED ON YOUR PREFERENCE. EXAMPLE SHOWN ON REF.1 STEP 10...
- Page 8 STEP 11...
