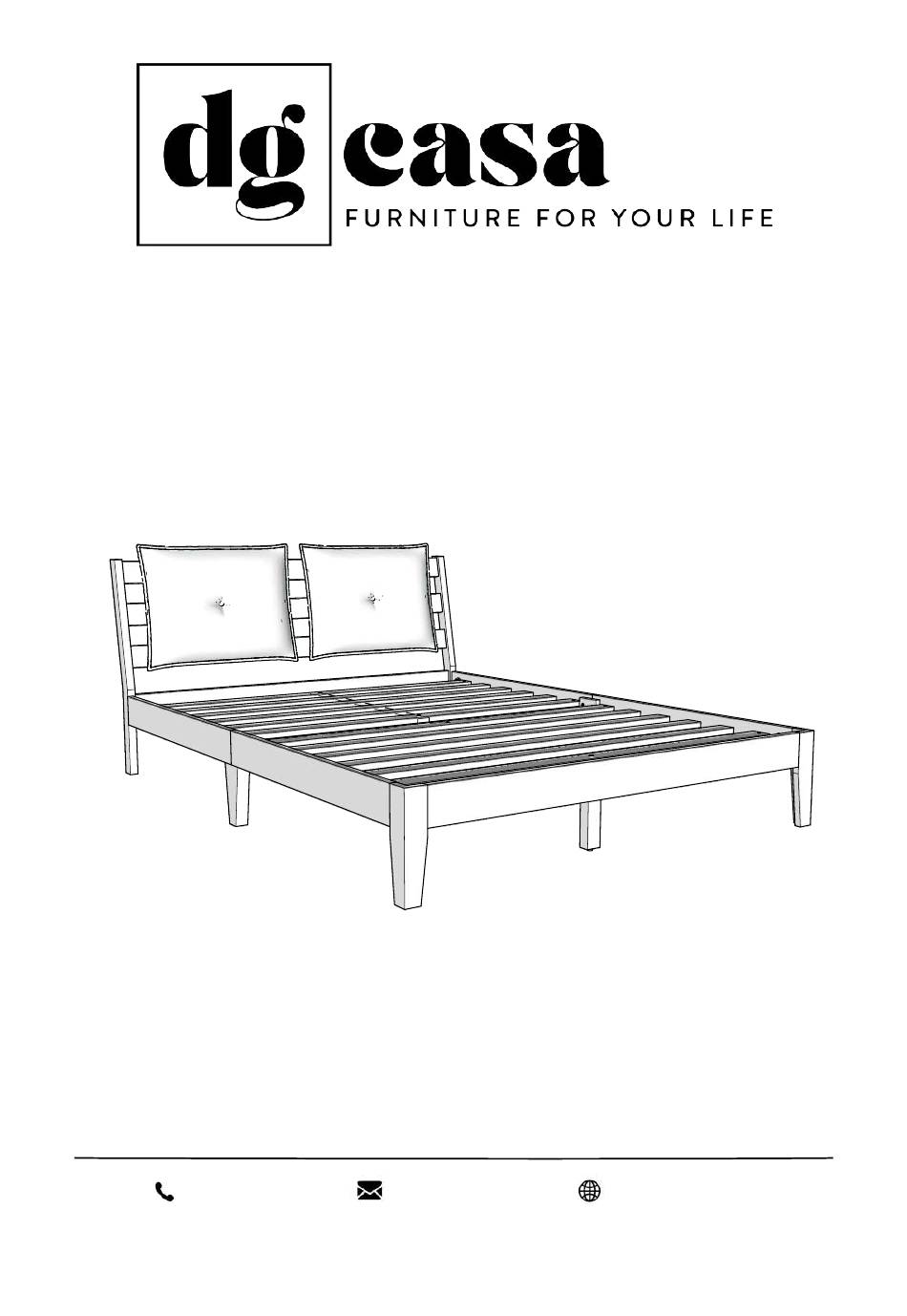

- Page 1 190250-Q 1-866-4-DGCASA service@dgcasa.com www.dgcasa.com...
- Page 2 IMPORTANT INFORMATION Seller and Manufacturer disclaim all and any liability for property damage, personal injury, or loss, direct, indirect, or incidental, resulting from the incorrect assembly, inadequate maintenance, improper use, or neglect of this product. NOTICE Keep these assembly instructions for future reference. �...
- Page 3 BED PARTS Headboard Footboard Headboard Pillow Headboard Post (L) & (R) Footboard Leg Side Rail (L) & (R) Side Rail Support Bed Slat x 12 Slat Support Support Leg...
- Page 4 HARDWARE HARDWARE Wood Screw Hex Nut Half Moon Washer x 14 x 14 M4 x 32mm M6 x 40mm M6 x 30mm M6 x 30mm Small Bolt - Medium Small Bolt - Extra Long M6 x 35mm M6 x 60mm Threaded Rod Spring Washer x 14...
- Page 5 BED ASSEMBLY STEP 1 Hex Nut Half Moon Washer Wood Dowel M6 x 40mm M6 x 30mm M10 x 40mm Threaded Rod M8 x 65mm Insert Dowel and Threaded Rod into Footboard Leg Assemble Footboard Panel to Footboard Leg with Half Moon Washer and Hex Nut...
- Page 6 BED ASSEMBLY STEP 2 Small Bolt - Medium Spring Washer M6 x 35mm Attach Side Rail Support to Side Rail ( L ) and Side Rail ( R ) with Small Bolt - Short Spring Washer as shown.
- Page 7 BED ASSEMBLY STEP 3 Threaded Rod Half Moon Washer M8 x 65mm M6 x 30mm Wood Dowel Hex Nut M6 x 40mm M10 x 40mm & & Insert Wood Dowel and Threaded Rod into Headboard Post ( L ) and Headboard Post ( R ) Attach Headboard Rail to Headboard Post ( L ) and Headboard Post ( R )
- Page 8 BED ASSEMBLY STEP 4 Hex Nut Half Moon Washer Wood Dowel M6 x 40mm M6 x 30mm M10 x 40mm Threaded Rod M8 x 65mm & & Insert Wood Dowel and Threaded Rod into Headboard Post ( L ) and Headboard Post ( R ) Attached Assembled Headboard and Assembled Footboard to Assembled Side Rail with Half Moon Washer and Hex Nut...
- Page 9 BED ASSEMBLY STEP 6 Small Bolt - Extra Long Adjustable Glide M6 x 60mm Insert Adjustable Glide into Support Leg . Attach Bed Slats and Support Leg to Slat Support with Small Bolt - Extra Long as shown.
- Page 10 BED ASSEMBLY STEP 6 Wood Screw M4 x 32mm & Attach Assembled Bed slat to Assemble Bed Frame with Wood Screw as shown.
- Page 11 BED ASSEMBLY STEP 7 Rotate Adjustable Glide clockwise or counter clockwise until it is firmly against the floor.
- Page 12 BED ASSEMBLY STEP 8 Attach Headboard Pillow to Assembled Bed as shown.
-
