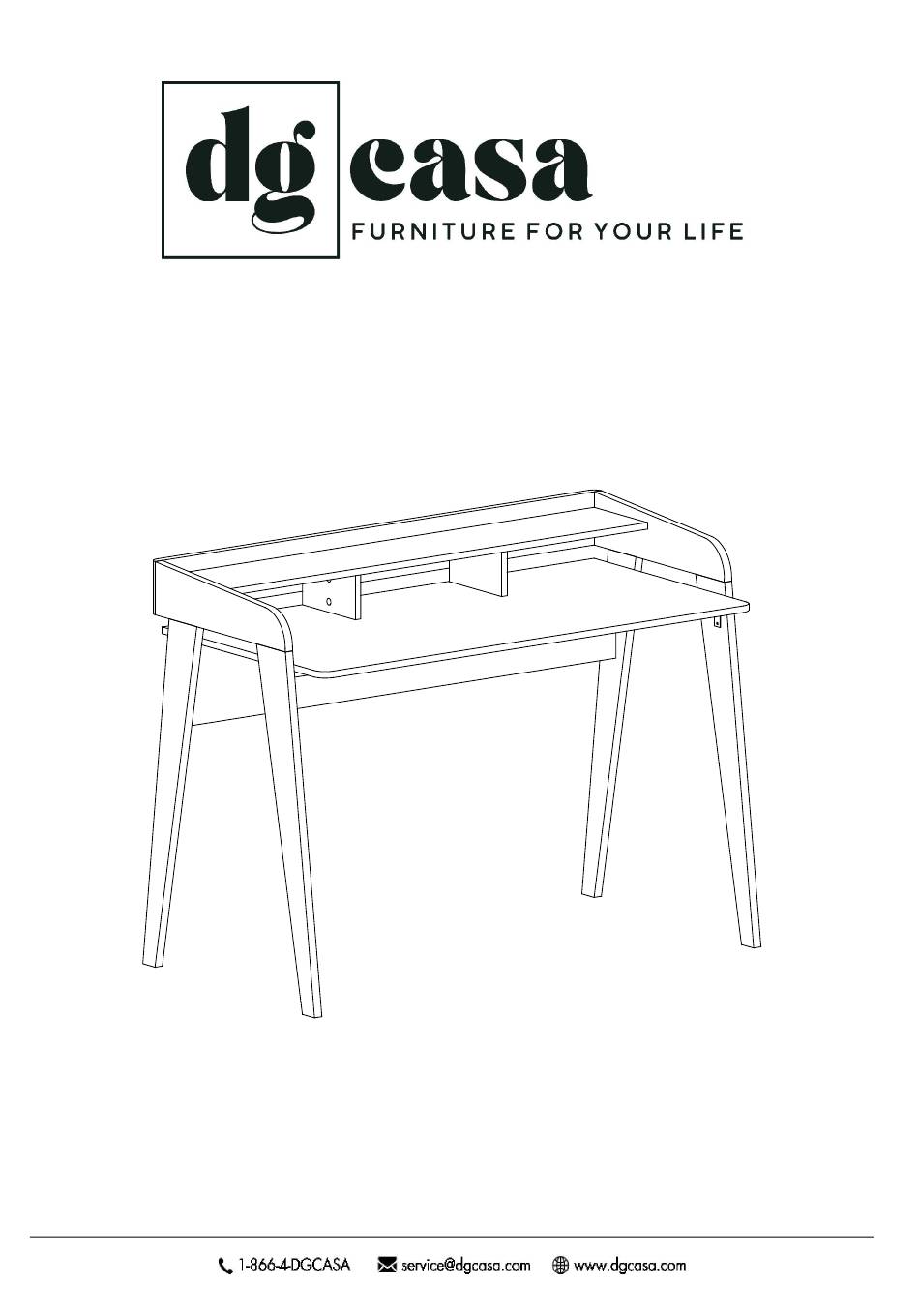

- Page 1 95450-DSK DESK WITH SOLID LEG...
- Page 2 MAX : 33 lbs MAX : 6 lbs...
- Page 3 IMPORTANT INFORMATION Seller and Manufacturer disclaim all and any liability for property damage, personal injury, or loss, direct, indirect, or incidental, resulting from the incorrect assembly, inadequate maintenance, improper use, or neglect of this product. NOTICE Keep these assembly instructions for future reference. Do not use this produ ct if there are missing, damaged, or broken parts until repairs are made and/or factory replacement parts are installed.
-
Page 4: Hardware Required
HARDWARE & TOOL PARTS HARDWARE REQUIRED: WOOD DOWEL (O8 X 30) MINIFIX X 17 PCS CAM 12/15 X 17 X 26 PCS CSK SCREW (3.5 X 15) CSK SCREW (4 X 32) UNITAR SCREW (6.3 X 40) X 4 PCS X 1 PCS X 3 PCS METAL SUPPORT (19 X 1186) - Page 5 DESK WITH SOLIDWOOD LEG ASSEMBLY PARTS A ..Solidwood leg..x 1 ..Solidwood leg..x 1 ..Back Panel ....x 1 D..Top Panel ....x 1 E ..Upper Top Panel..x 1 F ..Bottom Support..x 1 G..Partition Panel..x 2...
- Page 6 DESK WITH SOLIDWOOD LEG - STEP 1 Wood Dowel (O8x30mm) x 26 Insert all wood dowel in each panel as shown. Note: Make sure all the dowel are insert into all panel without missing any hole.
- Page 7 DESK WITH SOLIDWOOD LEG - STEP 2 Minifix x 17 Insert Minifix on each panel and then use a screw driver to tighten up all. Note: Do not over tighten the Minifix it will cause issues when assemble all panel.
- Page 8 DESK WITH SOLIDWOOD LEG - STEP 3 Cam (12/15) Attach Upper Top panel E to Partition panel G and insert Cam (12/15) on each side of the Panel G and tighten it with screw driver. Note: Make sure to refer the picture were shown how to position the Cam correctly.
- Page 9 DESK WITH SOLIDWOOD LEG - STEP 4 Cam (12/15) Attach Panel E and G to Top panel D and insert Cam (12/15) then use a screw driver to tighten it. Note: Make sure to refer the picture were shown how to position the Cam correctly.
- Page 10 DESK WITH SOLIDWOOD LEG - STEP 5 Cam (12/15) Attach Bottom Support F to Top panel D and insert Cam (12/15) then use a screw driver to tighten it. Note: Make sure to refer the picture were shown how to position the Cam correctly.
- Page 11 DESK WITH SOLIDWOOD LEG - STEP 6 Cam (12/15) Attach Solidwood leg B to Panel D,E and F and insert Cam (12/15) then use a screw driver to tighten it. Note: Make sure to refer the picture were shown how to position the Cam correctly.
- Page 12 DESK WITH SOLIDWOOD LEG - STEP 7 Cam (12/15) Attach Solidwood leg A to Panel D,E and F and insert Cam (12/15) then use a screw driver to tighten it. Note: Make sure to refer the picture were shown how to position the Cam correctly.
- Page 13 DESK WITH SOLIDWOOD LEG - STEP 8 Csk Screw (M3.5 X 15) Csk Screw (M4 X 32) Metal Support(19X1186) Attached the Metal support and insert Csk screw (3.5 X 15) to Panel A and B then tighten it using ph1 screwdriver, then insert Csk screw (4 X 32) and tighten it using screwdriver to panel D.
- Page 14 DESK WITH SOLIDWOOD LEG - STEP 9 Cam (12/15) Attach Back panel C to the back side and insert Cam (12/15) to Panel A and B then then tighten it with screw driver. Note: Make sure to refer the picture were shown how to position the Cam correctly.
- Page 15 DESK WITH SOLIDWOOD LEG - STEP 10 Unitar Screw (6.3 X 40) Insert the Unitar screw on Back panel C and then tighten it with a Hex wrench. Note: Make sure do not over tighten the unitar screw.
- Page 16 ASSEMBLY COMPLETE Enjoy your new Desk With Solidwood Leg!
