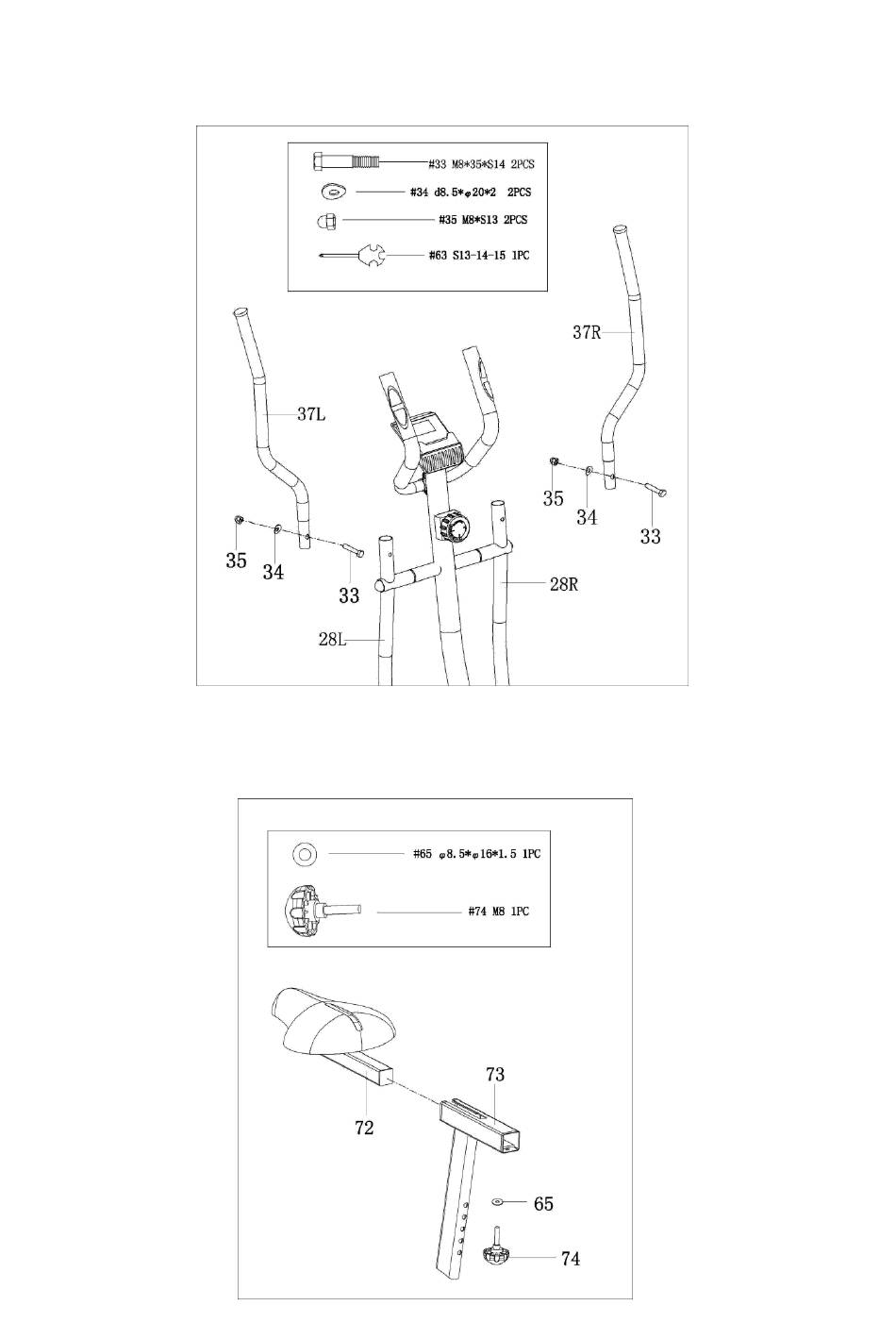

Passo 6:
Avvitare il Manubrio (37L) nella barra di connessione (28L), allineare i fori e avvitarla con vite (33),
rondella (34) e dado (35); avvitare la barra del manubrio destra (37R) come sopra.
Passo 7:
Far passare il Tubo di Regolazione (72) attraverso il Tubo del Sedile (73), e la Manopola (74) attraverso la
Rondella (65), il Tubo del Sedile (73) e avvitare dentro al Tubo di Regolazione (72).
10
