Before using this product, please read this manual carefully and keep it for future reference.

The design and speciﬁcations are subject to change without prior notice for product improvement. Consult

with the dealer or the manufacturer for details.

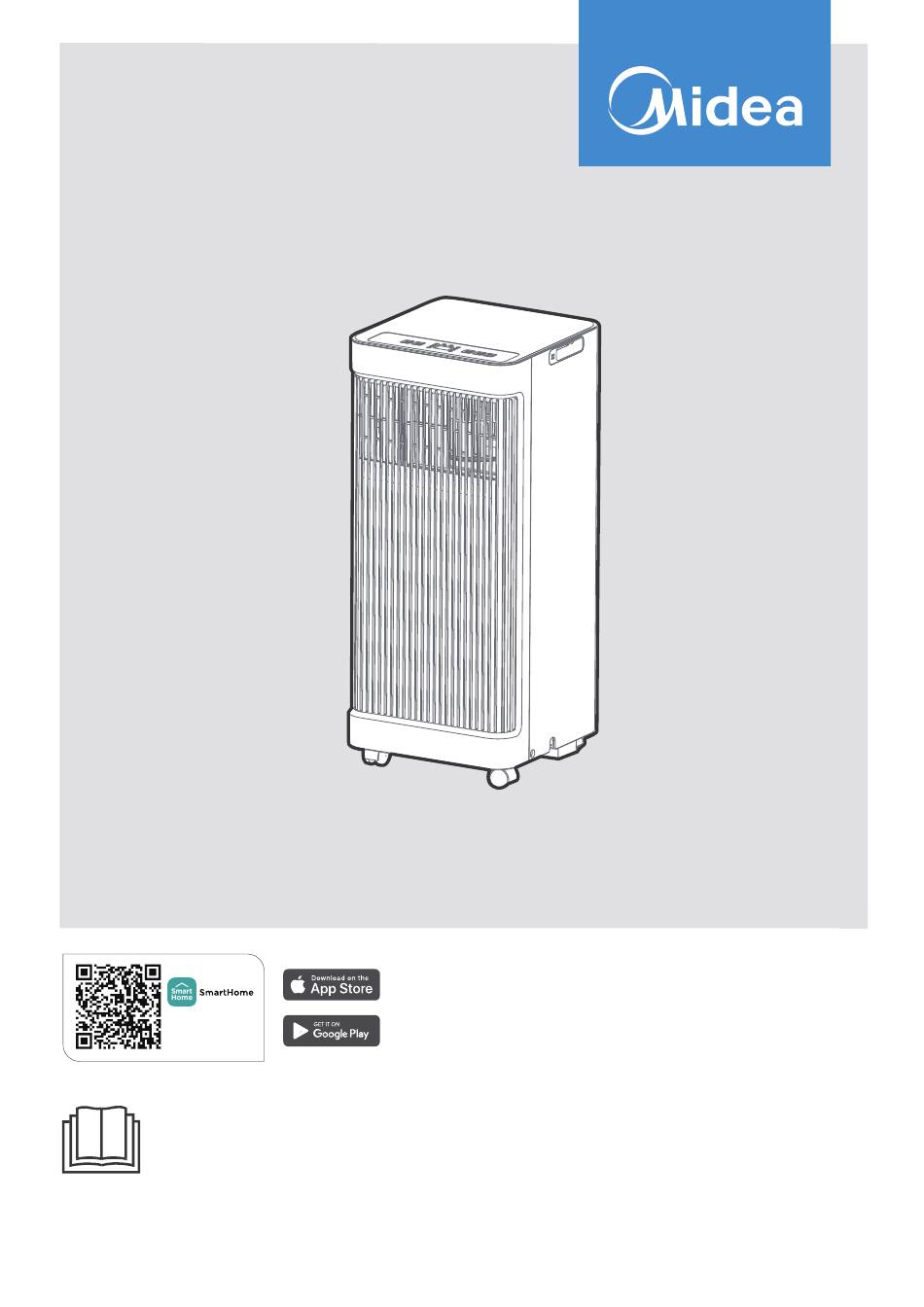

PORTABLE AIR CONDITIONER

USER MANUAL

MAP05S1AWT-A

MAP07S1AWT-A

Need help?

Do you have a question about the MAP05S1AWT-A and is the answer not in the manual?

Questions and answers

Summary of Contents for Midea MAP05S1AWT-A

Page 1 PORTABLE AIR CONDITIONER USER MANUAL MAP05S1AWT-A Download the app & activate product MAP07S1AWT-A Before using this product, please read this manual carefully and keep it for future reference. The design and speciﬁcations are subject to change without prior notice for product improvement. Consult...
Page 2 THANK YOU FOR CHOOSING MIDEA! Before using your new Midea product, please review this manual thoroughly to ensure safe and effective operation of its features and functions. CONTENTS CONTENTS ...........................2 SAFETY INSTRUCTIONS......................3 BEFORE GETTING STARTED....................14 PRODUCT INSTALLATION......................17 OPERATION INSTRUCTIONS....................23 REMOTE CONTROL INSTRUCTIONS..................25 APP INSTRUCTIONS .........................33...
Page 3 SAFETY PRECAUTIONS To prevent injury to the user, or personal and property damage, these instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The level of risk is shown by the following indications. Explanation of Symbols WARNING This symbol indicates a risk of personal injury or serious harm.
Page 4 Do not install the unit in a location that may be exposed to combustible gas, as this could cause re. The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to roll over objects, as this could cause the unit to tip over. Do not operate a unit that has been dropped or damaged.
Page 5 CAUTION This unit is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or those lacking experience and knowledge, unless they have received supervision or instruction concerning its use from a person responsible for their safety. Children should be supervised to ensure they do not play with the unit. Children must be monitored around the unit at all times.
Page 6 Electric Work WARNING: BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN OFF THE MAIN POWER TO THE SYSTEM. Electronic Type Display Compressor L/AC L/L1/L-IN Power Supply N/AC N/L2/N-IN Fan Motor Main Control Other NOTE: Please strictly follow the wiring label attached to the machine for all wiring wiring diagram on the purchased unit.
Page 7 SAFETY MANUAL FOR R32 REFRIGERANT MODEL North America Products CAUTION: Risk of ﬁre ﬂammable materials IMPORTANT NOTE: Read this manual carefully before installing or operating the new unit. Make sure to save this manual for future reference. Explanation of symbols displayed on the unit This symbol indicates that the operation manual should be read CAUTION carefully.
Page 8 Flammable refrigerant R32 is used within the unit. When maintaining or disposing the appliance, the refrigerant (R32) shall be recovered properly, shall not discharge to air directly. Compliance with national gas regulations shall be observed. Keep ventilation openings clear of obstruction. The unit shall be stored so as to prevent mechanical damage from occurring.
Page 9 1. Transport of equipment containing ﬂammable refrigerants See transport regulations. 2. Marking of equipment using signs See local regulations. 3. Disposal of equipment using ﬂammable refrigerants See national regulations. 4. Storage of equipment/appliances The storage of the unit should be in accordance with the applicable regulations or instructions, whichever is more stringent.
Page 10 6) No ignition sources No person carrying out work in relation to a refrigerating system which involves exposing any pipe work that contains or has contained ﬂammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of ﬁre or explosion.
Page 11 7. Sealed electrical components shall be replaced. 8. Intrinsically safe components must be replaced. 9. Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, or fans. 10. Detection of ﬂammable refrigerants Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks.
Page 12 For units containing ﬂammable refrigerants, refrigerants purging shall be achieved by breaking the vacuum in the system with oxygen-free nitrogen and continuing to ﬁll until the working pressure is achieved, then venting to atmosphere, and ﬁnally pulling down to a vacuum (optional for A2L). This process shall be repeated until no refrigerant is within the system (optional for A2L).
Page 13 14. Labeling Equipment shall be labeled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains ﬂammable refrigerant. 15. Recovery When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.
Page 14 BEFORE GETTING STARTED The installation must be Installing the AC n u a carried out in strict should take about accordance with the 30 minutes. instructions in this manual. Assistance from a Customer Service: helper is advisable. 1-866-646-4332 AMBIENT TEMPERATURE RANGE FOR UNIT OPERATING MODE Temperature Range Cool...
Page 15 PRODUCT INSTALLATION LOCATION The installation location should meet the following requirements: - Make sure to install the unit on a level surface to minimize noise and vibration. - The unit must be installed near a grounded plug, and the Collection Tray Drain (found on the back of the unit) must be accessible.
Page 16 Product overview NOTE All illustrations in the manual are for explanatory purposes only. The purchased unit may differ slightly, though the overall shape will remain consistent. The unit can be operated using either the control panel or the remote control. Handle Control panel (both sides)
Page 17 PRODUCT INSTALLATION Installation Completion Display Sliding Window Installation Hung Window Installation Window Slider Assembly xtended Exhaust Hose Portable Air Conditioner Security Bracket and 2 Screws...
Page 18 List of installation tools (not included) Screwdriver & Wrench Pencil Tape Measure Scissors or Knife Saw (On some models, to shorten window adaptor for narrow windows) Installation accessories The window installation kit ﬁts windows 19.4”-62.2”(49.3-158.1cm) and can be shortened for smaller windows. NOTE Items with (*) are on some models.
Page 19 For optimal performance in operation INCORRECT CORRECT NOTE: To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is no obstacle around the air outlet of the exhaust hose (in the range of 500mm) in order to ensure the exhaust system works properly.
Page 20 Exhaust hose and adaptors installation 1. The Exhaust Hose assembly installation Exhaust hose (window type) assembly Press the exhaust hose(or extended exhaust hose) Exhaust hose into the window slider adaptor and unit adaptor. The pieces will clip together using the tabs on the adapters.
Page 21 NOTE: Once the exhaust hose assembly and adjustable window slider are prepared, choose one of the two installation methods based on the window type. Foam seal A 3. Complete sealing of window Foam seal B (Adhesive type) (Adhesive type-shorter) Hung Window Installation Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash and frame as shown.
Page 22 5. Sliding Window Installation Insert the window slider assembly into the window opening. Cut the non-adhesive foam seal C strip to match the height of the window. Insert the seal between the glass and the window frame to prevent air and insects from getting into the room.
Page 23 OPERATION INSTRUCTIONS Electronic control operating instructions 5. Display 2. FAN 4. UP and DOWN 3. MODE 1. POWER 3. MODE button 1. POWER button Select the appropriate operating mode. Each • Power switch on/o . time the button is pressed, the modes are •...
Page 24 FAN mode Press the "MODE" button until the "FAN" indicator lights up. Press the "FAN SPEED" button on the remote controller to choose the fan speed. The temperature can not be adjusted. Do not put the duct against window. 4. UP and DOWN buttons Adjust (increasing/decreasing) temperature settings in 1°C/2°F (or 1°F) increments in a range of 16°C/60°F to 30°C/88°F (or 86°F).
Page 25 REMOTE CONTROL INSTRUCTIONS Handling the Remote Control Location of the remote control Use the remote controller within a distance of 26.2 ft (8 meters) from the air conditioner, pointing it towards the receiver. Reception is conﬁrmed by a beep. CAUTION The air conditioner will not operate if curtains, •...
Page 26 Function Buttons TEMP DOWN Button TEMP UP Button Press this button to Press this button to decrease the indoor increase the indoor temperature setting. temperature setting. SPEED Button Select the desired fan speed. TIMER Button Press this button to ON/OFF Button activate the “Auto Operation starts when Start”...
Page 27 Remote Screen Indicators Information is displayed when the remote controller is powered up. Mode display COOL AUTO AUTO COOL HIGH Displayed when data transmitted. The indicator displays when the remote is enabled and can send signals to the unit. To turn o the remote without a ecting the unit, point it away and press the ON/OFF button.
Page 28 How to Use the Buttons TIMER OPERATION Press the TIMER button to initiate the Auto-start and Auto-stop setting program of the unit. To set the Auto-start/stop time. Press the TIMER button, when the TIMER ON indicator is displayed on the LED window of the air conditioner, it indicates the Auto Start setting program is initiated.
Page 29 COMBINED TIMER (Set both ON and OFF timers simultaneously) AUTO STOP > AUTO START (On > Stop > Start operation) This feature is useful for stopping the air conditioner after going to bed and restarting it in the morning or when returning home. Example: To stop the air conditioner 2 hours after setting and start it again 10 hours after setting.
Page 30 Timer Functions The unit has two timer-related functions: TIMER ON - set the time for the device to turn on automatically. TIMER ON TIMER ON TIMER OFF - set the time for the device to turn off automatically. TIMER ON function The TIMER ON function enables the user to set a specific period after which the unit will automatically turn on, such 1sec...
Page 31 Timer Functions (cont.) 3. Wait 2 seconds, then the TIMER OFF function will be activated. The digital display on the remote control will then return to the temperature display. T imer on NOTE When setting the TIMER ON or TIMER OFF functions, Continue to press the time can be adjusted up to 10 hours in 30-minute...
Page 32 300 Kimball Dr Parsippany NJ 07054 Telephone number or internet contact information: Midea.com/us FCC Compliance Statement ( products subject to Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 33 The information displayed on the actual product is always the most accurate available. Refresh the app to re-sync. NOTE Midea will not be responsible for any problems that could be caused by incompatibility or network issues, the wireless router and mobile phone.
Page 34 1. How to Use SmartHome App Ensure that the mobile phone is connected to the wireless network. Bluetooth must be turned on. The device must also be powered up. STEP 1: Download the SmartHome App Scan the QR code below to download the SmartHome app from the app store or search for it directly on the Google Play Store or Apple’s App Store.
Page 35 2) If no message appears, tap the “+” icon and select the device from the list of nearby available devices. If the device is not listed, add it manually by ﬁrst selecting the device category (i.e. Window AC). 3) Follow the steps in the app to connect For Window AC For Portable AC the device to the wireless network.
Page 36 2. How to Use Matter Matter is a connectivity technology that uniﬁes the smart home by allowing devices and ecosystems (such as Alexa, Google Home and Apple Home) to speak the same language thus creating exciting new features and use cases. To use Matter, at least one Matter-enabled smart speaker from Amazon, Google, or Apple is required, along with the appropriate app.
Page 37 STEP 3: Enter AP Mode Windows AC: Hold down the CONNECT / Power button for SWING 3 seconds to begin the pairing process (“AP” will appear on the AC’s display). Portable AC: Hold down the SWING / Power button for 3 seconds to begin the pairing process (“AP”...
Page 38 STEP 6: Control Device After pairing is successful, control the AC's temperature, mode settings, etc. through the respective Air conditioner ecosystem app and smart speaker. Due to a compatibility issue, the temperature value shown in the Alexa, Google Home or Apple Home app may be 1 degree different from that displayed on the air conditioner.
Page 39 Declaration of Conformity FCC ID: 2ADQOMDNA23 IC: 12575A-MDNA23 This device complies with Part 15 of the FCC Rules and Industry Canada’s licence exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; (2) This device must acceptany interference, including interference that may cause undesired operation of the device.
Page 40 DRAINAGE GUIDE Dehumidifying Mode Drainage Guide Step 1: Remove the Step 2: drain plug Install the continuous drain hose During dehumidifying mode, remove the drain plug from the back of the unit, install the drain connector (5/8" universal female mender) with 3/4"...
Page 41 CLEANING & MAINTENANCE How to clean & maintain the AC. Air Filter & Cabinet Cleaning Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry, lint-free cloth. Maintenance Tips · Be sure to clean the air ﬁlter every 2 weeks for optimal performance. ·...
Page 42 Store the unit when not in use Step 2 Step 3 Step 1 hours *Drain the unit‘s water collection *Please refer to the actual tray then reinstall the bottom plug, and the illustration is for drain plug back in. reference only. Step 6 Step 4 Step 5...
Page 43 TROUBLESHOOTING TIPS Problem Solving Common Issues The following problems are not a malfunction and in most situations will not require repairs. P1 Protection Code. Collection Tray and restart the unit. Unit does not turn on when pressing In COOL mode: room ON/OFF button temperature is lower than Check the set temperature.
Page 44 "Installation and Operating Instructions." 2) Damages caused by services performed by persons other than authorized Midea costumer service; or external causes such as abuse, misuse, inadequate power supply or acts of God.
Page 48 The design and speciﬁcations are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version. 2024 MAPS 16120600A29830...
