Summary of Contents for Ronix 8609

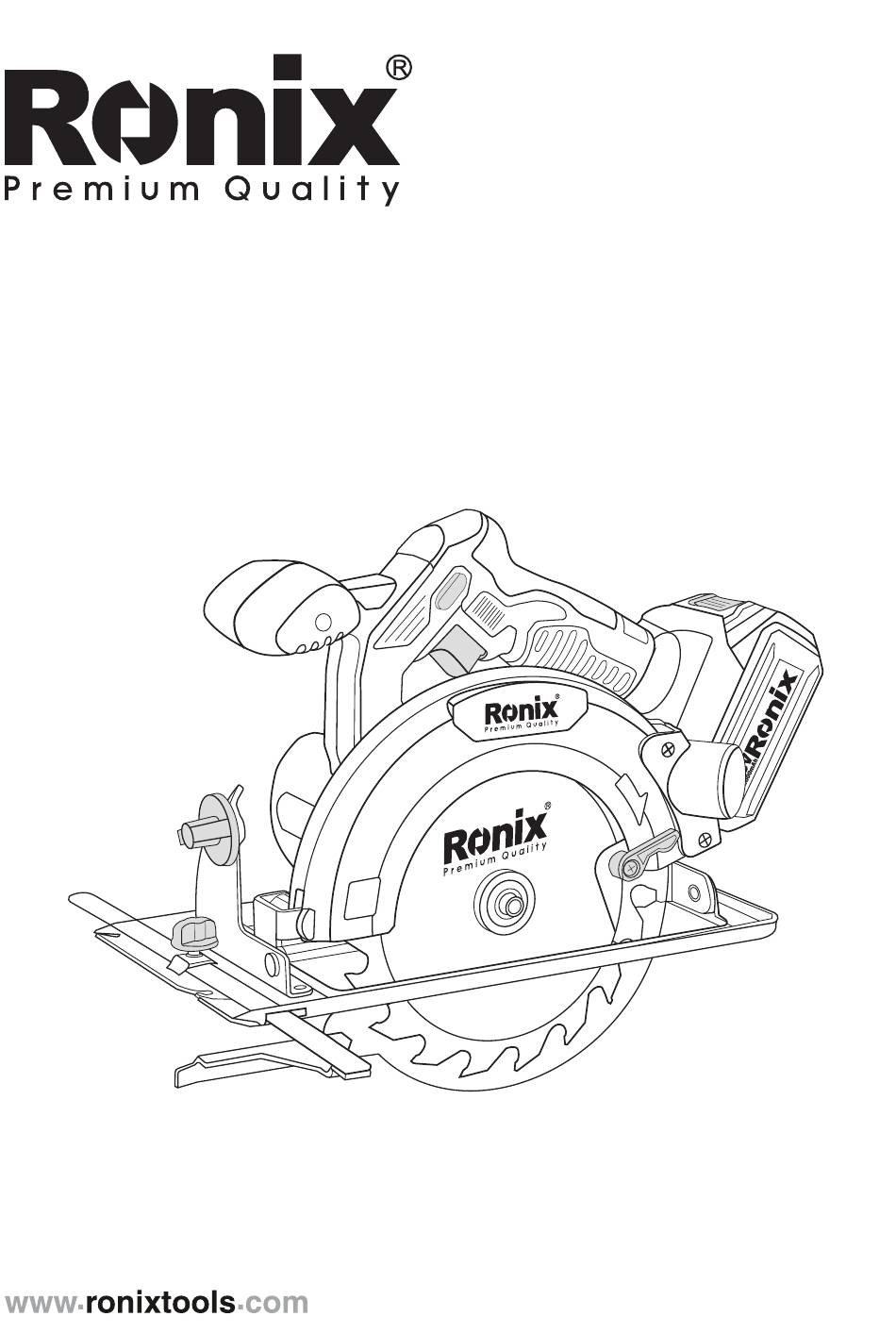

- Page 1 CORDLESS CIRCULAR SAW 8609...
-
Page 2: Specifications
Max Cutting Depth at 0° 55mm Max Cutting Depth at 45° 36mm Max working time (no load) 50 min Charging time Weight 3.37kg Supplied in Ronix color box Includes Guide ruler, Allen key, 2pcs 4.0Ah battery, 1pc 4.0 charger USER MANUAL... -
Page 3: Parts List
PARTS LIST Safety Switch Auxiliary Handle Battery Release Button on/off Switch Upper Guard Lower Guard Lever Baseplate Lower Guard Depth Scale 2A Battery Spindle Charger Lock Button Bevel Lock Nut 2.0A 20V & Bevel Scale Max Battery Fence Lock Depth Lever Fence CORDLESS CIRCULAR SAW... -
Page 4: Work Area
GENERAL SAFETY RULES FOR ALL BATTERY-OPERATED TOOLS WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. For your personal safety, read and understand before using. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. WORK AREA 1.Keep your work area clean and well lit. -
Page 5: Personal Safety
PERSONAL SAFETY 7.Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury. 8.Dress properly. -
Page 6: Important Charging Notes
17.Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users. 18.When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. -
Page 7: Operation
Do not allow liquid to enter charger. Electric shock could result. To cool the battery pack after use, avoid placing the charger in a warm environment such as in a metal shed or non-insulated trailer. Ronix service Authorized Service Center. OPERATION BLADE ASSEMBLY WARNING! NEVER attempt to Remove/Replace the blade with the battery installed. -
Page 8: Depth Adjustment
(1) clockwise with the included tool. 3.Remove Outer Flange (2). Press the Lower Guard Lever to make way for the blade. 4.Remove the blade. Keep the Inner Flange (4) on the spindle. 5.Install a new blade with the rotation arrow, facing the same way as the arrow on the Upper Guard 6.Now install the Outer Flange (2), and Blade Bolt (1), following the same method in step 2. -
Page 9: Battery Assembly
Lock-Nut. 2-The machine will be able to tilt from side to side, set preferred angle on the Bevel Scale. 3-Secure the preferred angle by tightening the Bevel Lock-Nut. BATTERY ASSEMBLY Slide the Battery into the Battery Carriage at the bottom on the Machine Handle. -
Page 10: Starting And Stopping
STARTING & STOPPING WARNING! You MUST read and fully understand the whole user manual before operation To start the machine, firstly press the Safety Switch. At the same time, press the on/off Trigger. The machine will start. Allow 1 to 2 seconds for the machine to reach maximum operating speed before starting a cut. - Page 11 operation. Slide the Battery into the Battery Charger by lining up the terminals on both. It will be secured with an affirmative “click! “. NOTE - To remove the battery, press the Battery Release Button whilst pulling away from the Battery Charger 2.Plug in the Battery Charger, then turn on the power source.
- Page 12 STORAGE Keep the machine stored in a dry, level area away from damp, moisture and rain fall. Allow the machine to cool down before storing. - Make sure the machine is clean and dry before storing. Ensure the machine is stored in a position, where any persons cannot step on, to attempt to reach items up high, due to risk of movement.
