Summary of Contents for Ronix 8904

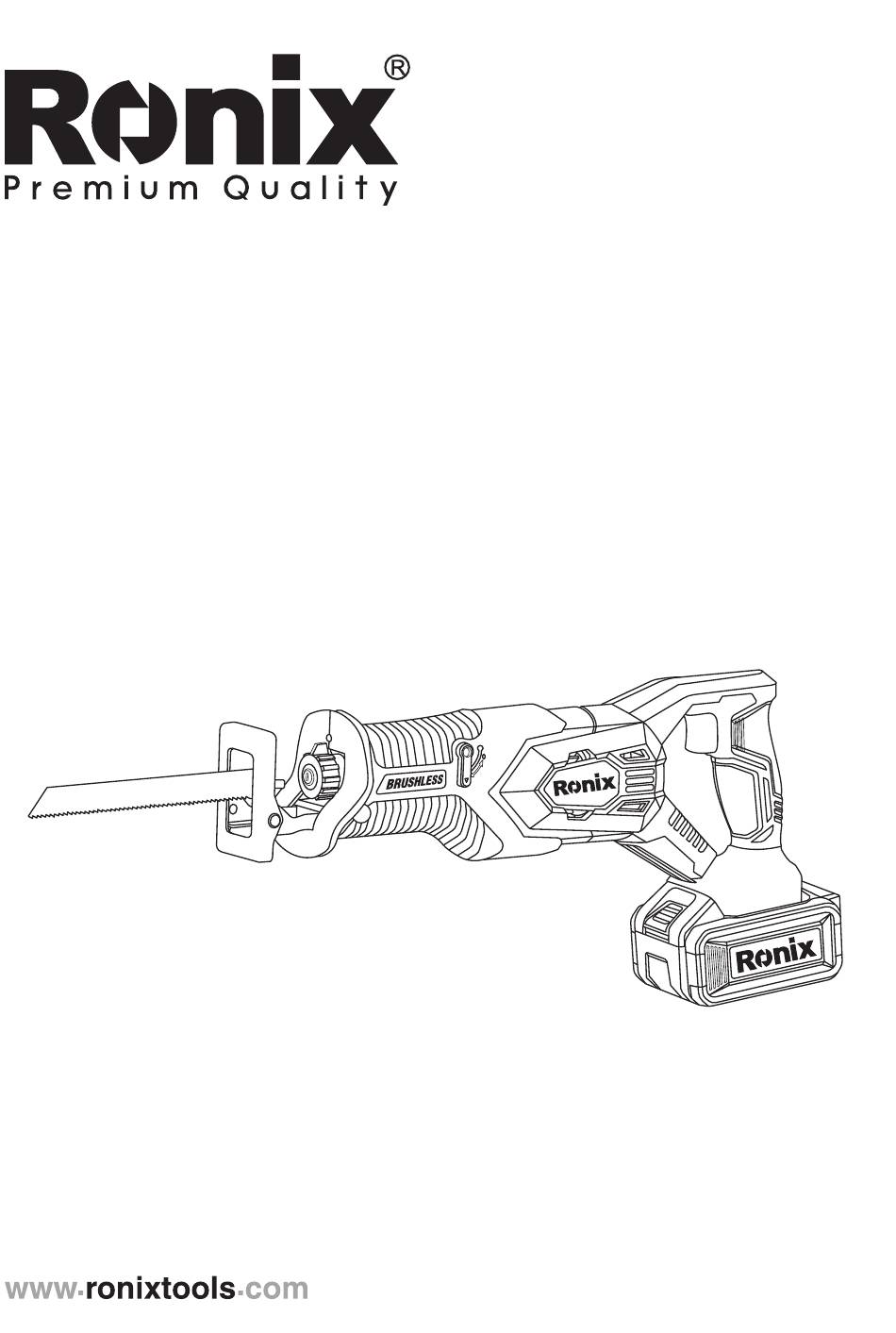

- Page 1 BRUSHLESS CIPROCATING SAW 8904...
-
Page 3: Specification
SPECIFICATION 8904 Model Brushless Motor Type Battery Voltage Battery Chemistry Li-Ion this code no battery(it can use 2.0Ah or Battery Capacity 4.0Ah battery) No-Load Speed 0-3000SPM Cutting Depth 150mm in wood 10mm in soft metal Stroke Length 20mm Max. Capacity in Wood... - Page 4 WARNING: WEAR EAR PROTECTION. VIBRATION The vibration total value (tri-axial vector sum) determined ccording to EN62841: Work mode: cutting boards. Vibration emission (ah,B): 15.541 Uncertainty (K): 1.5 Work mode: cutting wooden beams Vibration emission (ah,WB) 19.186 Uncertainty (K) : 1.5 NOTE The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool...
-
Page 5: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool. -
Page 6: Personal Safety
of electric shock. 6) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. PERSONAL SAFETY 1) Stay alert, watch what you are doing and use common sense when operating a power tool. - Page 7 POWER TOOL USE AND CARE 1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. 2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Page 8 like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. 4) Under abusive conditions, liquid may be ejected from the battery; avoid contact.
- Page 9 8) Make sure the blade is not contacting the workpiece before the switch is turned on. 9) Keep hands away from moving parts. 10) Do not leave the tool running. Operate the tool only when hand-held. 11) Always switch off and wait for the blade to come to a complete stop before removing the blade from the workpiece.
- Page 10 (1) Do not touch the terminals with any conductive material. (2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current breakdown.
-
Page 11: Functional Description
FUNCTIONAL DESCRIPTION CAUTION Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. INSTALLING OR REMOVING BATTERY CARTRIDGE CAUTION Always switch off the tool before installing or removing of the battery cartridge. - Page 12 seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. CAUTION Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. INDICATING THE REMAINING BATTERY CAPACITY ONLY FOR BATTERY CARTRIDGES WITH 1.
-
Page 13: Switch Action
SWITCH ACTION CAUTION Before installing the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. NOTICE Do not use the lock/speed change lever while the tool is running. The tool may be damaged. -
Page 14: Adjusting The Shoe
NOTE Use a dry cloth to wipe the dirt off the lens of the lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination. ADJUSTING THE SHOE When the recipro saw blade loses its cutting in one place along its cutting edge, reposition the shoe to utilize a sharp, unused portion of its cutting edge. - Page 15 Always clean out all chips or foreign matter adhering to the blade and around the blade clamp. Failure to do so may cause tightening of the blade, resulting in a serious injury. To install the recipro saw blade, always make sure that the blade clamp lever (part of the blade clamp sleeve) is in released position on the insulation cover before inserting the recipro saw blade.
- Page 16 saw blade may be ejected unexpectedly during operation. This can be extremely dangerous. To remove the recipro saw blade, rotate the blade clamp lever in the direction of the arrow fully. The recipro saw blade is removed and the blade clamp lever is at the released position . 2.
-
Page 17: Operation
OPERATION CAUTION against the workpiece during operation. If the shoe is removed or held away from the workpiece during operation, strong vibration and/or twisting will be produced, causing the blade to snap dangerously. CAUTION Always wear gloves to protect metal. CAUTION Be sure to always wear suitable eye protection which conforms with current national standards. - Page 18 BRUSHLESS CIPROCATING...
