Summary of Contents for Ronix 8669

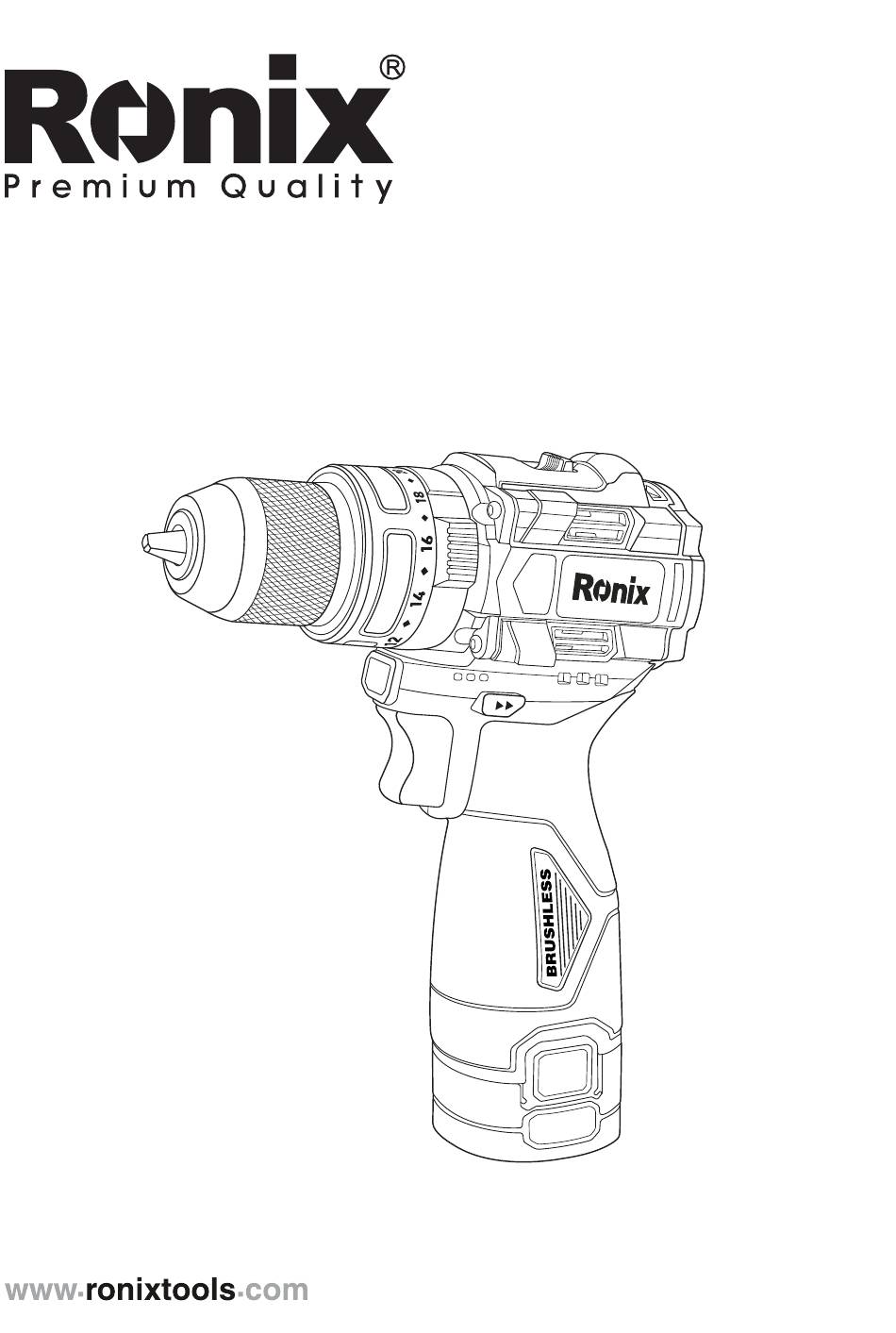

- Page 1 16V BRUSHLESS CORDLESS IMPACT DRILL 50N.m 8669 1 6 V...
-
Page 3: Specifications
SPECIFICATIONS Model 8669 Battery Type Lithium-ion Battery Capacity 16V/2000mAh Chuck Type Keyless Chuck Chuck Size 10mm 0-450RPM No-Load Speed 0-2000RPM Impact Rate 0-30000BPM Max Torque 50N·m Max Capacity In Wood 25mm Max Capacity In Metal 10mm Max Capacity In Concrete... -
Page 4: Parts List
PARTS LIST Function Change Speed Regulator Keyless Chuck Reverse / Forward Switch Button Switch Trigger 1 6 V Battery Pack 16V BRUSHLESS CORDLESS IMPACT DRILL 50N.m... -
Page 5: Electrical Safety
READ THE INSTRUCTION MANUAL BEFORE USE! PURPOSE: Read all safety warnings, instructions, and regulations provided with the electric tool. Failure to follow the instructions listed below rnay result in electric shock, fire and/or serious injury. Keep all warnings and instructions for reference. The term “electric tool”... -
Page 6: Personal Safety
- When using electric tools outdoors, always use proper extension cords suitable for outdoors. This will reduce the risk of electric shock. - If it is impossible to avoid operating your electric tools in a humid environment, use a residual current device (RCD) for protection. Using an RCD can reduce the risk of electric shock. - Page 7 collection equipment, ensure that it is well connected and properly used. The use of dust collection devices can reduce the danger caused by dust. - Don't take it lightly because of the familiarity generated by frequent use of tools, and ignore the safety rules of tools. A careless action may cause serious injury in an instant.
- Page 8 pack (if detachable). This protective safety measure reduces the risk of accidental starting of the power tool. - Store unused electric tools outside the reach of children and do not allow people who are unfamiliar with electric tools and do not understand these instructions to operate electric tools.
- Page 9 with the other end. Short circuit at the end of the battery pack may cause combustion or fire. - Under abuse conditions, the liquid may spill from the battery pack; Avoid contact. In case of accidental contact with liquid, flush with water. If liquid in case of eye contact, you should also seek medical help.
- Page 10 after operation. They can be very hot and cause skin burns. - Please be sure to stand firm. When using tools at heights, make sure that there is no one below. - Appropriate tightening torque may vary with the type or size of bolts. Use a torque wrench to confirm the torque.
- Page 11 Please follow local regulations on how to dispose of waste batteries. - Use the battery only for the products specified by RONIX. Installing the battery to an incompatible product will cause fire, overheating, explosion or electrolyte leakage.
-
Page 12: Function Description
do so may result in tool or battery pack failure or malfunction - Make sure the battery is away from children. WARNING Please use only the original battery The use of non original batteries or modified batteries may lead to battery explosion, resulting in fire, personal injury or damage to goods. - Page 13 WARNING Please hold the tool and battery pack tightly when installing or removing the battery pack. Otherwise, they may slip from your hands, causing damage to tools and battery packs, and even personal injury. Push Button Battery Pack 1 6 V Figure 1 When removing the battery pack, press the button located on the front side of the battery pack and pull it out of the tool at the same time.
-
Page 14: Overload Protection
TOOL/BATTERY PROTECTION SYSTEM This tool is equipped with a tool/battery protection system. The system can automatically cut off the power to prolong the life of tools and batteries. During operation, if the tool or battery is under the following conditions, the tool will automatically stop running. -
Page 15: Green Indicator
DISPLAYS THE REMAINING POWER OF THE BATTERY Press the stepless speed change switch to display the remaining battery power, and the indicator will light up for several seconds. GREEN INDICATOR Indicator light on type The light is on Twinkle 67%-100% Remaining power 33%-67% 1 6 V... -
Page 16: Switch Operation
- LED continuously flashes for 6 times: protection against sudden power failure - LED full flash for 8 consecutive times: overvoltage protection - LED flashes for 9 consecutive times: forward and reverse switching abnormal protection SWITCH OPERATION Forward and reverse switch Button WARNING Be sure to confirm the rotation direction of the tool before operation. -
Page 17: Battery Pack
FREE SWITCHING OF THREE FUNCTION Screw Out Function Horizontal Drilling Function Impact Function BATTERY PACK HOW TO USE AND MAINTAIN THE BATTERY PACK Protect the battery pack from moisture. The battery pack must be stored in an environment of o to 45 degrees Celsius. Do not leave the battery pack in the car during summer. -
Page 18: Battery Pack Charging
opened and the machine will stop rotating. DISPOSAL OF WASTE BATTERY PACKS To protect natural resources, please properly recycle or dispose of the battery pack. The battery contains lithium battery. Please consult the relevant local authorities for information on recycling (/or) treatment. After the battery pack is discharged, remove the battery pack and wrap the terminal with strong adhesive tape to avoid short circuit and leakage. - Page 19 8.0Ah 240 minutes for the fully depleted battery to recharge at the temperature of 0-45 °C. NTC temperature monitoring device is installed on the battery. When the temperature level is between 5 and 40 degrees Celsius, the battery can be charged. Therefore, it can greatly prolong the service life of the battery.
