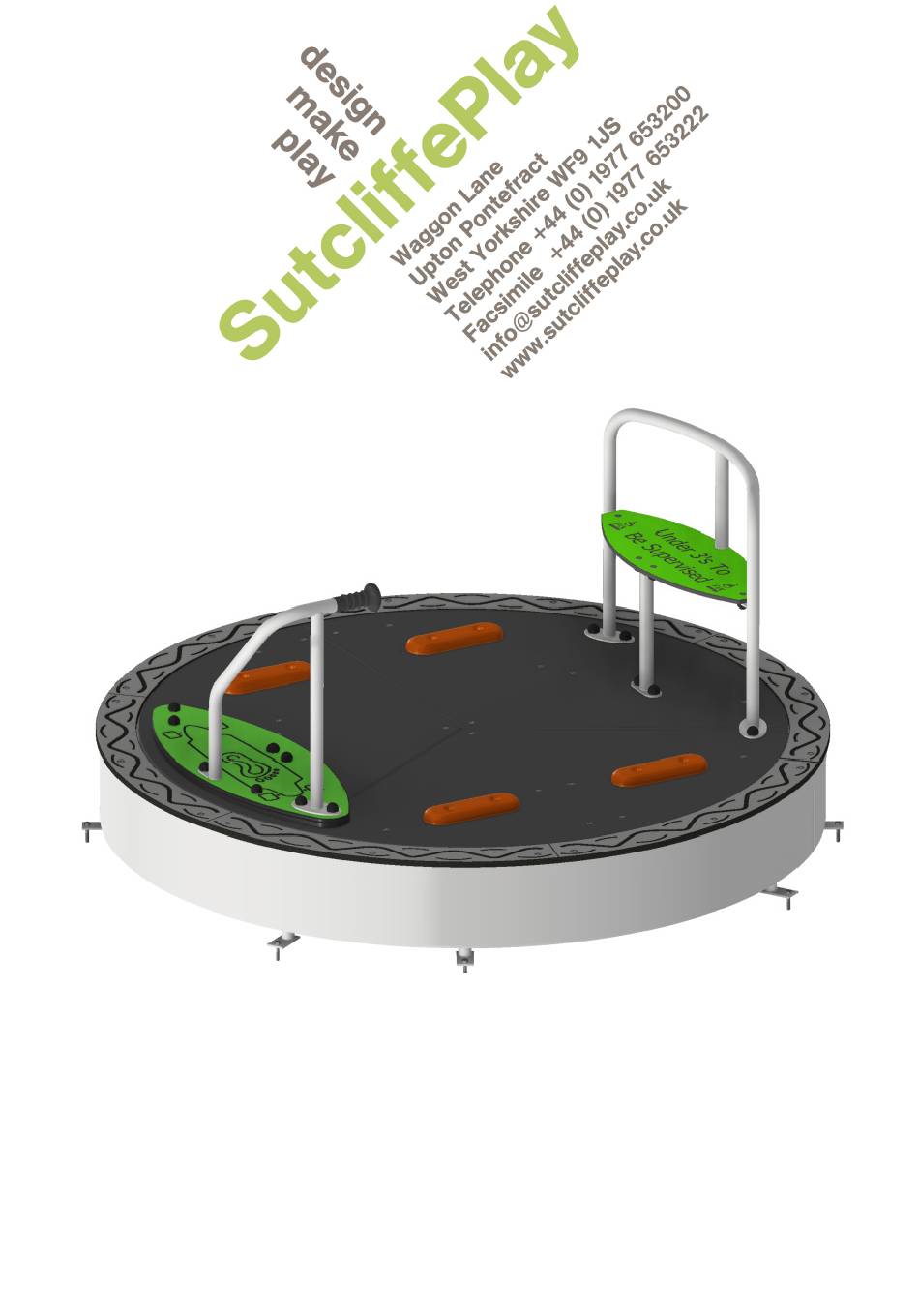

- Page 1 Inclusive Scooter Roundabout SIR050 Installation Instructions Rev 02...
-
Page 2: Important Note
SIR050 Inclusive Scooter Roundabout Installation Instructions THIS IS A THREE STAGE INSTALLATION. IMPORTANT NOTE: STAGE 1: CENTRAL GROUND FIXING LEVELLED AND CONCRETED. STAGE 2: CONCRETE RAFT LEVELLED AND SET. STAGE 2: FULL ASSEMBLY AFTER CONCRETE IS FULLY SET. Read the following pages thoroughly for detailed installation instructions. - Page 3 SIR050 Inclusive Scooter Roundabout Installation Instructions 1. Check using the parts list that all components have been delivered. 2. Plan the final position of the play equipment, ensuring there is sufficient space NB: Please consider the extent and HIC of surfacing (see surfacing plan).
- Page 4 SIR050 Inclusive Scooter Roundabout Installation Instructions 10. STAGE 2 Pour concrete raft to the underside of the ground fixing plate. Allow to set (5-7 days). 11. STAGE 3 Secure the bearing housing (SIR056) and the inner frame (SIR003) / perimeter ring (SIR002) to the ground fixing. Then attach inner deck boards in order to set the outer support ring/ perimeter boards.
- Page 5 SIR050 Inclusive Scooter Roundabout Parts List Central Ground fixing x 1 Deck Board (A) (SIR053) (SIR005) Deck Board (B) Deck Board (C) (SIR006) (SIR007) Outer Ring Support Frame x 1 (SIR059) Rev 02 Page 4...
- Page 6 SIR050 Inclusive Scooter Roundabout Parts List Frame and Bearing Outer Ring Assembly x 1 Decks x 6 (SIR058) (SIR051) HPL Seat x 1 Seat Support x1 Seat Frame x1 (SIR008) (SIR013) (SIR011) Scooter Handlebars x 1 Scooter Board x 1...
- Page 7 SIR050 Inclusive Scooter Roundabout Parts List Scooter Spacer Board x 1 Fixing Kit x1 (SIR058) (SIR050F) Rev 02 Page 6...
- Page 8 SIR050 Inclusive Scooter Roundabout Raft Installation Steps To be used in conjunction with Plan drawings provided: Note: At each stage the concrete must dry before moving forward. SIR053 to be initally concreted in at the bottom to stop any movement whilst pouring concrete raft.
- Page 9 SIR050 Inclusive Scooter Roundabout General Assembly of Parts SIR058 LKN320 WSR040 Code Description SIR058 Frame & Bearing Assembly LKN320 M10 Nyloc Nut WSR040 M10 Plain Washer Rev 02 Page 8...
- Page 10 SIR050 Inclusive Scooter Roundabout General Assembly of Parts MCS321 x18pcs Rev 02 Page 9...
- Page 11 SIR050 Inclusive Scooter Roundabout General Assembly of Parts Code Description SIR059 Outer Frame SIR051 Outer Deck Panel MCS321 M10 x 35 Countersunk Rev 02 Page 10...
- Page 12 SIR050 Inclusive Scooter Roundabout General Assembly of Parts M10 Chem Fix Bolt Rev 02 Page 11...
- Page 13 SIR050 Inclusive Scooter Roundabout General Assembly of Parts MCS321 LKN320 DZS005 MCS321 DZS009 HSS510 HSS514 Code Description MCS321 M10 x 35 CSK Bolt DZS009 M10 Step Washer LKN320 M10 Nyloc Nut HHB518 M10 x 50 Bolt HSS514 M10 x 40 Bolt...
- Page 14 SIR050 Inclusive Scooter Roundabout General Assembly of Parts SIR016 DZS009 HSS514 HSS522 DZS005 SIR052 HHB530 SIR057 Code Description SIR016 Scooter Handle Bars SIR052 Scooter Board SIR057 Scooter Spacer Board DZS009 M10 Step Washer DZS005 M10 Nut Cover HHB530 M10 x 80 Bolt...
- Page 15 SIR050 Inclusive Scooter Roundabout Maintenance Instructions NB: The warranty is invalidated if these instructions are not followed. All wood needs annual inspection and retreatment where required. Recommended Regular Inspection and Maintenance Interval Days Check stability of structure, tighten connections if required.
