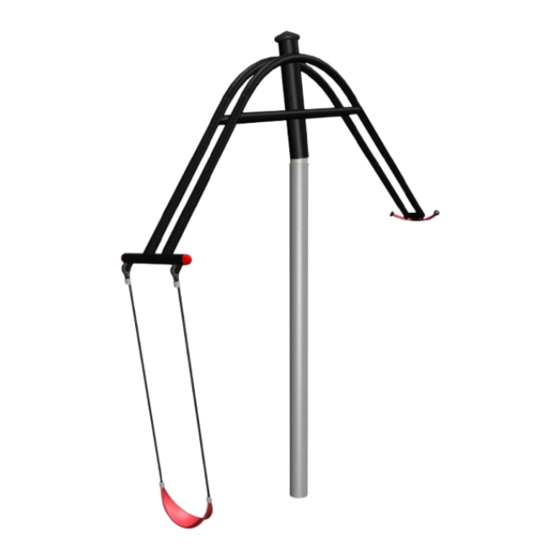

SWD400 Sling Shot
Installation Instructions
Sheet 1 of 2
The site must be level to maintain critical dimensions.
Play level
Concrete Required
800 x 800 x 750mm
Leave 200mm between the
concrete and play level
800mm
Scale 1:200

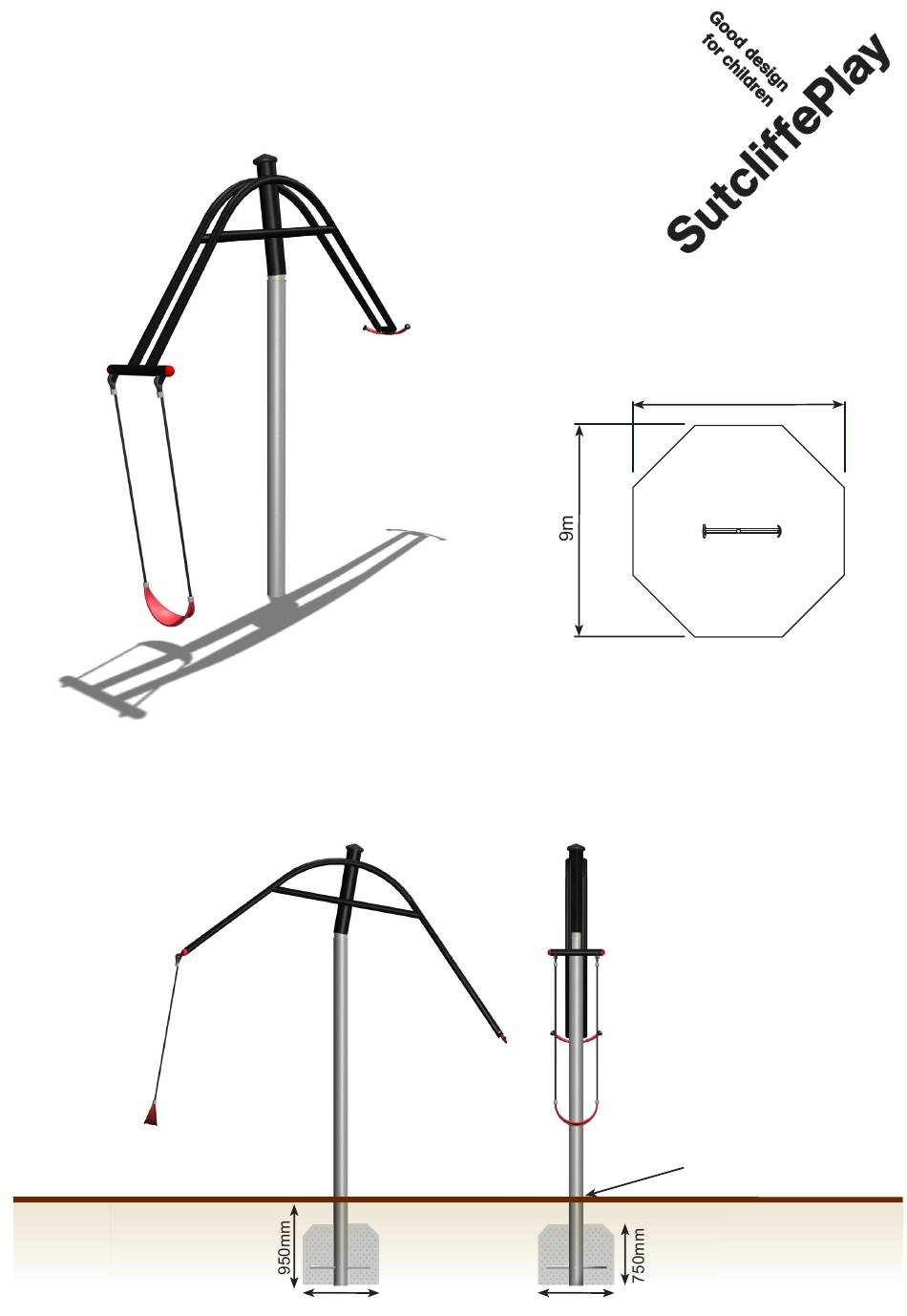

Space requirements
1.
Safety surface recommended 64m
2.
Length of the safety perimeter 22.4m.
3.
HIC 2.4m.
Line up ground markings on
post with play level before
adding concrete
Chamfer all edges and
corners on the concrete
block.
800mm
9m
2
.
Advertisement
Table of Contents
Related Manuals for Sutcliffe Play SWD400
Summary of Contents for Sutcliffe Play SWD400
- Page 1 SWD400 Sling Shot Installation Instructions Sheet 1 of 2 Scale 1:200 Space requirements Safety surface recommended 64m Length of the safety perimeter 22.4m. The site must be level to maintain critical dimensions. HIC 2.4m. Line up ground markings on post with play level before...
- Page 2 SWD400 Sling Shot Installation Procedure Sheet 2 of 2 Installation Procedure Plan the final position of the play equipment ensuring there is enough space*. Excavate the foundation hole in accordance with the drawing**. Insert the spragging irons and install the post using the correct amount of concrete. Ensure that the post is vertical and the ground level mark is set correctly.
- Page 3 SWD400 Sling Shot Maintenance Instructions NOTE The warranty is invalidated if these instructions are not followed. Recommended Regular Inspection and Maintenance Check stability of structure, tighten connections if required. Interval (days) Check all uprights at ground level for corrosion and/or rot.
