SWD050
Installation Instructions
Sheet 1 of 6 Rev 01
Weight
Base Ring 60kg
Centre Frame 180kg
Total weight 420kg
Concrete Required
1 Ring 200 x 200mm
1 Block 300 x 300 x 500mm
Total 0.4m3
350mm
500mm

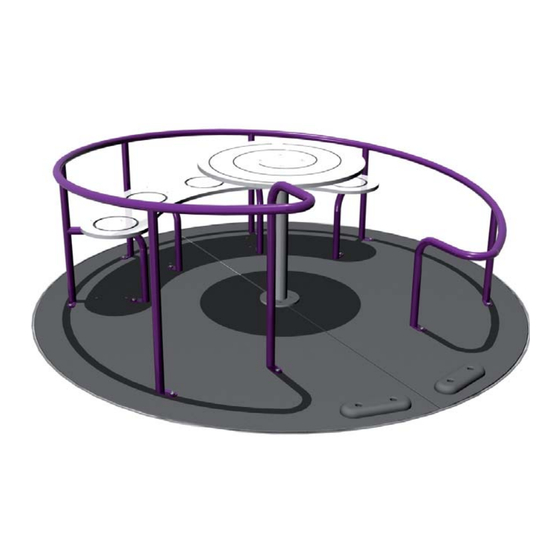

Inclusive Roundabout
Foundation Diameter 2850mm
Roundabout Diameter 2450mm
Play level
Safety surfacing
Concrete Ring
MOT Type 1
Well Draining
Sub-soil
Upper Outer Ring
Lower Outer Ring
200mm
Centre Post
concrete foundation.
Advertisement
Related Manuals for Sutcliffe Play SWD050
Summary of Contents for Sutcliffe Play SWD050
- Page 1 SWD050 Inclusive Roundabout Installation Instructions Sheet 1 of 6 Rev 01 Weight Safety surfacing Base Ring 60kg Centre Frame 180kg Total weight 420kg Concrete Ring Concrete Required 1 Ring 200 x 200mm 1 Block 300 x 300 x 500mm Total 0.4m3...
- Page 2 SWD050 Inclusive Roundabout ve Roundabout Installation Instructions ctions Sheet 2 of 6 Rev 01 v 01 SWD076 SWD079GAL SWD062 SWD052GAL SWD078GAL SWD076 Parts List Required Tools Description Qty. Code Ref Tape Measure Spirit Level Base Ring SWD052GAL Digging Implements Top Assembly...
-
Page 3: Installation Procedure
SWD050 Inclusive Roundabout Installation Instructions Sheet 3 of 6 Rev 01 Installation Procedure 11. Ensure the roundabout rotates freely. The gap between the edge of the inner ring to the outer rings should be no more than 8mm but must also not touch. Tighten the bolts securing the top outer rings. - Page 4 SWD050 Inclusive Roundabout Outer Gap Adjustment Instructions Sheet 4 of 6 Rev 01 To gain access underneath the roundabout for adjustment, first remove the 4 countersunk screws from the centre pole and remove it. Secondly, remove all of the security screws on the outer...
- Page 5 SWD050 Inclusive Roundabout Outer Gap Adjustment Instructions Sheet 5 of 6 Rev 01 LKN320 WSR040 WSR040 HSS510 Pack gap out with washers if needed. The outer ring is in four quarters, each quarter can be adjust- ed seperatly to increase or decrease the gap To adjust the outer ring, the frame and top borading of the roundabout will need to be removed, as described prevously.
- Page 6 SWD050 Inclusive Roundabout Maintenance Instructions Sheet 6 of 6 Rev 01 NOTE The warranty is invalidated if these instructions are not followed. Recommended Regular Inspection and Maintenance Interval (days) Check stability of handrail and centre pole, tighten connections if required.
