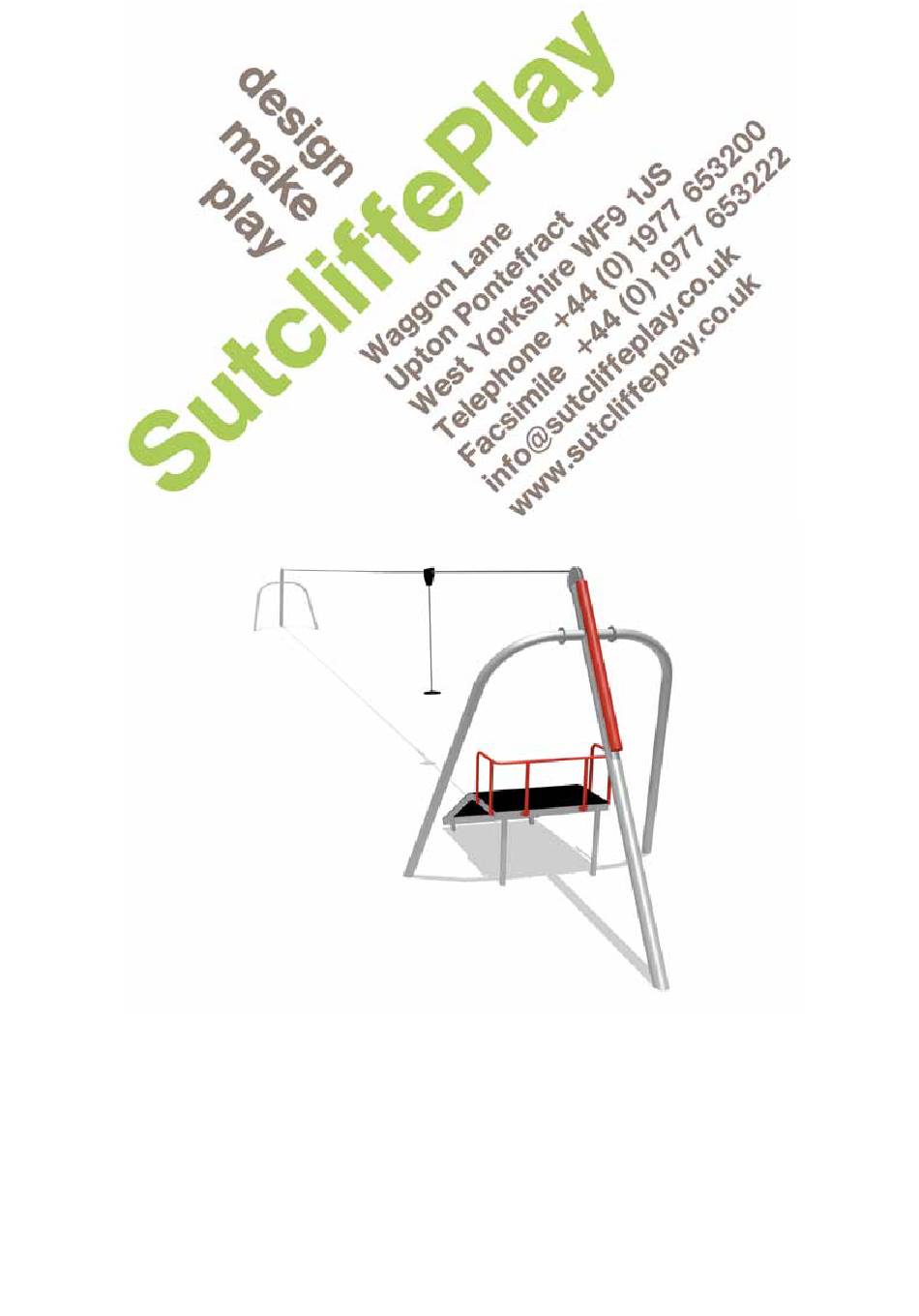

- Page 1 Cableway Installation Instructions CAR035R Rev 05 Page 1...
-
Page 2: Installation Instructions
Check using the Parts List and Fixing Kit List that none of the components are missing. If any parts are missing please contact our Sales Office. Plan the final position of the Cableway ensuring that there is sufficient space. See the Ground Plan for recommended impact area in accordance with EN1176-4. - Page 3 CAR035R Cableway Installation Instructions Slide the Long Brake Spring, followed by the Cable Trolley, followed by the Short Brake Spring onto the Cable, the Cable Trolley has a braking system, the chain connector must be pulled down to thread the Cable, ensure the plastic end guards are in place at each end of the Cable Trolley.
- Page 4 CAR035R 35M Cableway Ramp Type Parts List ILLUSTRATION CODE DESCRIPTION CAB010GAL LONG LEG START CAB015GAL STATION POST CAB020GAL SHORT LEG CAB025GAL STATION POST FOUNDATION CAB030GAL TUBE ADJUSTER CAB057R COVER FIXING CAM035F Rev 05 Page 4...
- Page 5 CAR035R 35M Cableway Ramp Type Parts List ILLUSTRATION CODE DESCRIPTION RAMP CAB107GAL FRAME ASSY RUBBER TZA090 FLOOR PANEL RUBBER CAB108 FLOOR PANEL RAMP CAB110 FLOOR ASSY RAMP CAB112 1 PAIR HANDRAIL ASSY RAMP CAB109GAL FIXING CAB100F Rev 05 Page 5...
- Page 6 CAM035F 35M Cableway Ramp Type Fixing Kit ILLUSTRATION CODE DESCRIPTION ILLUSTRATION CODE DESCRIPTION M10 x 30 FIX155 WSR040 SECURITY WASHER SCREW M10 x 75 LG HHB528 WSR050 HEX HEAD WASHER BOLT M12 x 35 HSS615 WSR190 HEX HEAD WASHER SCREW...
- Page 7 CAM035F 35M Cableway Ramp Type Fixing Kit ILLUSTRATION CODE DESCRIPTION CABLEWAY CAB001 TROLLEY 1.5M START CAB002 SECTION BRAKE SPRING 3.0M END CAB003 SECTION BRAKE SPRING ADJUSTER CAB050 CABLEWAY SRE600 PENDULUM SEAT ASSY Rev 05 Page 7...
- Page 8 CAR100F Ramp Fixing Kit ILLUSTRATION CODE DESCRIPTION ILLUSTRATION CODE DESCRIPTION M10 NUT M10 NYLOC DZS005 LKN320 COVER NUT COVER JOINING DZS009 SSW111 WASHER M10 x 30 FIX155 WSR040 SECURITY WASHER SCREW M12 x 35 HSS615 WSR430 HEX HEAD WASHER SCREW SADDLE FIX195 FIXING TOOL...
- Page 9 CAR035R Cableway Installation Instructions POSTS AND LEGS BUILD UP FIG 1 HSS615 WSR050 LKN330 CAB010GAL START LEG CAB020GAL END LEG PLACE START STATION LEGS AND END STATION LEGS INTO FOUNDATION HOLES 800 x 800 x 1000 DEEP. CONCRETE TO A...
- Page 10 CAR035R Cableway Installation Instructions RAMP BUILD UP FIG 2 WSR436 HSS615 CAB107GAL SSW111 PLACE RAMP LEGS INTO FOUNDATION HOLES 400 x 400 x 615 DEEP. CONCRETE CAB109GAL TO A DEPTH OF 500 FIX155 WSR430 TZA090 CAB107GAL DZS009 LKN320 DZS005 FIX THE HANDRAIL INTO...
- Page 11 CAR035R Cableway Installation Instructions HHB699 WSR190 CAB025GAL LKN340 CAB035 CAB007 CAB003 SEE NOTE CAB020GAL IMPORTANT NOTE ENSURE THAT THE CORRECT BRAKE END STATION SPRING IS FITTED. THE END STA- FIG 3 TION SHOULD BE FITTED WITH THE LONG BRAKE SPRING CAB003.
- Page 12 CAR035R Cableway Installation Instructions IMPORTANT NOTE ENSURE THAT THE FOUR WIRE ROPE GRIPS ARE FITTED IN THIS ORIENTATION, WITH THE BRIDGE PART ON THE WORKING SIDE OF CABLE. SPACING BETWEEN THE GRIPS TO BE 50MM. CAB042 START STATION FIG 5...
- Page 13 CAR035R Cableway Maintenance Instructions NOTE The warranty is invalidated if these instructions are not followed. Recommended Regular Inspection and Maintenance Interval Days Check stability of structure, tighten connections if required. Check all uprights at ground level for corrosion and/or rot.
