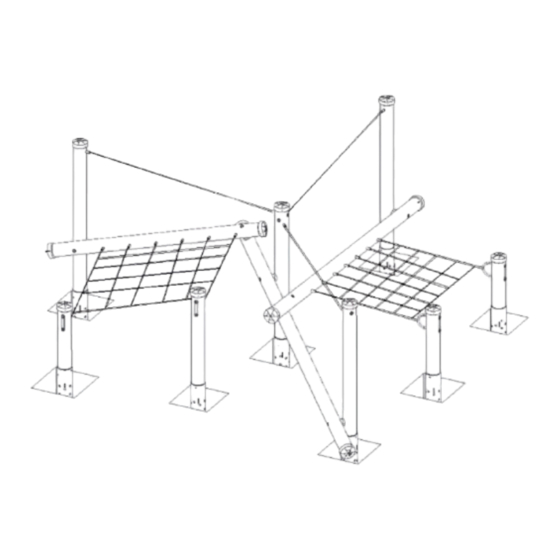

- Page 1 Orchard Twin Tangle Installation Instructions ORW800 Rev 03 Page 1...
- Page 2 ORW800 Twin Tangle Installation Instructions Read all instructions carefully before starting the assembly. Check using the parts list and fixing kit list that none of the components are mssing. If any parts are missing contact our Sales Office. Plan the final position of the play equipment ensuring there is sufficient space. See the ground plan for recommended safety surfacing area and critical fall heights to EN1176.
- Page 3 Rev 03 Page 3...
- Page 4 ORW800 POST CAPS GROUND FIXINGS Rev 03 Page 4...
- Page 5 ORW800 Rev 03 Page 5...
- Page 6 ORW800 NET FIXING Rev 03 Page 6...
- Page 7 ORU800F Fixing Kit STOCK CODE DESCRIPTION M16 x 120 HEX HEAD BOLT HHB720 M16 x 260 HEX HEAD BOLT HHB770 M10 x 80 COACH SCREW HSS530 M16 NYLOC NUT LKN340 TIMBER RUBBER SPACER ORS001 41 DIA RUBBER LOG PLUG ORS002 ORCHARD RUBBER POST CAP ORS003 SPACER RING ZINC PLATED...
- Page 8 ORU800F Fixing Kit STOCK CODE DESCRIPTION M16 U BOLT ZINC PLATED CZA138ZP Rev 03 Page 8...
- Page 9 Orchard Post Assembly Order STAGE 1 OPU800-01 OPU800-08 OPU800-02 OPU800-07 OPU800-07 OPU800-03 OPU800-01 OPU800-06 OPU800-04 OPU800-05 OPU800-08 OPU800-06 OPU800-05 OPU800-02 OPU800-03 OPU800-04 STAGE 2 OPU800-11 X ON THIS END OF LOG Rev 03 Page 9...
- Page 10 Orchard Post Assembly Order STAGE 3 X ON THIS END OF LOG OPU800-09 OPU800-10 STAGE 4 FIT ALL ACTIVITYS Rev 03 Page 10...
- Page 11 ORW800 Twin Tangle Maintenance Instructions NOTE The warranty is invalidated if these instructions are not followed. All wood needs annual inspection and retreatment where required. Recommended Regular Inspection and Maintenance Interval Days Check stability of structure, tighten connections if required. Check all uprights at ground level for corrosion and/or rot.
