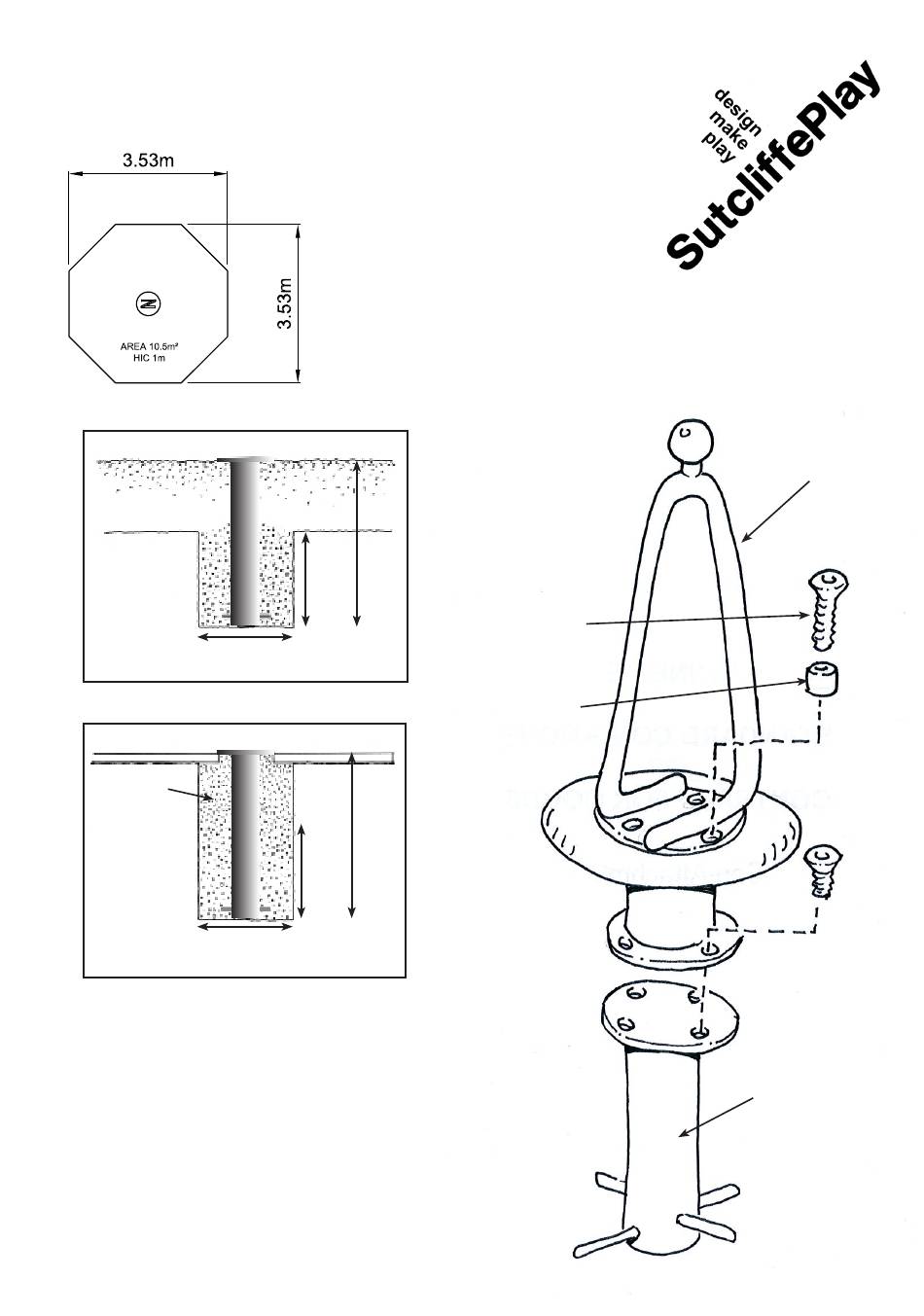

SWD380 Cherry Twist
Installation Instructions
Foundation for loose fill surfacing
Play level
Loose fill
Foundation for wet pour/tiles/grass mat
Play level
Loose fill
The site must be level to
maintain critical dimensions.
700
400
2
400
concrete
700
400
400
2
concrete
Fixing Screw
MCS428 X 4
Spacer
PZT183 X 4
Cherry Twist
Code: SWD380
Sheet 1 of 2
A Frame
Fixing Screw
MCS406 X 4
Ground Fixing
Advertisement
Related Manuals for Sutcliffe Play Cherry Twist SWD380
Summary of Contents for Sutcliffe Play Cherry Twist SWD380
- Page 1 SWD380 Cherry Twist Installation Instructions The site must be level to maintain critical dimensions. Cherry Twist Code: SWD380 Sheet 1 of 2 Foundation for loose fill surfacing Play level A Frame Loose fill Fixing Screw MCS428 X 4 concrete Foundation for wet pour/tiles/grass mat Spacer PZT183 X 4 Play level...
- Page 2 Cherry Twist Installation procedure Plan the final position of the play equipment ensuring there is enough space*. Excavate the foundation hole in accordance with the drawings . Position the ground fixing assembly in the foundation hole and fill to the required depth with concrete. Ensure that the ground fixing is level.
- Page 3 SWD380 Cherry Twist Maintenance Instructions Recommended Regular Inspection and Maintenance Interval (days) Check stability of structure, tighten connections if required. Check all uprights at ground level for corrosion and/or rot. Replace any defective parts. Check all painted elements for damage, rub down and repaint or replace as required.
