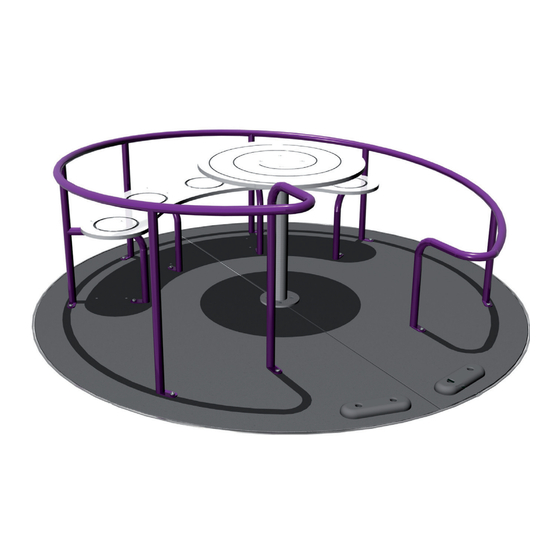

SWD030
Installation Instructions
Sheet 1 of 6 Rev 01
LEFT HAND BOARD
CODE:SWD089L
Weight
Base Ring 70kg
Centre Frame 180kg
Total weight 420kg
Concrete Required
1 Ring 200 x 200mm
1 Block 300 x 300 x 500mm
Total 0.4m3
350mm
500mm
Inclusive Roundabout
Foundation Diameter 2850mm
Roundabout Diameter 2450mm
Play level
Safety surfacing
Concrete Ring
MOT Type 1
RIGHT HAND BOARD
CODE:SWD089R
Well Draining
Sub-soil
Upper Ring Sections
Lower Ring Sections
200mm
Centre post concrete
foundation.
Advertisement
Related Manuals for Sutcliffe Play SWD030
Summary of Contents for Sutcliffe Play SWD030
- Page 1 SWD030 Inclusive Roundabout Installation Instructions Sheet 1 of 6 Rev 01 LEFT HAND BOARD RIGHT HAND BOARD CODE:SWD089L CODE:SWD089R Weight Safety surfacing Base Ring 70kg Centre Frame 180kg Total weight 420kg Concrete Ring Concrete Required 1 Ring 200 x 200mm 1 Block 300 x 300 x 500mm Total 0.4m3...
-
Page 2: Installation Procedure
SWD030 Inclusive Roundabout Installation Instructions Sheet 2 of 6 Rev 01 SWD076 SWD079 SWD032 SWD052BLK SWD078GAL SWD076 Parts List Required Tools Description Qty. Code Ref Tape Measure Spirit Level Base Ring SWD052BLK Digging Implements Top Assembly SWD032 Wrench 17mm Centre Pole Assembly... - Page 3 SWD030 Inclusive Roundabout Installation Instructions Sheet 3 of 6 Rev 01 Installation Procedure 8. Install the lower part of the centre pole. It's important that this is vertical, exactly in the centre of the ring, and the top surface is level with the top of the stainless steel upper ring sections.
- Page 4 SWD030 Inclusive Roundabout Outer Gap Adjustment Instructions Sheet 4 of 6 Rev 01 To gain access underneath the roundabout for adjust- ment, first remove the 4 countersunk screws from the centre pole and remove it. Secondly, remove all of the security screws on the outer...
- Page 5 SWD030 Inclusive Roundabout Outer Gap Adjustment Instructions Sheet 5 of 6 Rev 01 M10 Adjuster screws Ref HSS510 Gap to be maximum 8mm Upper ring section Before the safety surface is laid the upper ring sections can be adjusted if required.
- Page 6 SWD030 Inclusive Roundabout Maintenance Instructions Sheet 6 of 6 Rev 01 NOTE The warranty is invalidated if these instructions are not followed. Recommended Regular Inspection and Maintenance Interval (days) Check stability of handrail and centre pole, tighten connections if required.
