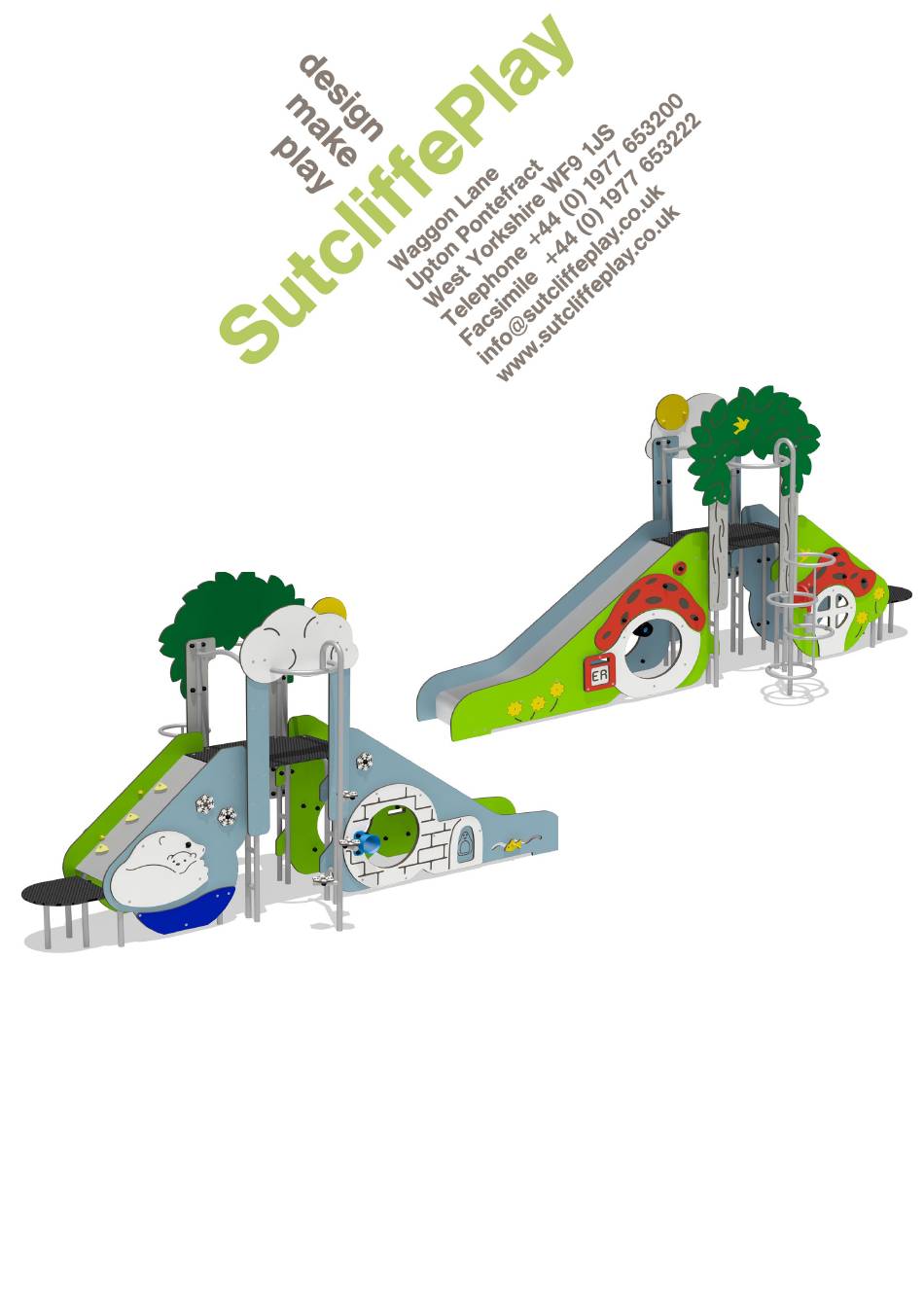

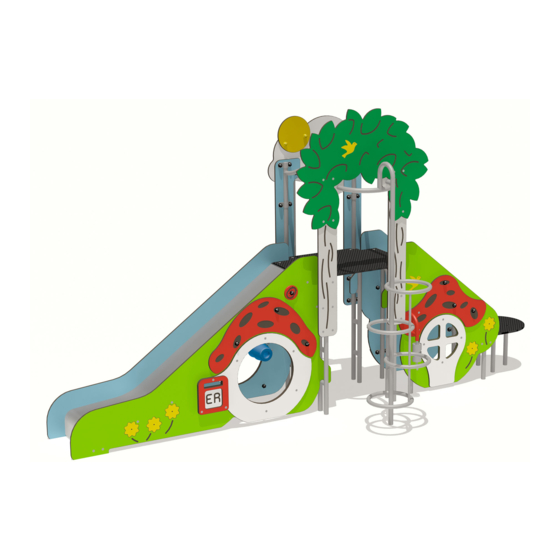

- Page 1 Mushroom/Igloo Themed Unit THU002 Installation Instructions Rev 03 Page 1...
-
Page 2: Installation Instructions
THU002 Themed Unit Installation Instructions 1. Check using the parts list that all components have been delivered. 2. Plan the final position of the play equipment, ensuring there is sufficient space NB: Please consider the extent and HIC of surfacing (see surfacing plan). - Page 3 THU002 Themed Unit Installation Instructions 10. The ring climber (THF140GRY) and the step climber (THF145GRY) can now be positioned in their foundation holes and bolted to their respective panels (ring climber to tree trunks, step climber to cloud). THP060 panels can now be bolted to the plates of the step climber.
- Page 4 THU002 Themed Unit Framework List THS102 Slide Assembly THF121 THD010 MCS350 PED302 MSL002 THF001GRY THF145GRY THF140GRY THD001 Rev 03 Page 4...
- Page 5 THU002 Themed Unit Panels and Parts List - Mushroom Side THA046 THP047 THP048 THA049 THP044 THP045 MZA157 Rev 03 Page 5...
- Page 6 THU002 Themed Unit Panel List - Igloo Side THP059 THP051 THP050 THP060 THP057 THP055LB THP054LB THP058 THP056 Rev 03 Page 6...
- Page 7 THU002 Themed Unit Panel Assembly THP050 THP044 THP051 THP045 THP054LB THA046 THP055LB NB: These items are designed for spinning, please use fixings in accordance with the 'Panel Assembly General Sheet' supplied. THP056 THA047 THP048 THP057 MZA157 THP058 THP059 THA049 Rev 03...
- Page 8 THU002 Themed Unit Parts List THD001 THF121 THF145 THD010 THF001 THS102 THF140 Code Description THS102 Seaside slide full assembly THF001 Steel main frame (grey) THD001 Hexaboard deck THF140 Ring climber (grey) THF145 Step climber (grey) THD010 Transfer deck full assembly...
- Page 9 THU002 Themed Unit Maintenance Instructions NB: The warranty is invalidated if these instructions are not followed. All wood needs annual inspection and retreatment where required. Recommended Regular Inspection and Maintenance Interval Days Check stability of structure, tighten connections if required.
