SIM7075G User Manual V1.00
2. Package Information
2.1 Pin Assignment Overview
All functions of the SIM7075G will be provided through 102 pads that will be connected to the customers'
platform. The Figure 2 is the pin assignment of the SIM7075G.

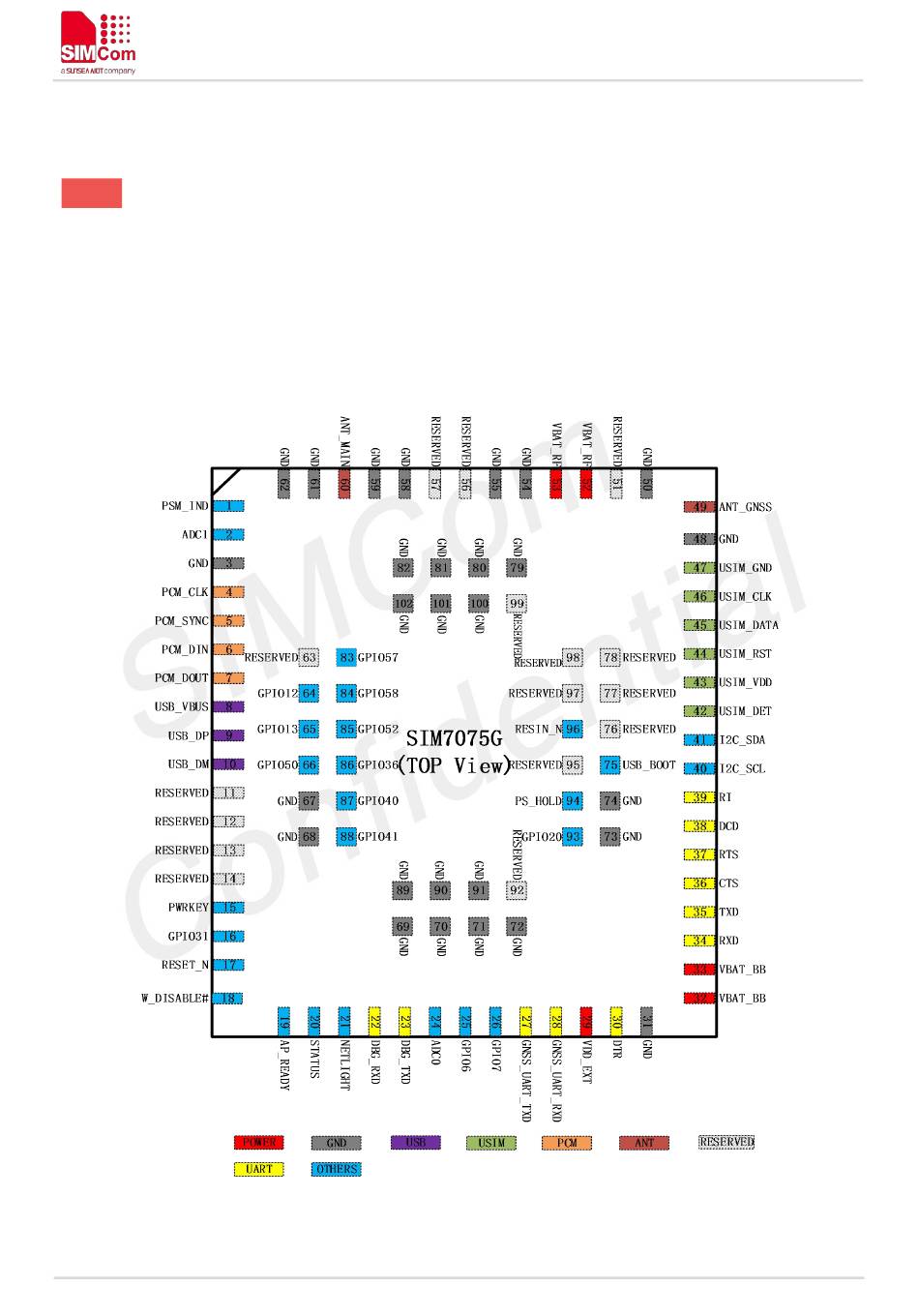

Figure 2: Pin assignment overview
www.simcom.com
12 / 74
