3. Interface Application
3.1 Power Supply
Pin 32, pin 33 and pin 52, pin 53 are VBAT power input.
On VBAT pads, when module works on CAT-M1 mode, the ripple current is up to 0.6A typically. For steady
voltage, the power supply capability must be up to 0.5A.
On VBAT pads, when module works on EDGE or GPRS mode, The ripple current is up to 2A typically. For
steady voltage, the power supply capability must be up to 2A. in order to avoid the voltage dropped down
more than 300mV, the load capacitor on VBAT pads must be up to 300uF.

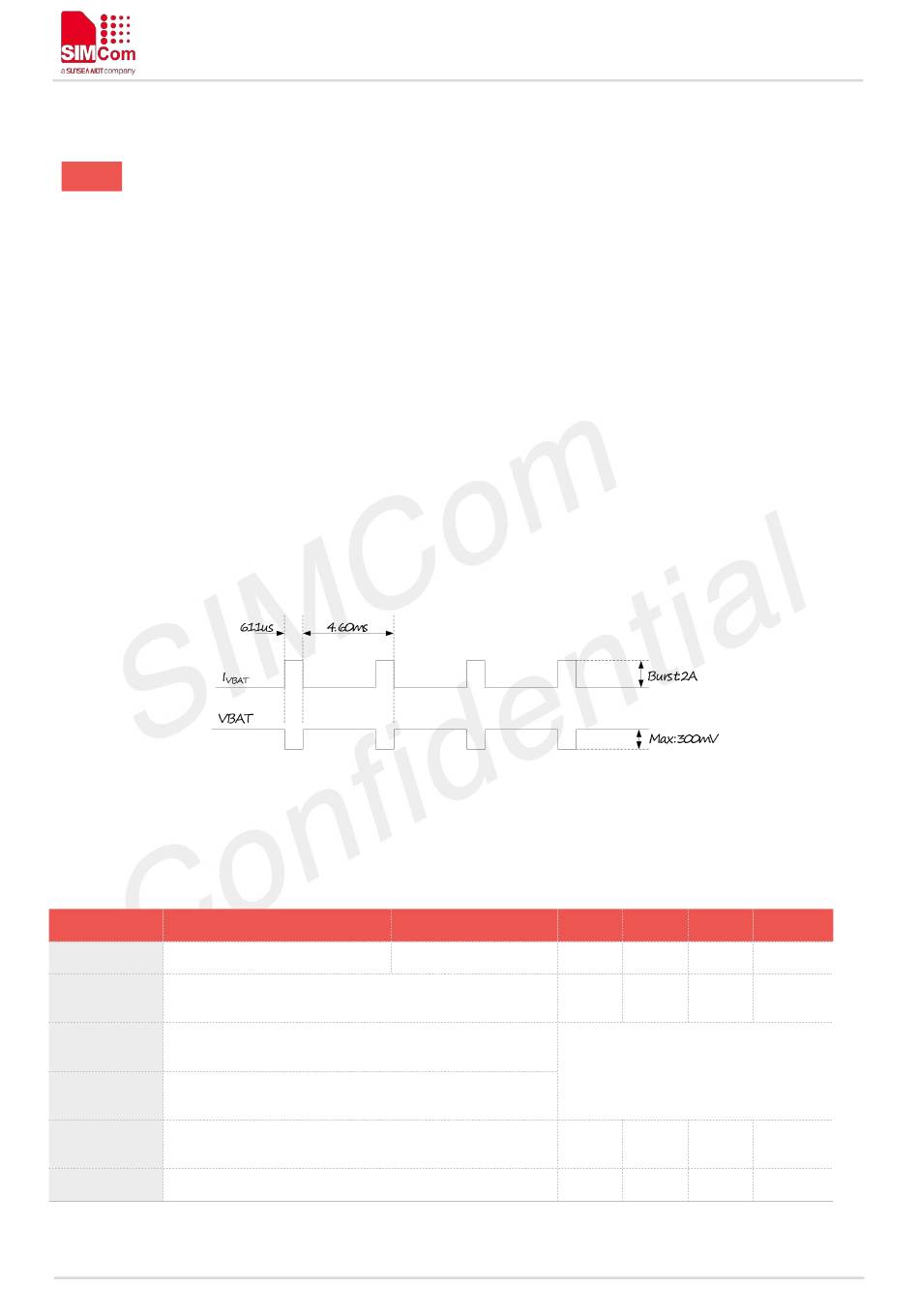

The figure 5shows the VBAT voltage ripple wave at the maximum power transmit phase in EDGE/GPRS
emission mode.
Table 6 describes the electrical characteristics of the VBAT pin and the current consumption of the module
in different modes.
Table 6: VBAT pins electronic characteristic
Symbol Description
VBAT Module power voltage
Module power peak current in CAT-M1 and NB-IoT
IVBAT(peak)
emission mode.
IVBAT(avera
Module power average current in normal mode
ge)
IVBAT(sleep
Power supply current in sleep mode
)
IVBAT(powe
Module power current in power off mode.
r-off)
IVBAT(PSM) Module power current in PSM mode.
