- Page 1 A7670E_TE KIT User Guide SIMCom Wireless Solutions Limited Building B, SIM Technology Building, No.633, Jinzhong Road Changning District, Shanghai P.R. China Tel: 86-21-31575100 support@simcom.com www.simcom.com...
- Page 2 A7670E_TEKIT_User Guide_V1.00 Document Title: A7670E_TEKIT_User Guide Version: 1.00 Date: 2020-10-20 Status: Released GENERAL NOTES SIMCOM OFFERS THIS INFORMATION AS A SERVICE TO ITS CUSTOMERS, TO SUPPORT APPLICATION AND ENGINEERING EFFORTS THAT USE THE PRODUCTS DESIGNED BY SIMCOM. THE INFORMATION PROVIDED IS BASED UPON REQUIREMENTS SPECIFICALLY PROVIDED TO SIMCOM BY THE CUSTOMERS.
- Page 3 A7670E_TEKIT_User Guide_V1.00 Version History Date Version Description of change Author Li Gaochao 2020-10-20 1.00 Original Guo Xiaojun www.simcom.com 3 / 13...
-
Page 4: Table Of Contents
A7670E_TEKIT_User Guide_V1.00 Contents Detail description of A7670E_TE......................7 2.TE Accessory..............................9 3.Installing TE on SIMCom EVB Board....................... 10 4.TE KIT USB Driver Installation........................11 5.Using SIMCom Serial Port Tool......................... 13 www.simcom.com 4 / 13... - Page 5 A7670E_TEKIT_User Guide_V1.00 Figure Index FIGURE 1: TE TOP VIEW................................7 FIGURE 2: TE BOTTOM VIEW...............................8 FIGURE 3: TE AND SIMCOM-EVB ACCESSORY......................10 FIGURE 4: A7670E DEVICES RECOGNIZED BY THE OPERATING SYSTEM..............11 FIGURE 5: BROWSE FOR THE DRIVERS.......................... 11 FIGURE 6: ALL DRIVERS INSTALLED..........................12 FIGURE 7: SIMCOM SERIAL PORT TOOL INTRODUCTION..................13 www.simcom.com 5 / 13...
- Page 6 A7670E_TEKIT_User Guide_V1.00 SCOPE THIS DOCUMENT DESCRIBES HOW TO TEST WITH A7670E_TE. WITH THIS DOCUMENT, USER CAN GET USEFUL INFO ABOUT OUR SIMCOM-EVB QUICKLY. THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. NOTE For testing, customer needs SIMCOM_EVB and TE KIT together. Therefore, customer should refer this document together with the SIMCOM_EVB KIT User Guide www.simcom.com 6 / 13...
-
Page 7: Detail Description Of A7670E_Te

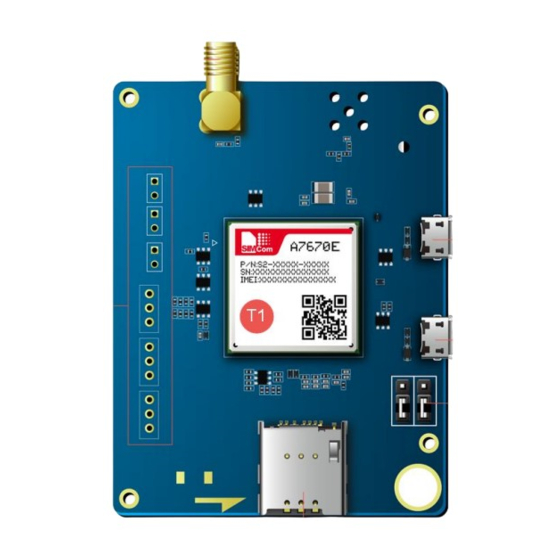

A7670E_TEKIT_User Guide_V1.00 1. Detail description of A7670E_TE Figure 1: TE Top View www.simcom.com 7 / 13... - Page 8 A7670E_TEKIT_User Guide_V1.00 Figure 2: TE Bottom View Attachment Label Description Module Main Antenna Connector Micro USB Connector Micro USB Connector UART Switch SIM Card Holder Test Point Connector (Connect to SIMCOM-EVB) Connector (Connect to SIMCOM-EVB) NOTE If UART Switch connected to above two pins by jumper，the debug UART will connect to EVB; If UART Switch connected to below two pins by jumper，the UART3 will connect to EVB.
-
Page 9: Te Accessory
A7670E_TEKIT_User Guide_V1.00 2.TE Accessory This TEKIT does not contain accessory. The main antenna is provided by the SIMCom EVB kit. www.simcom.com 9 / 13... -
Page 10: Installing Te On Simcom Evb Board
A7670E_TEKIT_User Guide_V1.00 3.Installing TE on SIMCom EVB Board TE Kits are designed to work with the EVB board and they are fitted like the following Figure 3. Figure 3: TE and SIMCOM-EVB Accessory www.simcom.com 10 / 13... -
Page 11: Te Kit Usb Driver Installation
A7670E_TEKIT_User Guide_V1.00 4.TE KIT USB Driver Installation Users can manually install USB driver by the following steps: 1. Use USB cable to connect your PC to the Micro-USB port on the TE board. There should be several SimTech A7670E devices listed under other devices in Device manager like the following Figure 4. Figure 4: A7670E Devices Recognized by the Operating System 2. - Page 12 A7670E_TEKIT_User Guide_V1.00 5. Repeat same procedure for each of the listed “Mobile AT Interface” devices under “Other devices” until Device Manager lists three SimTech devices under “Ports (COM & LPT) 6. Finally there are one SimTech device under Modems and two SimTech devices under Network Adapters as shown on Figure 6.
-
Page 13: Using Simcom Serial Port Tool
A7670E_TEKIT_User Guide_V1.00 5.Using SIMCom Serial Port Tool SIMCom has a serial port tool to test modules with AT Commands. Serial Port Tool can communicate with modules after opening COM Ports on list. On the following figure, every section of serial tool can be seen. Figure 7: SIMCom Serial Port Tool Introduction NOTE Driver: USB driver and Serial Port Tool can be obtained from local agents or SIMCom FAE.
