SIM7075G User Manual V1.00
2.3 Mechanical Information
Figure 3 depicts the mechanical dimensions of the SIM7075G and describes the length, width, height and
tolerance of the SIM7075G of modules.

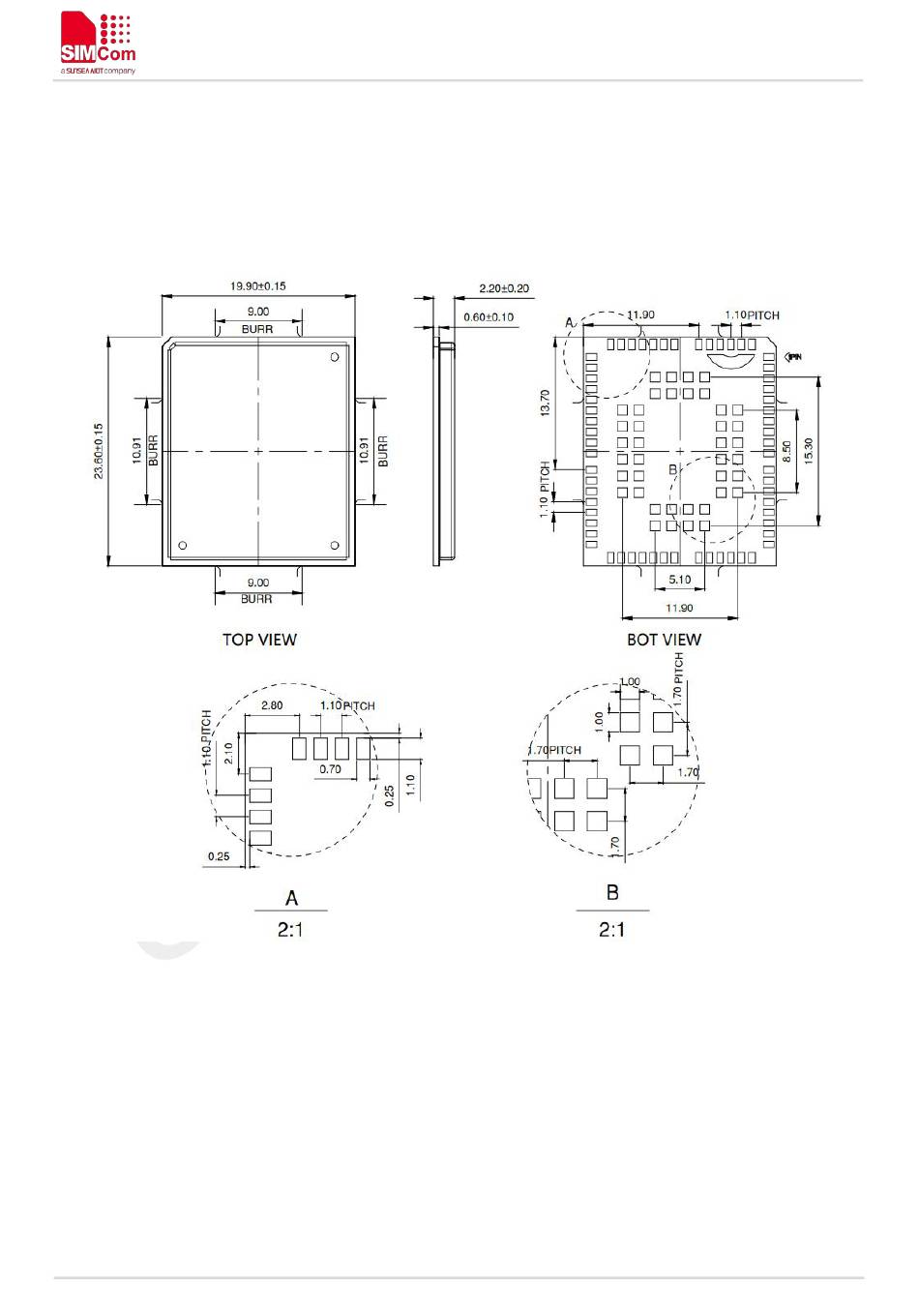

Figure 3: Dimensions (Unit: mm)
www.simcom.com
19 / 74
