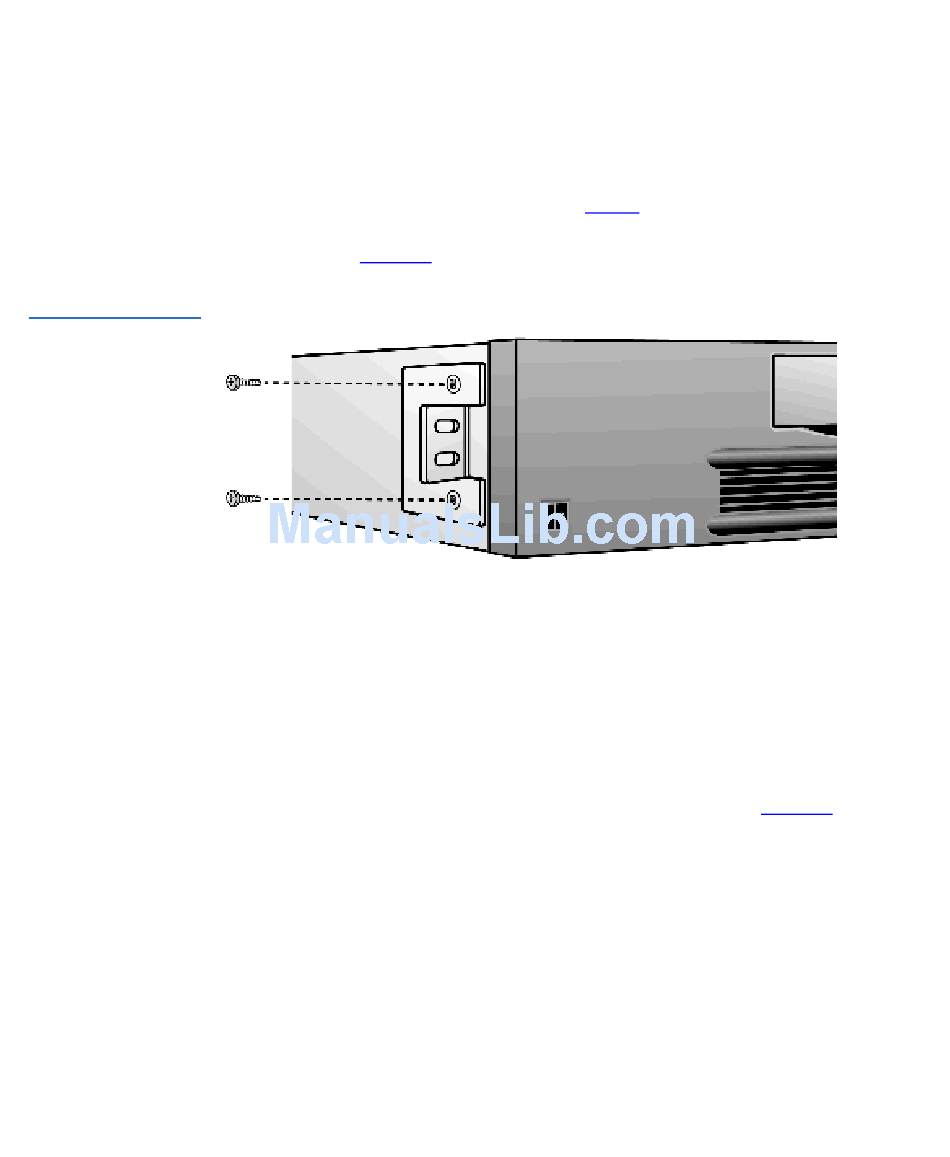

Figure 5 Installing Mounting Brackets (Left Side Shown) - Freecom VALUELOADER DLT User Manual

Installing the ValueLoader
Installing the ValueLoader into a Rack
Figure 5 Installing
Mounting Brackets
(Left Side Shown)
10 ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual
To install the ValueLoader, follow these steps:
Use a screwdriver to remove the two screws near the front on
1
each side of the ValueLoader.
Using the screws you removed in
2
bracket (from the rack kit) to each side of the ValueLoader, as
shown in figure
Using the screws and clip nuts from the rackmount hardware
3
package, secure one rail to each side of the rack in the location
in which you plan to install the ValueLoader.
• Be sure to secure both the front and rear of each rail to the
rack. The rails extend to fit a variety of rack depths.
• The correct orientation of the left rail is shown in
Repeat for the right rail.
step
5.
1, secure one mounting
figure 6.
