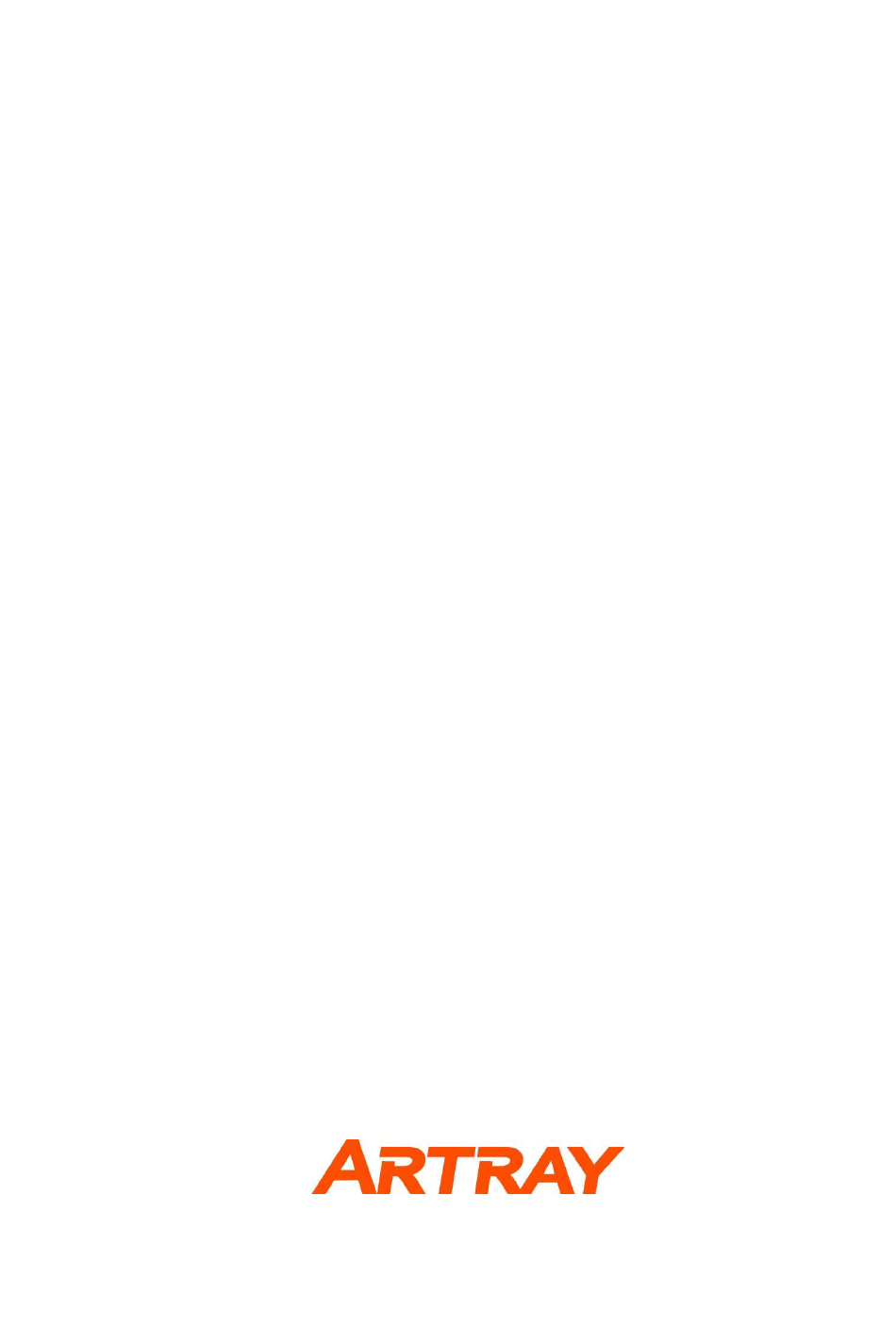

- Page 1 May 16, 2025 Ver1.03 USB3.0 UV CMOS Camera ARTCAM-9701UV INSTRUCTION BOOKLET 1.3 M Pixels ARTCAM-9701UV ARTRAY CO., LTD. - 1 -...
-
Page 2: Table Of Contents
7.2. Schematic Diagram of the Sensor ....................- 12 - Spectral Sensitivity Characteristics ....................- 13 - 8.1. ARTCAM-9701UV ........................- 13 - 8.2. UV Bandpass Filter (U340) (Optional) ..................- 13 - Systems Requirements ........................- 14 - 9.1. -
Page 3: Attention
1. Attention ■About this manual 1. Before using the camera, please read this manual thoroughly. 2. Please keep this manual reachable and always refer to the contents when needed. 3. Please contact us if the manual is lost or damaged. We will provide a replacement. 4. - Page 4 ■For Safe Use Warning ●Under the following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fire and electric shock. If the product is defective, please contact us for repair or replacement. For your safety, please do not disassemble, modify or repair the camera yourself. Please stop using the product and turn off the power immediately if: ・The camera emits smoke, becomes abnormally hot, or produces unusual smells or sounds.
- Page 5 For more details, please refer to the following link: Hardware Warranty: http://www.artray.us/download/artray_warranty.pdf ●We do not guarantee that the functions of this product or the descriptions on this manual are suitable for the customer's intended use or marketability.
-
Page 6: Introduction
2. Introduction ARTCAM-9701UV is an ultraviolet camera that has high sensitivity to the wavelength band between 200 nm to 1000 nm. Adopting USB3.0 interface, thus enables direct data transfer to PC without a capture card. 3. Main Features ⚫ UV Detection with High Sensitivity The adopted CMOS sensor has high sensitivity to the wavelength band between 200nm to 1000nm. -
Page 7: Connections
5. Connections 5.1. Connecting Method (an example) - 7 -... -
Page 8: Specifications
6. Specifications 6.1. Camera Specifications 6.1.1. Camera specification list Items Image pickup device Gpixel 1.3megapixel CMOS sensor GLUX9701BSI Number of total pixels 1344(H) × 1054(V) Number of effective pixels 1280(H) × 1024(V) Pixel Size 9.76(H) [µm] × 9.76(V) [µm] 12.49(H) × 9.99(V)[mm] Imaging area (Diagonal 15.994[mm], Approx.1 inch) Detection frequency band... -
Page 9: Functions Of Camera
6.2. Functions of camera 6.2.1. Gain setting This camera has two types of gain, both of which can be set on the software. Pixel Gain can switch between High Gain and Low Gain. PGA Gain corresponds to a gain range of 1.0× to 16.0× for values from 2 to 62, adjustable in 0.25× increments. -
Page 10: Trigger Timing (Optional)
6.4. Trigger Timing (Optional) Item Time 10μs or more Valid trigger input pulse From the rising edge of the external trigger input to the falling edge of Less than 1μs the vertical synchronous signal output to the sensor From the falling edge of Vsync to the falling edge of Hsync output to 1 CLK_PIX(27ns) the sensor... -
Page 11: Dimensional Outline
7. Dimensional Outline 7.1. Camera Dimensions Standard specifications Drawing of the base without a tripod mount External trigger specification (optional) Drawing of the base ※The dimension might be changed. without a tripod mount - 11 -... -
Page 12: Schematic Diagram Of The Sensor
7.2. Schematic Diagram of the Sensor - 12 -... -
Page 13: Spectral Sensitivity Characteristics
8.1. ARTCAM-9701UV 8.2. UV Bandpass Filter (U340) (Optional) ARTCAM-9701UV is possible to choose to install an additional filter U340, which can absorb visible wavelengths and only allow ultraviolet wavelengths to pass. Please refer to the following Spectral sensitivity line chart for detail. -
Page 14: Systems Requirements
One potential cause of the issue could be insufficient regulation of the power lines, which can result in a mismatch in data signal strength. * For inquiries regarding the recommended extension cable, please contact our sales department. (TEL: +81-3389-5488) ARTRAY CO., LTD. Obtained ISO 9001: 2015 2018/9/17 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel: +81-3-3389-5488 Fax: +81-3-3389-5486 Email: sales@artray.us...
