November 12, 2020
Ver0.98

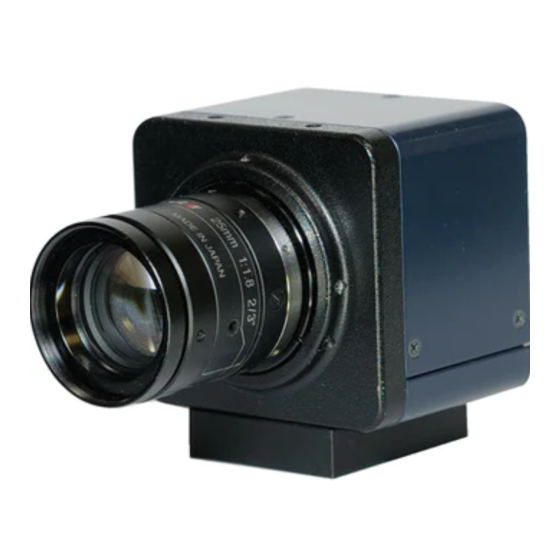

USB3.0 CMOS CAMERA
ARTCAM-265IMX-USB3-T2
INSTRUCTION BOOKLET
3.0M Pixels
ARTCAM-265IMX-USB3-T2 Series
ARTRAY CO., LTD.
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARTCAM-265IMX-USB3-T2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ARTRAY ARTCAM-265IMX-USB3-T2 Series

  • Page 1 November 12, 2020 Ver0.98 USB3.0 CMOS CAMERA ARTCAM-265IMX-USB3-T2 INSTRUCTION BOOKLET 3.0M Pixels ARTCAM-265IMX-USB3-T2 Series ARTRAY CO., LTD. - 1 -...
  • Page 2: Table Of Contents

    Contents Attention ............................- 3 - Introduction ............................- 6 - Features ............................- 6 - The Product............................- 6 - Connections ............................- 7 - Specifications ............................ - 8 - 6.1. Sensor Specifications......................... - 8 - 6.2. Camera Specifications ....................... - 8 - 6.3.
  • Page 3: Attention

    1. Attention ■About this manual 1. Before using the camera, please read this manual thoroughly. 2. Please keep this manual reachable and always refer to the contents when needed. 3. Please contact us if the manual is lost or damaged. We will provide a replacement. 4.
  • Page 4 ■For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own. Please stop using the product and turn off the power immediately when: ・The product becomes smoky or gets extremely hot on the surface, or makes unusual smells or sounds.
  • Page 5 To save the environment, we do not issue warranty in printed format. Instead, all records of the warranty periods, delivery dates and the customer information are well kept in our system. For more details, please refer to the sites below: Hardware Warranty: http: //www.artray.us/download/artray_warranty.pdf - 5 -...
  • Page 6: Introduction

    2. Introduction ARTCAM-265IMX-USB3-T2 series are USB3.0 CMOS cameras that designed for industrial use. Adopting USB3.0 interface, thus enables direct data transfer to PC without a capture card. 3. Features USB3.0 Interface  Adopting USB3.0 interface, thus enables direct data transfer to PC without a capture board or a host adapter card.
  • Page 7: Connections

    5. Connections Please connect the camera and the PC by using the attached USB3.0 cable. Camera’s power is supplied from USB Bus Power. - 7 -...
  • Page 8: Specifications

    6. Specifications 6.1. Sensor Specifications Items color monochrome ARTCAM-265IMX-BW-USB3-T2 Model ARTCAM-265IMX-USB3-T2 ARTCAM-265IMX-NIR-USB3-T2 Sensor Type CMOS Image Sensor Model IMX265LQR-C IMX265LLR-C Number Active Pixels 2064(H) x 1554(V) 7.12(H)×5.33(V)mm Active Image Size 1/1.8 Inch Scanning Progressive Scan mode Pixel Size 3.45(H)×3.45(V)μm Shutter Global Shutter Color Filter RGB Bayer Pattern...
  • Page 9: Camera's Functions

    6.3. Camera’s functions 6.3.1. Shutter Speed The exposure time (electronic shutter speed) of the camera can be set in 100μsec unit (1 line time resolution). The exposure time can be calculated by the following formula: Exposure time = the setting value of the shutter speed * 100μsec (Setting Range: 1~30000) The calculation formula for the 1 line time is different for every single mode.
  • Page 10: Analog + Digital Gain

    6.3.2. Analog + Digital Gain Analog gain and digital gain are installed in the sensor of this camera. For the set value [0~480] of the software, the floating range of the gain magnification changes from 0.0 dB to 48.0 dB. Formula for calculating the gain magnification: Gain [dB] = Gain’s set value / 10.0 [dB] When the setting value is over 240, the digital gain data becomes valid.
  • Page 11: Mirror Reversal

    6.3.4. Mirror Reversal The sensor utilized in this camera provides horizontal and vertical mirror reversal function. In a normal position (of no avail to both horizontal reversal and vertical reversal), the lower left corner of the direction in which the front of the camera is oriented is the origin (0, 0). When horizontally or vertically reversed, the Bayer setting of the software will be automatically converted.
  • Page 12: Region Of Interest (Roi)

    6.3.5. Region of Interest (ROI) It is possible to reduce unnecessary data as well as increasing frame rate by cutting out an arbitrary area in the effective pixel scope. The arbitrary area can be simply cut by specifying "starting point" and "effective pixels". ※The above image shows the positional relationship with the origin (0,0) in the upper left corner.
  • Page 13: Dimensional Outline

    7. Dimensional Outline 7.1. ARTCAM-265IMX-USB3-T2 Drawing of the base without a tripod mount - 13 -...
  • Page 14 Illustrations of the relationship between the Mount and the Sensor surface monochrome color The height of the light receiving surface when the PCB Board pasted is mounted - 14 -...
  • Page 15 Position Relationship Diagram between the sensor package and the light receiving surface H = 3.45[um] * 2048 = 7065 [um] V = 3.45[um] * 1536 = 5299 [um] Field of Vision: Lens versus Sensor(reference value) ※The ratios of sensor size (diagonal) to lens size in the above illustrations are as follows: 1/2 inch = φ8mm, 2/3 inch = φ11mm, 1 inch = 15.8mm Please note that the actual field of view varies depending on different lens.
  • Page 16: Spectral Sensitivity Characteristics (Reference Value)

    8. Spectral sensitivity characteristics (reference value) 8.1. ARTCAM-265IMX-USB3-T2(color model) 8.2. ARTCAM-265IMX-BW-USB3-T2(monochrome model) - 16 -...
  • Page 17: Ir Cut Filter(Color Model Only

    8.3. IR Cut Filter(color model only) Glass Material: White Board (B270) Reference refractive index 1.52 Thickness: 1.00mm (within a tolerance of ±0.1mm) 8.4. Characteristic of Visible Light Cut Filter Near-infrared model (NIR) is adopting R70 on visible cut filter. Please check the spectral sensitivity characteristic of image sensor as well. - 17 -...
  • Page 18: System Requirements

    What may cause the problem is that the regulation of the power lines becomes not enough, and so causes impudence mismatch on data signals. *For the recommended extension cable, please contact our sales department. (TEL: +81-3389-5488) ARTRAY CO., LTD. Obtained ISO 9001: 2015 2018/9/17 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel: +81-3-3389-5488 Fax: +81-3-3389-5486 Email: sales@artray.us...
