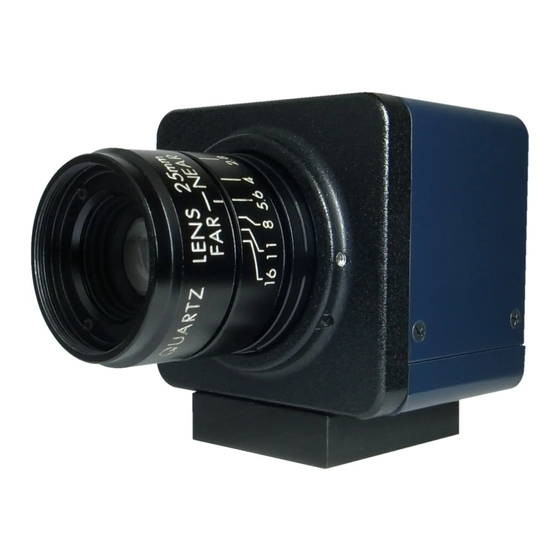

- Page 1 Mar 7, 2022 Ver1.00 USB3.0 UV CMOS Camera ARTCAM-9701UV INSTRUCTION BOOKLET 1.3 M Pixels ARTCAM-9701UV ARTRAY CO., LTD. - 1 -...
-
Page 2: Table Of Contents
Schematic Diagram of the Sensor ..................- 10 - 6.2. Camera’s Functions ........................- 10 - Spectral Sensitivity Characteristics ....................- 11 - 7.1. ARTCAM-9701UV .......................... - 11 - 7.2. UV Bandpass Filter（U340）(Optional） ................... - 11 - Systems Requirements ......................... - 12 - 8.1. -
Page 3: Attention
1. Attention ■About this manual 1. Before using the camera, please read this manual thoroughly. 2. Please keep this manual reachable and always refer to the contents when needed. 3. Please contact us if the manual is lost or damaged. We will provide a replacement. 4. - Page 4 ■For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own. Please stop using the product and turn off the power immediately when: ・...
- Page 5 For more details, please refer to the following link: Hardware Warranty: http://www.artray.us/download/artray_warranty.pdf ●We do not guarantee the functions of this product or the descriptions on this manual to be completely adapted to the users’...
-
Page 6: Introduction
2. Introduction ARTCAM-9701UV is an ultraviolet camera that has high sensitivity to the wavelength band between 200 nm to 1000 nm. Adopting USB3.0 interface, thus enables direct data transfer to PC without a capture card. 3. Main Features ⚫ UV Detection with High Sensitivity The adopted CMOS sensor has high sensitivity to the wavelength band between 200nm to 1000nm. -
Page 7: Connections
5. Connections 5.1. Connecting Method (an example) - 7 -... -
Page 8: Specifications
6. Specifications 6.1. Camera Specifications 6.1.1. Camera specification list Items Image pickup device Gpixel 1.3 megapixel CMOS sensor GLUX9701BSI Number of total pixels 1344(H) × 1054(V) Number of effective pixels 1280(H) × 1024(V) Pixel Size 9.76(H) [µm] × 9.76(V) [µm] 12.49(H)×9.99(V)[mm] Imaging area (Diagonal 15.994[mm], Approx.1 inch) -
Page 9: Dimensional Outline
6.1.2. Dimensional Outline Drawing of the base without a tripod mount - 9 -... -
Page 10: Schematic Diagram Of The Sensor
6.1.3. Schematic Diagram of the Sensor 6.2. Camera’s Functions Shutter speed setting You can set the exposure time (electronic shutter speed) of the camera. The exposure time on the software supports from 0.037 milliseconds to 2 seconds. - 10 -... -
Page 11: Spectral Sensitivity Characteristics
7.1. ARTCAM-9701UV 7.2. UV Bandpass Filter（U340）(Optional） ARTCAM-9701UV is possible to choose to install an additional filter U340, which can absorb visible wavelengths and only allow ultraviolet wavelengths to pass. Please refer to the following Spectral sensitivity line chart for detail. -
Page 12: Systems Requirements
8. Systems Requirements 8.1. Recommended System Requirements ●Host Controller This camera is applicable to USB 3.0. Connecting to USB 2.0 host controller may cause low-speed or failure to function properly. ●CPU computer architecture The driver of this camera is applicable to “x86”... - Page 13 ARTRAY CO., LTD. Obtained ISO 9001: 2015 2018/9/17 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel: +81-3-3389-5488 Fax: +81-3-3389-5486 Email: sales@artray.us URL: www.artray. us - 13 -...
