ARTRAY 1000MINI Series Instruction Booklet

ARTRAY 1000MINI Series Instruction Booklet

Usb2.0 cmos camera

Advertisement

Quick Links

November 25, 2022
Ver1.02
USB2.0 CMOS CAMERA
ARTCAM-1000MINI
INSTRUCTION BOOKLET
10.0M pixels
ARTCAM-1000MINI
ARTRAY CO., LTD.
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1000MINI Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ARTRAY 1000MINI Series

  • Page 1 November 25, 2022 Ver1.02 USB2.0 CMOS CAMERA ARTCAM-1000MINI INSTRUCTION BOOKLET 10.0M pixels ARTCAM-1000MINI ARTRAY CO., LTD. - 1 -...
  • Page 2: Table Of Contents

    CASED, USB CABLE DIRECT TYPE.................... - 11 - OPEN FRAME TYPE ........................- 12 - 7.2. Spectral Sensitivity Characteristics ....................- 13 - ARTCAM- 1000MINI series(Color model) .................. - 13 - 8.1. 8.2. ARTCAM-1000MINI-BW series (Monochrome model) ............. - 13 - System Requirements ..........................
  • Page 3: Attention

    1. Attention ■About this manual 1. Before using the camera, please read this manual thoroughly. 2. Please keep this manual reachable and always refer to the contents when needed. 3. Please contact us if the manual is lost or damaged. We will provide a replacement. 4.
  • Page 4 ■For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own. Please stop using the product and turn off the power immediately when: ・The product becomes smoky or gets extremely hot on the surface, or makes unusual smells or sounds.
  • Page 5 For more details, please refer to the following link: Hardware Warranty: http://www.artray.us/download/artray_warranty.pdf ●We do not guarantee the functions of this product or the descriptions on this manual to be completely adapted to the users’...
  • Page 6: Introduction

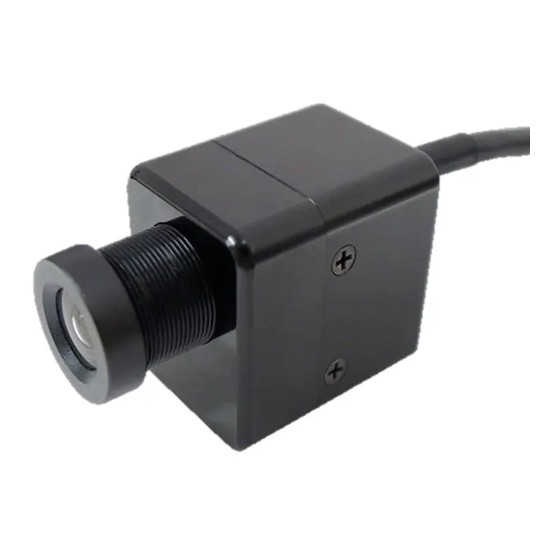

    2. Introduction ARTCAM-1000MINI is a CMOS camera for industrial use. This camera adopts USB2.0 interface, so the data can be delivered to a PC directly without a capture board. The mini size 20 x 25 x 25mm and light weight, it is suitable for the device integration. The open frame model of the structure that a sensor board and a USB board separated, it is suitable for various apparatus.
  • Page 7: The Product

    When developing image processing software, a software development kit that enables you to acquire Camera image acquisition and camera control are possible with other applications is included as standard. You can also download it from the website below. http://www.artray.us/download_sdk.html 4. The Product 4.1. Cased model(ARTCAM-1000MINI/1000MINI-BW)...
  • Page 8: Connections

    The shutter speed is set directly on the sensor register, so please refer to the following formulas for the real exposure time. Model Method 1000MINI series 5.3. Operation clock settings Users can switch the operation clock between 24MHz / 12MHz with the standard viewer software or SDK.
  • Page 9: Specifications

    6. Specifications 6.1. Color Model ARTCAM-1000MINI MODEL ARTCAM-1000MINI-OP Sensor Type CMOS Color Image Sensor Active Pixels 3856(H)×2764(V) Active Imager Size 6.41(H)×4.59(V)mm, 1/2.3” Scan Mode Progressive Scan Pixel Size 1.67(H)×1.67(V)μm Shutter Type Rolling Shutter Color Filter Array RGB Bayer Pattern Frame Rate 2.2fps Shutter Speed 1/3052~1.348s...
  • Page 10: Monochrome Model

    6.2. Monochrome Model ARTCAM-1000MINI-BW MODEL ARTCAM-1000MINI-BW-OP Sensor Type CMOS monochrome image sensor Active Pixels 3856(H)×2764(V) Active Imager Size 6.41(H)×4.59(V)mm, 1/2.3” Scan Mode Progressive Scan Pixel Size 1.67(H)×1.67(V)μm Shutter Type Rolling Shutter Frame Rate 2.2fps Shutter Speed 1/3052~1.348s Interface USB2.0 Bulk Transfer Synchronization System Internal Synchronization Board Lens Mount M12 P0.5(ARTCAM-1000MINI-BW)
  • Page 11: Dimensions

    7. Dimensions 7.1. CASED, USB CABLE DIRECT TYPE ARTCAM-1000MINI / ARTCAM-1000MINI-BW - 11 -...
  • Page 12: Open Frame Type

    7.2. OPEN FRAME TYPE ARTCAM-1000MINI-OP / ARTCAM-1000MINI-BW-OP - 12 -...
  • Page 13: Spectral Sensitivity Characteristics

    8. Spectral Sensitivity Characteristics 8.1. ARTCAM- 1000MINI series(Color model) 8.2. ARTCAM-1000MINI-BW series (Monochrome model) - 13 -...
  • Page 14: System Requirements

    9. System Requirements 9.1. Recommended System Requirements ●Host Controller This camera is applicable to USB 2.0. ●CPU The driver of this camera is applicable to computer architecture “x86” or “amd64”. The specification of CPU effects directly the imaging process speed, therefore it is highly recommended to utilize a high-end CPU if possible.
  • Page 15 ARTRAY CO., LTD. Obtained ISO 9001: 2015 2018/9/17 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel: +81-3-3389-5488 Fax: +81-3-3389-5486 Email: sales@artray.us URL: www.artray. us - 15 -...
