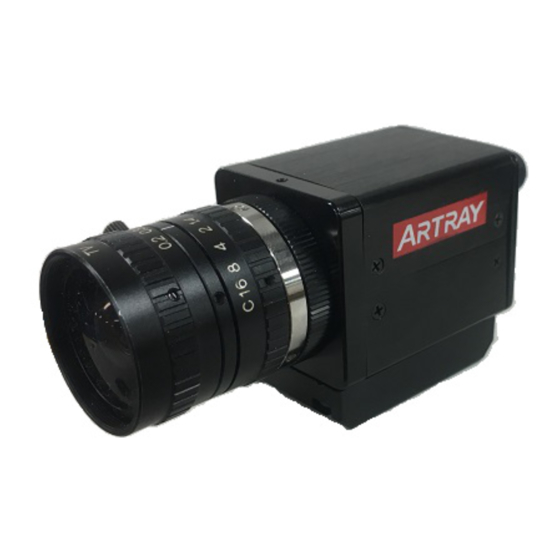

- Page 1 August 9, 2022 Ver1.00 USB2.0 CMOS CAMERA SMALL TYPE ARTCAM-0134AR-UVC Series INSTRUCTION BOOKLET 1.2M pixels ARTCAM-0134ARSS-UVC Series 1.2M pixels ARTCAM-0134ARMINI-UVC Series ARTRAY CO., LTD. - 1 -...
-
Page 2: Table Of Contents
Contents Attention ..............................- 3 - Introduction .............................. - 6 - Main Features ............................- 6 - The Product .............................. - 6 - Connections .............................. - 7 - 5.1. How to connect a camera ....................... - 7 - Specifications ............................- 9 - 6.1. -
Page 3: Attention
1. Attention ■About this manual 1. Before using the camera, please read this manual thoroughly. 2. Please keep this manual reachable and always refer to the contents when needed. 3. Please contact us if the manual is lost or damaged. We will provide a replacement. 4. - Page 4 ■For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own. Please stop using the product and turn off the power immediately when: ・...
- Page 5 For more details, please refer to the following link: Hardware Warranty: http://www.artray.us/download/artray_warranty.pdf ●We do not guarantee the functions of this product or the descriptions on this manual to be completely adapted to the users’...
-
Page 6: Introduction
2. Introduction ARTCAM-0134AR-WOM Series is CMOS cameras for industrial use. This series adopt USB2.0 interface, so the data can be delivered to PC directly without a capture board. With UVC support, it can be used on various platforms without being aware of drivers. 3. -
Page 7: Connections
5. Connections 5.1. How to connect a camera When used with general notebook PCs, desktop PCs, etc. Connect the camera and PC with the included USB2.0 cable (TYPE A – dedicated connector). When used on smartphones, tablets, etc., Connect a commercially available USB OTG compatible conversion cable, etc. to a smartphone, etc., and connect the USB A Type receptacle terminal to the included USB 2.0 cable. - Page 8 When connecting multiple cameras, connect a USB hub with a USB OTG compatible cable and a USB A-B cable, then connect the USB hub and camera with the included USB 2.0 cable. *In this configuration, when charging the smartphone side, the HUB and smartphone must support the ACA-Dock standard.
-
Page 9: Specifications
6. Specifications 6.1. Color Model ARTCAM-0134ARSS-UVC ARTCAM-0134ARSS-UVC-OP ARTCAM-0134ARMINI-UVC-OP ARTCAM-0134ARSS-UVC-OP-CM Sensor Type CMOS Color Image Sensor Active Pixels 1280(H)×960(V) 4.86(H)×3.66(V)mm(Effective 4.80mm x 3.60mm) Active Imager Size 1/3” Scan Mode Progressive Scan Pixel Size 3.75(H)×3.75(V)μm Shutter Type Global Shutter Color Filter Array RGB Bayer Pattern YUV : 7.5fps (1280 x 960)、YUV : 10.0fps (1280 x 720) Frame Rate... -
Page 10: Monochrome Model
6.2. Monochrome Model ARTCAM-0134ARSS-BW-UVC ARTCAM-0134ARSS-BW-UVC-OP ARTCAM-0134ARMINI-BW-UVC-OP ARTCAM-0134ARSS-BW-UVC-OP-CM Sensor Type CMOS Monochrome Image Sensor Active Pixels 1280(H)×960(V) 4.86(H)×3.66(V)mm(Effective 4.80mm x 3.60mm) Active Imager Size 1/3” Scan Mode Progressive Scan Pixel Size 3.75(H)×3.75(V)μm Shutter Type Global Shutter YUV : 7.5fps (1280 x 960)、YUV : 10.0fps (1280 x 720) Frame Rate YUV : 30.0fps (640 x 480)、MJPEG : 30.0fps (1280 x 960) MJPEG : 60.0fps (1280 x 720)、MJPEG : 54.0fps (640 x 480) -
Page 11: Camera Function
6.3. Camera function Setting default item remarks range value Brightness -64～64 adjust the brightness contrast 0～255 adjust the contrast Vividness 0～255 adjust the saturation sharpness 0～4 Adjust sharpness correction 48～144 Adjust gamma value gamma (4 step) γ = set value / 100, when set to 100 γ = 1.00 5100 2800～6500 White balance... -
Page 12: Output Resolution Setting
Standard property screen for Windows 7 and later *Depending on the PC environment, a unique property screen may be displayed. 6.4. Output resolution setting The camera supports the following three output resolutions. *For 640x480 (VGA) output, the entire screen is reduced by the binning function. 6.5. -
Page 13: Dimensions
7. Dimensions 7.1. ARTCAM-0134ARSS-UVC/0134ARSS-BW-UVC - 13 -... -
Page 14: Artcam-0134Arss-Uvc-Op/0134Arss-Bw-Uvc-Op
7.2. ARTCAM-0134ARSS-UVC-OP/0134ARSS-BW-UVC-OP 7.3. ARTCAM-0134ARSS-UVC-OP-CM/0134ARSS-BW-UVC-OP-CM - 14 -... -
Page 15: Artcam-0134Armini-Uvc/0134Armini-Bw-Uvc
7.4. ARTCAM-0134ARMINI-UVC/0134ARMINI-BW-UVC - 15 -... -
Page 16: Spectral Sensitivity Characteristics
8. Spectral Sensitivity Characteristics 8.1. ARTCAM-0134ARSS-UVC/0134ARMINI-UVC（Color model） 8.2. ARTCAM-0134ARSS-BW-UVC/0134ARMINI-BW-UVC（Monochrome Model） - 16 -... -
Page 17: System Requirements
9. System Requirements 9.1. Recommended System Requirements ●Host Controller This camera is applicable to USB 2.0. ●CPU The driver of this camera is applicable to computer architecture “x86” or “amd64”. The specification of CPU effects directly the imaging process speed, therefore it is highly recommended to utilize a high-end CPU if possible. - Page 18 ARTRAY CO., LTD. Obtained ISO 9001: 2015 2018/9/17 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel: +81-3-3389-5488 Fax: +81-3-3389-5486 Email: sales@artray.us URL: www.artray. us - 18 -...
