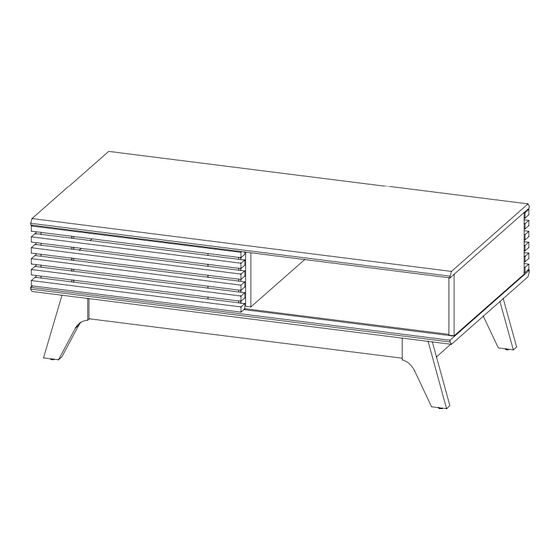

- Page 1 COFFEE TABLE ASSEMBLY INSTRUCTIONS AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
- Page 2 Equipment: phillips head screwdriver, flat head screwdriver and soft rubber hammer 2 x adults required 1m x 2m assembly space required 1 hour assembly time approx. 2 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
- Page 3 Quickfit head should be in the centre of the cam lock when the two panels are joined. Turn cam lock clockwise to tighten. Cam lock should be inserted before quickfit. 3 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
-
Page 4: Hardware List
6 x E 1 x F 16 x G 14 x H Screw Allen Key Screw Screw 4 x I 4 x J 4 x K Roller Roller 4 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815... -
Page 5: Parts List
PARTS LIST 1 PC 1 PC 2 PCS 2 PCS 2 PCS 5 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815... - Page 6 A x 6 Insert quickfit screws (B) to part 1. Insert wooden dowels (D) to parts 3, 4 and 5, as shown. B x 6 D x 12 6 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
- Page 7 Insert wooden dowels (D) to parts 7 and 8, as shown. B x 4 D x 8 B B B B B B B B B B B B 7 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
- Page 8 Fix parts 3, 4 and 5 to part 1. C x 6 Turn cam locks clockwise to tighten Attach covers (C) to parts 3, 4 and 5, as shown. 8 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
- Page 9 STEP 4 Fix part 2 to parts 3, 4 and 5 using screws (E) and allen key (F), as shown. E x 6 F x 1 9 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
- Page 10 ASSEMBLY INSTRUCTIONS STEP 5 Attach parts 7 to parts 8. C x 4 Turn cam lock clockwise to tighten. Attach covers (C) to part 7, as shown. 10 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
- Page 11 ASSEMBLY INSTRUCTIONS STEP 6 Fix parts 7 and 8 to part 2 using screws (H), as shown. H x 14 11 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
- Page 12 ASSEMBLY INSTRUCTIONS STEP 7 Fix legs (I) to parts 8, as shown. I x 4 12 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
- Page 13 ASSEMBLY INSTRUCTIONS STEP 8 Fix rollers (J) and (K) to parts 6 using screws (G), as shown. G x 16 J x 4 K x 4 13 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
- Page 14 ASSEMBLY INSTRUCTIONS STEP 9 Insert parts 6 to assembled coffee table, as shown. 14 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
- Page 15 ASSEMBLY INSTRUCTIONS STEP 10 Insert parts 6 to assembled coffee table, as shown. 15 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
- Page 16 STEP 11 Please note: the maximum recommended weight is 5kg for each shelves and 20kg on top of coffee table. Your coffee table is ready for use.. 16 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10814 / UH10815...
