Summary of Contents for Ronix 2520

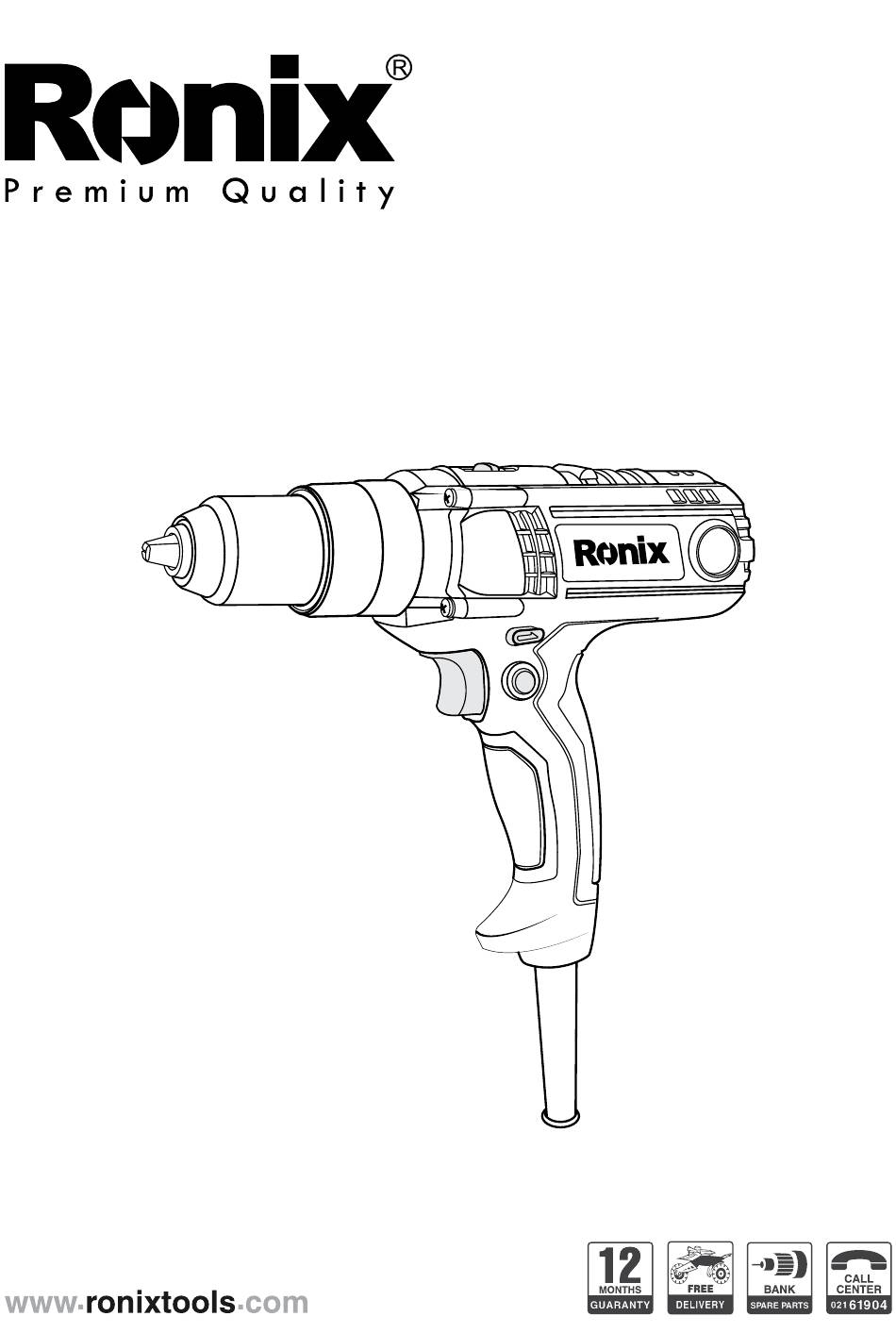

- Page 1 INDUSTRIAL IMPACT SCREWDRIVER 2520...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS Spec 2520 Voltage 220V Frequency 50 Hz Power 450W No load Speed 0-480/0-1800r/min Chuck Capacity 13mm Capacity in Wood 38 mm Capacity in Steal 13 mm Net Weight 2.56 Kg Accessories 1 pair of Carbon brush, 1 Side Handle... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING! To reduse the risk of injury user must read instruction manual. Read all safety warnings and all instructions failure to follow all warning and instruction may result in election shock fire and/or serious injury. Save all warning and instructions for future reference The term “power tool”... -
Page 4: Personal Safety
- when operating a power tool outdoors use an outdoor extension cord marked “W-A” or “W”. these cords are rated for outdoor use and reduce the risk of electric shock. - If operating a power tools in a damp location is unavoidable use a residual current device (RCD) protected supply. -
Page 5: Special Safety Warnings
POWER TOOL USE AND CARE - Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it is designed. - Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. - Page 6 2) Use auxiliary handles supplied with the tools.loss of control can cause personal injury. 3) Hold power tool by insulated gripping surfaces performing an operation with the cutting accessory may contact hidden wiring or its cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live”...
-
Page 7: Changing The Tool
On/Off Switch times when the tool is switched off and when it is running idle in addition to the trigger time). ASSEMBLY CHANGING THE TOOL Before any work on the power tool(e.g.maintenancetool change etc.)as well as during transport and storageset the rotational direction switch to the center position.unintentional actuation of the on/off switch can lead to injuries. -
Page 8: Dust/Chip Extraction
hex key a light blow.Remove the hex key from the keyless chuck and completely unscrew the keyless chuck. MOUNTING THE DRILL CHUCK The drill chuck must be tightened with a tightening torque of approx. 20Nm Screw the securing screw in counter lock-wise direction into the opened keyless chuck Then;... -
Page 9: Setting The Torque
on/off switch. The speed can be adjusted in the high gear or in the low gear, by controlling the trigger-pressing force. For continuity operation, press the lock button while pressing the trigger. Press again to release the lock. REVERSING THE ROTATIONAL DIRECTION The F/R lever is used to reverse the rotation of the machine. - Page 10 When the on/off switch is not pressed, the drill spindle and thus the holder are locked too. This enables screws to be screwed in, allows for the tool to be used as a screwdriver. RUN-ON BRAKE when the on/off switch is released, the chuck brakes to a stop, thus preventing the run-on of the tool.
- Page 11 Even when the power tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the power tool’s construction and design: 1) Damage to lungs if an effective dust mask is not worn. 2) Damage to health resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained.
