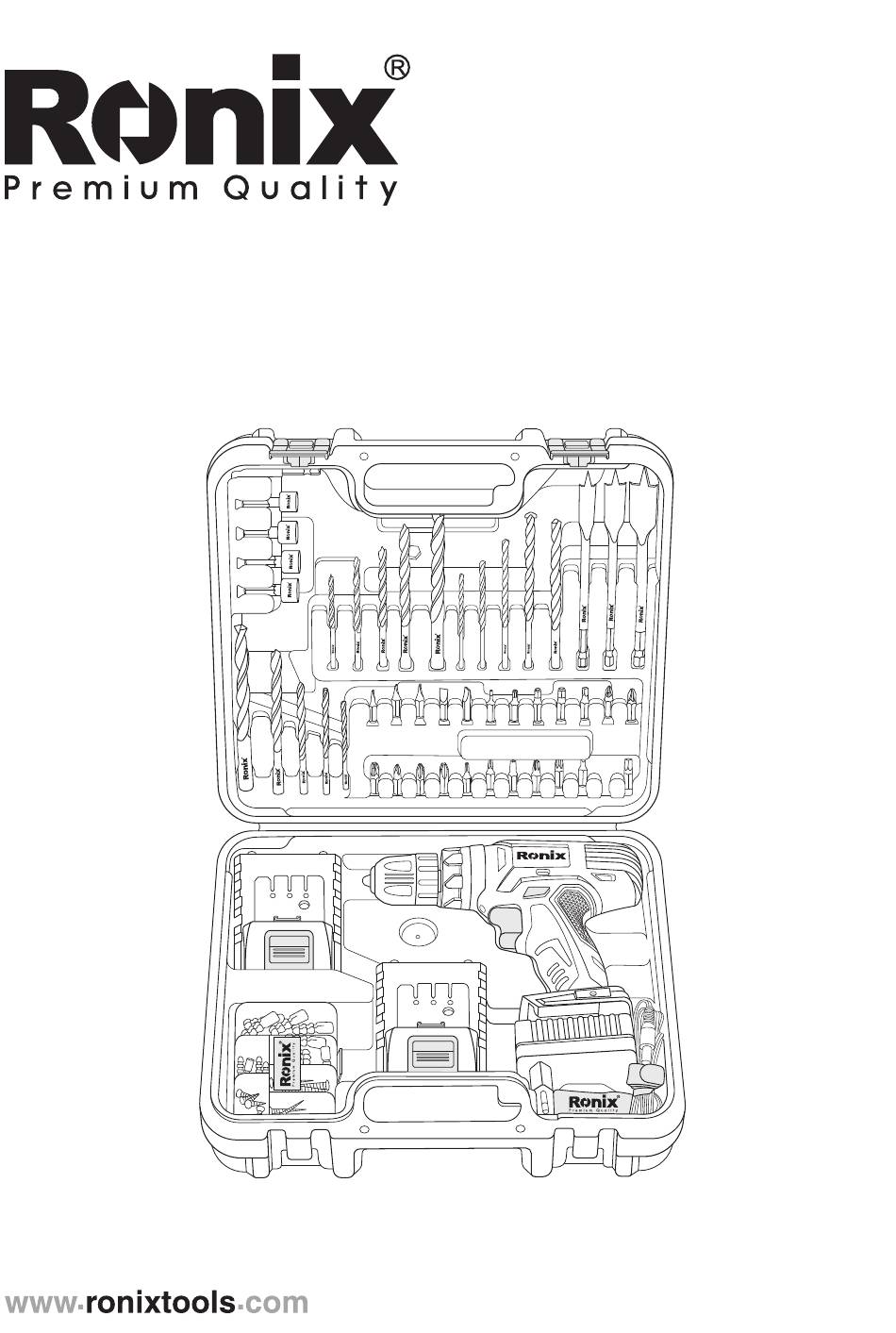

- Page 1 18V CORDLESS DRILL SET RS-8019...
-
Page 3: Technical Specification
TECHNICAL SPECIFICATION Model RS-8019 Battery Chemistry Lithium-Ion Chuck Design Keyless Chuck Size 10mm Battery Voltage Battery Capacity 1.5Ah 0-400 RPM No-Load RPM 0-1350 RPM Impact Rate 0-6000/0-20250BPM Max Torque 30N.M Max Capacity in Wood 20mm Max Capacity in Steel 10mm... -
Page 4: Part List
PART LIST Adjustable torque clutch Keyless chuck Forward/Reverse Work light switch Power trigger Battery GENERAL POWER TOOL SAFETY RULES WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. -
Page 5: Personal Safety
presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ECTRICAL SAFETY - Power tool plugs must match the outlet. Never modify the plug in any way. - Page 6 personal injuries. - Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/ or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. - Remove any adjusting key or wrench before turning the power tool on.
- Page 7 power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. - Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. - Use the power tool, accessories and tool bits etc.
-
Page 8: Working Environment
CORDLESS DRILL/SCREW DRIVER SAFETY WARNING! - Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a «live» wire may make exposed metal parts of the power tool live and could give the operator an electric shock. - Always be sure you have a firm footing. - Page 9 immediately. It may result in a risk of overheating, possible burns and even an explosion. - If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight. DO NOT SHORT THE BATTERY CARTRIDGE - Do not touch the terminals with any conductive material.
-
Page 10: Functional Description
Lamp NOTE: Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination. REVERSING SWITCH ACTION This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation. - Page 11 INSTALLING OR REMOVING BATTERY CARTIRDGE - To remove the battery cartridge, withdraw it from the tool while sliding the button on the front of the cartridge. - To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click.
- Page 12 Switch trigger SPEED CHANGEA To change the speed, first switch off the tool and then slide the speed change lever to the «H» side for high speed or «L» side for low speed. Be sure that the speed change lever is set to the correct position before operation.
- Page 13 ADJUSTING THE FASTENING TORQUE The fastening torque can be adjusted in 18 steps by turning the adjusting ring so that its graduations are aligned with the pointer on the tool body. The fastening torque is minimum when the number 1 is aligned with the pointer and maximum when the marking is aligned with the pointer.
-
Page 14: Drilling Operation
Sleeve NOTE: When driving wood screws, predrill pilot holes to make driving easier and to prevent splitting of the work piece. See the chart. Nominal diameter of wood screw (mm) Recommended size of pilot hole (mm) 2.0-2.2 2.2-2.5 2.5-2.8 2.9-3.2 3.1-3.4 3.3-3.6 3.7-3.9... - Page 15 obtained with wood drills equipped with a guide screw. The guide screw makes drilling easier by pulling the bit into the work piece. To prevent the bit from slipping when starting a hole, make an indentation with a center-punch and hammer at the point to be drilled. Place the point of the bit in the indentation and start drilling.
-
Page 16: Maintenance
MAINTENANCE CAUTION: - Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance. - Never use gasoline, benzene, thinner, alcohol or the like. Discoloration, deformation or cracks may result. 18V CORDLESS DRILL SET...
