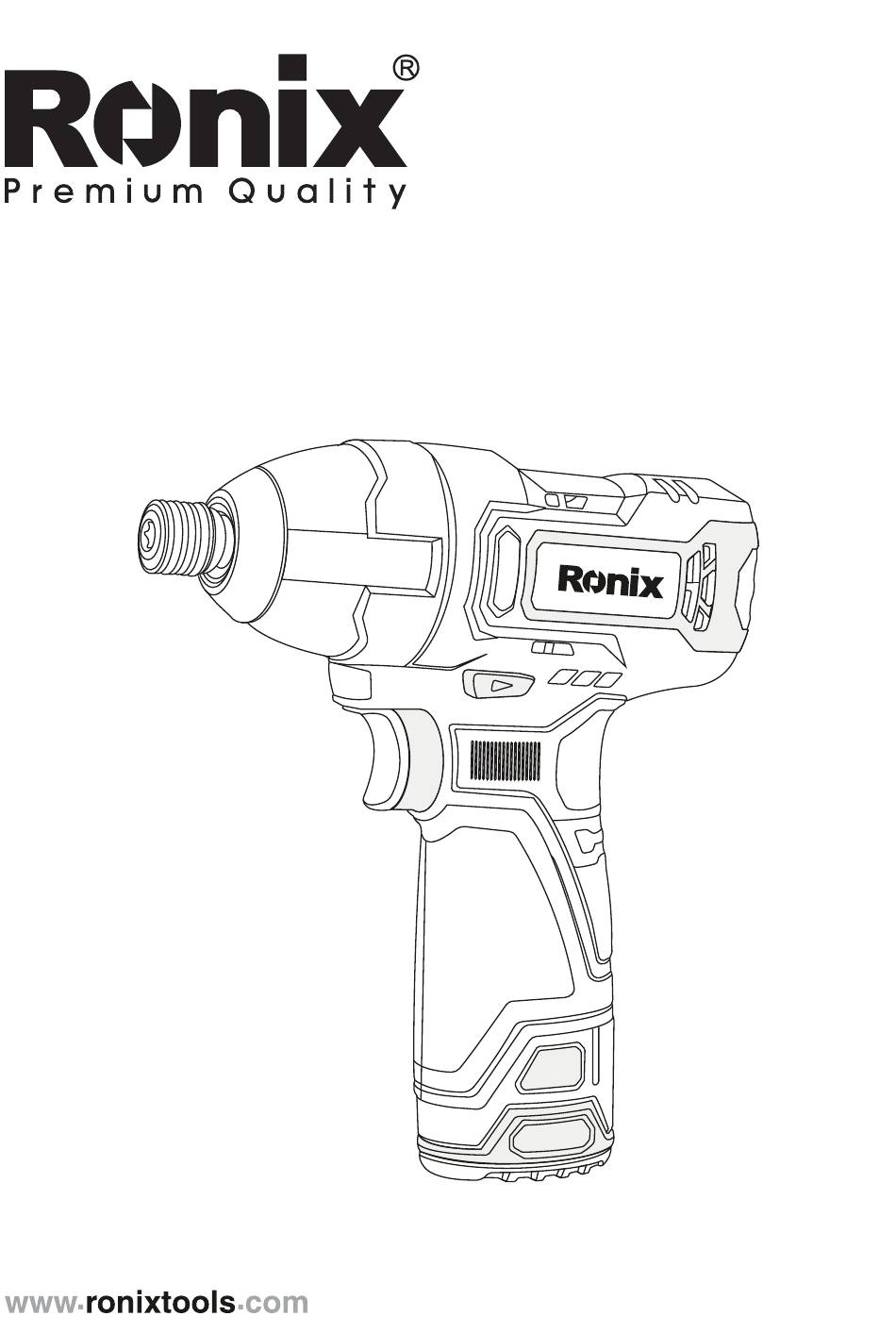

- Page 1 CORDLESS SCREWDRIVER 8104K...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS Model 8104K Battery Voltage Max Torque 120N.m Chuck Capacity 1/4 inch No-load Speed 0-2700RPM Accessories 2 Batteries(2A)+(1) Fast Charger PART LIST Holder Cover Holder Charger Indicator On/Off Switch Clockwise-AntiClockwise Button USER MANUAL... -
Page 3: General Power Tool Safety Rules
GENERAL POWER TOOL SAFETY RULES WARNING! -Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. -Save all warnings and instructions for future reference. -The term «power tool» in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 4 the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. -Use personal protective equipments. Always wear eye protection. protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
- Page 5 -Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. -Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation.
-
Page 6: Cordless Screw Driver Safety
-Follow instruction for lubricating and changing accessories. -Keep handles dry, clean and free from oil and grease. CORDLESS SCREW DRIVER SAFETY WARNING! -Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a «live»... - Page 7 immediately. It may result in a risk of overheating, possible burns and even an explosion. -If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight. DO NOT SHORT THE BATTERY CARTRIDGE 1.Do not touch the terminals with any conductive material.
- Page 8 LIGHTING UP THE FRONT LAM CAUTION Do not look in the light or see the source of light directly. Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. LED LAMP NOTE: Use a dry cloth to wipe the dirt off the lens of lamp.
-
Page 9: Functional Description
FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. INSTALLING OR REMOVING BATTERY CARTRIDGE -To remove the battery cartridge, withdraw it from the tool while sliding the button on the front of the cartridge. -
Page 10: Operation
-When not operating the tool, always set the reversing switch lever to the neutral position. Switch ASSEMBLY CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. INSTALLING OR REMOVING DRIVER BIT Turn the sleeve counter clockwise to open the bit-holder jaws. -
Page 11: Maintenance
Holder Cover Holder SCREW DRIVING OPERATION CAUTION Adjust the adjusting ring to the proper torque level for your work. Place the point of the driver bit in the screw head and apply pressure to the tool. Start the tool slowly and then increase the speed gradually. Release the switch trigger as soon as the clutch cuts in. - Page 12 -Never use gasoline, benzene, thinner, alcohol or the like. Discoloration, deformation or cracks may result. NOTE: To maintain product safety and reliability repairs, any other maintenance or adjustment should be performed by Ronix Service Authorized Service Centers, always using RONIX replacement parts. USER MANUAL...
