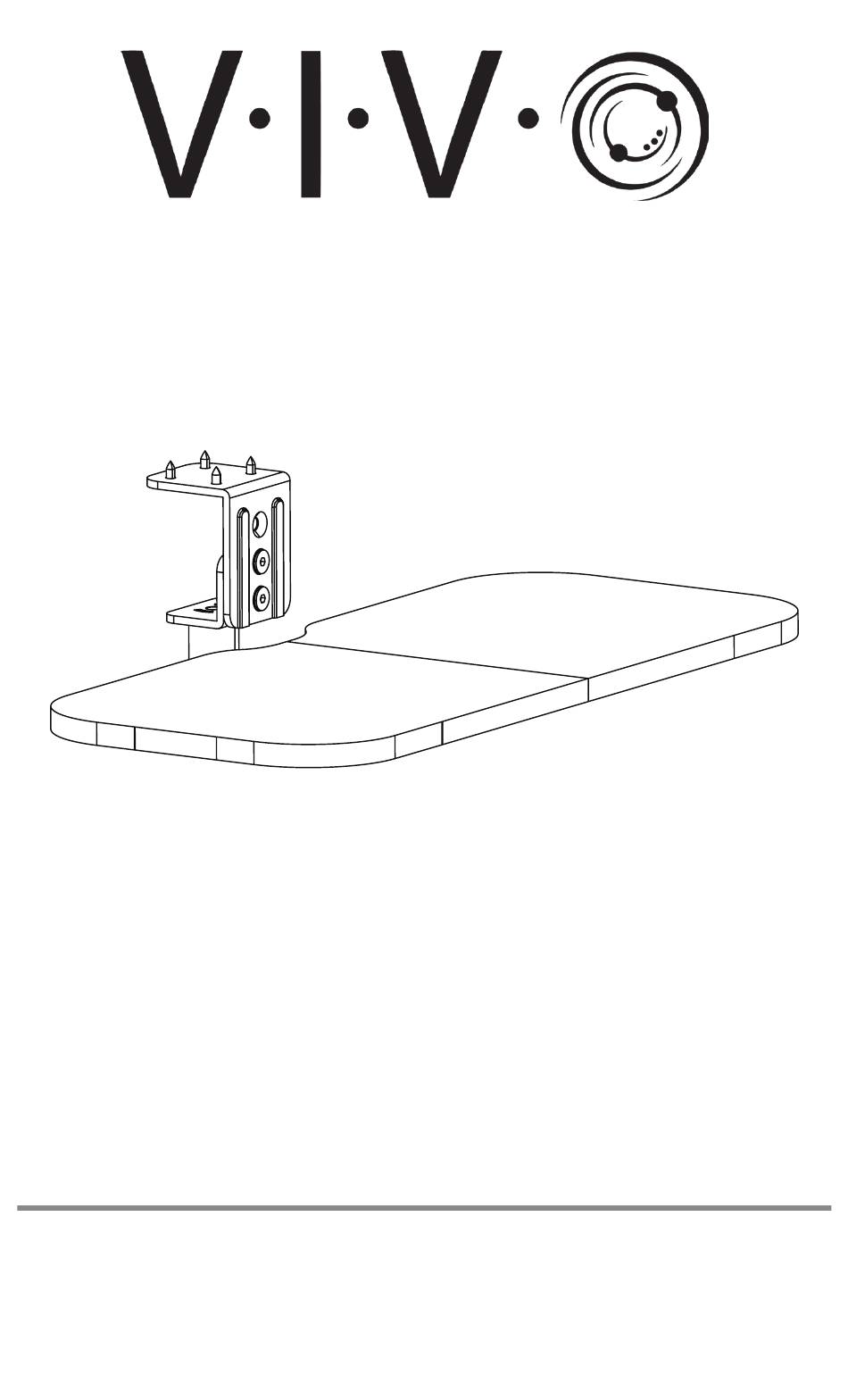

- Page 1 Under Desk Rotating Keyboard Tray MOUNT-KB01B Assembly Manual...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
- Page 3 Package Contents A (x1) B (x1) C (x1) Keyboard Tray Connecting Upper Mounting Plate Bracket E (x1) F (x2) D (x1) Lower Mounting Plastic Template Bracket Bushing G (x1) Swivel Cap Included Hardware & Tools S-A (x4) S-B (x10) S-C (x6) M8x12mm Screw M5x12mm Screw ST5x16mm Screw...
-
Page 4: Pre-Assembly
Preassembly ***Check for Under-Desk Clearance*** Clearance Diameter: 30”(0.76m) The assembly will be screwed into your desktop, so it is important to get the positioning correct. A clearance diameter of 30”(0.76m) is needed under your desk. Assembly Steps STEP 1 Align Template (D) along the bottom edge of your desktop and use a pencil to mark drilling locations. - Page 5 STEP 2 - Cont’d Secure Upper Mounting Bracket (C) to the desktop using ST5x16mm Screws (S-C) and a Phillips screwdriver. Mounting Hole The end of the Upper Mounting Bracket (C) with three Mounting Holes face the edge of the desktop. STEP 3 Connect Keyboard Tray (A) together using Connecting Plate (B) and M5x12mm Screws (S-B).
- Page 6 STEP 5 Attach the Keyboard Tray Assembly to the Upper Mounting Bracket (C) using M8x12mm Screws (S-A) and 5mm Allen Wrench (T-B) at desired height. Choose Your Desired Tray Height Choose a Tray height option, taking into consideration room needed above and below the Tray assembly.
- Page 7 STEP 5 - Cont’d Tighten the Set Screw on Swivel Cap (G) with 3mm Allen Wrench (T-A). CAUTION The Set Screw on the Swivel Cap MUST BE TIGHTENED to prevent the Swivel Cap from loosening and allowing the tray assembly to fall. Screw STEP 6 Adjust as desired.
- Page 8 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
