Summary of Contents for Knauer Azura Organizer

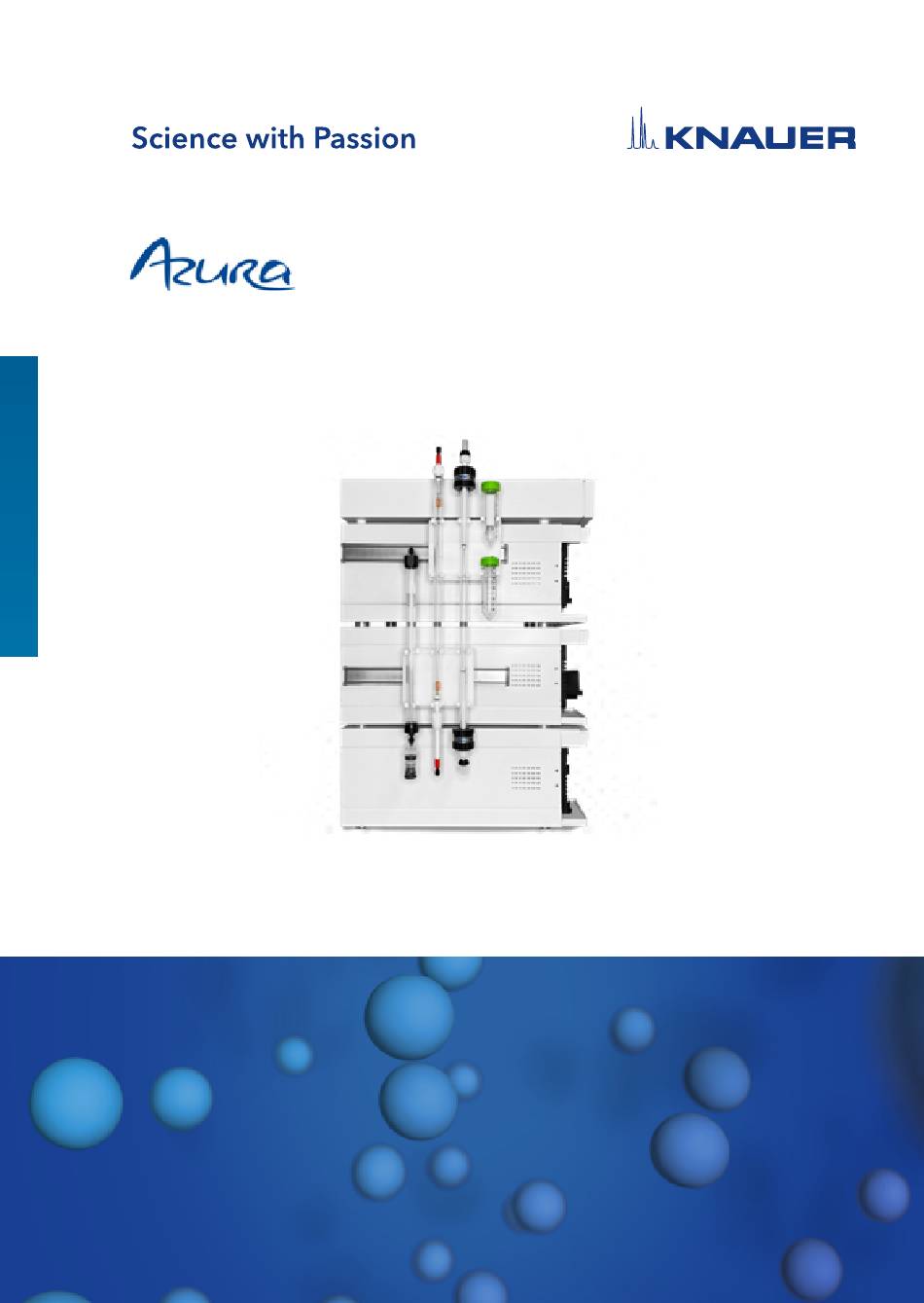

  • Page 1 Organizer Supplement/Beiblatt Document No. V6868...
  • Page 2 The information in this document is subject to change without prior notice. For the latest version of the instructions, visit our website: www.knauer.net/library. © KNAUER Wissenschaftliche Geräte GmbH 2022 All rights reserved. AZURA® is a registered trademark of KNAUER Wissenschaftliche Geräte GmbH.
  • Page 3: Table Of Contents

    2. Scope of delivery ..................3 3. Attaching AZURA® Organizer onto AZURA Click rail .......4 3.1 Attaching AZURA Organizer ........... 4 3.2 Taking off AZURA Organizer ........... 4 4. Mounting the clamps ................5 5. Mounting AZURA pH flow cell ............6 6. Repeat orders ..................8...
  • Page 4: Product Information

    Legend: AZURA Organizer AZURA Click rail AZURA device Holes to mount the clamps Holes to mount the AZURA pH flow cell AZURA Click rail holder Fig. 1 AZURA Organizer front side Fig. 2 AZURA Organizer back side AZURA® Organizer Supplement, V6868...
  • Page 5 Product information The AZURA Organizer can be flexibly positioned on the side surface of an AZURA device or system with L-footprint via the AZURA Click rail. Legend: AZURA Organizer 1 ml column 5 ml column AZURA pH flow cell AZURA Click rail 50 ml falcon tube 15 ml...
  • Page 6: Scope Of Delivery

    Pan head screw T10 to attach the clamps to the AZURA organizer Legend: AZURA Organizer Pan head screw T10 (6x) clamp 25 mm (2x) clamp 16 mm (4x) clamp 12 mm Fig. 4 AZURA Organizer scope of delivery (6x) AZURA® Organizer Supplement, V6868...
  • Page 7: Attaching Azura® Organizer Onto Azura Click Rail

    Process 1. Hook the holder of the AZURA Organizer on the upper edge of the AZURA Click rail 2. Push the AZURA Organizer against the lower edge of the AZURA Click rail. Fig. 5 Attaching AZURA Organizer on mounting rail 3.2 Taking off AZURA Organizer...
  • Page 8: Mounting The Clamps

    Mounting the clamps 4. Mounting the clamps Note: When mounting the clamps: Use two clamps to mount longer columns. ƒ For SEC columns, KNAUER recommends two organizers. ƒ Use the screws supplied with the delivery. ƒ Tools: Torx screwdriver T10 ƒ...
  • Page 9: Mounting Azura Ph Flow Cell

    3. Remove the AZURA Organizer from the AZURA rail Click Fig. 8 AZURA Organizer on AZURA Click rail (the holes for mounting the AZURA pH flow cell are each marked with a square and a circle) AZURA® Organizer Supplement, V6868...
  • Page 10 5. Hold the back of the AZURA pH flow cell against the front of the AZURA Organizer so that the screw can be screwed into the corresponding threaded hole on the AZURA pH flow cell (marked with a square/circle in the picture). Use the T10 torx screwdriver.
  • Page 11: Repeat Orders

    AZURA Organizer with mounted AZURA pH flow cell on AZURA Click rail Note: Alternatively, you can also attach the AZURA pH flow cell on the AZURA Organizer at the position of the other two holes. 6. Repeat orders Name Article no.
  • Page 12 Versionsnummer: 2.0 Datum der Veröffentlichung: 28.12.2022 Originalausgabe Technische Änderungen vorbehalten. Die aktuellste Version der Betriebsanleitung finden Sie auf unserer Homepage: www.knauer.net/bibliothek. © KNAUER Wissenschaftliche Geräte GmbH 2022 Alle Rechte vorbehalten. AZURA® ist ein eingetragenes Warenzeichen der KNAUER Wissenschaftliche Geräte GmbH.
  • Page 13 Inhalt 1. Produktinformation ................1 2. Lieferumfang ..................3 3. AZURA® Organizer an AZURA Click Schiene anbringen ....4 3.1 AZURA Organizer anbringen ..........4 3.2 AZURA Organizer abnehmen ..........4 4. Klemmen anbringen ................5 5. AZURA pH-Flusszelle montieren ............6 6. Nachbestellungen ................9...
  • Page 14: Produktinformation

    Klemm­Mechanismus gruppiert und fixiert werden. Legende: AZURA Organizer AZURA Click Schiene AZURA Gerät Löcher zur Befestigung der Klammern Löcher zur Befestigung der AZURA Abb. 1 AZURA Organizer Vorderseite pH­Flusszelle AZURA Click Schienenhalte­ rung Abb. 2 AZURA Organizer Rückseite AZURA® Organizer Beiblatt, V6868...
  • Page 15 Produktinformation Der AZURA Organizer kann flexibel über die AZURA Click Schiene an der Seitenfläche eines AZURA Gerätes oder Systems mit L­Fußabdruck positioniert werden. Legende: AZURA Organizer 1­ml­Säule 5­ml­Säule AZURA pH­Flusszelle AZURA Click 50­ml­Zentri­ fugenröhrchen 15­ml­Zentri­ fugenröhrchen Abb. 3 AZURA Organizer mit Zubehör...
  • Page 16: Lieferumfang

    Säulen bis 26 mm Außendurch­ messer Flachkopf­ um die Klemmen am AZURA schraube R1306F organizer zu befestigen Legende: AZURA Organizer Flachkopf­ schraube T10 (6x) 25­mm­ Klemme (2x) 16­mm­ Klemme (4x) 12­mm­ Abb. 4 Lieferumfang AZURA Organizer Klemme (6x) AZURA® Organizer Beiblatt, V6868...
  • Page 17: Azura® Organizer An Azura Click Schiene Anbringen

    1. Haken Sie die Halterung des AZURA Organizers an der oberen Kante der AZURA Click Schiene ein. 2. Drücken Sie den AZURA Organizer gegen die untere Kante der AZURA Click Schiene. Abb. 5 AZURA Organizer an AZURA Click Schiene anbringen 3.2 AZURA Organizer abnehmen...
  • Page 18: Klemmen Anbringen

    Bohrungen AZURA Organizers an. 2. Befestigen Sie die Klemme mit der Flachkopfschraube dem Torx­Schraubendreher. 3. Sie können die Spannweite der Klemme beim Anziehen der Flachkopfschraube einstellen. Abb. 6 Klemmen am AZURA Organizer anbringen AZURA® Organizer Beiblatt, V6868...
  • Page 19: Azura Ph-Flusszelle Montieren

    3. Nehmen Sie den AZURA Organizer von der Click Schiene Abb. 8 AZURA Organizer an der AZURA Click Schiene (die Löcher für die Montage der AZURA pH­Flusszelle sind jeweils mit einem Quadrat und einem Kreis markiert) AZURA® Organizer Beiblatt, V6868...
  • Page 20 (Größe M3x10) in eines der Löcher ein (in der Abbildung mit einem Quadrat/Kreis markiert). Abb. 9 Schrauben zur Befestigung der AZURA pH­Durchflusszelle am AZURA Organizer 5. Halten Sie die Rückseite der AZURA pH­Flusszelle an die Vorderseite des AZURA Organizers, so dass die Schraube in die zugehörige Gewindebohrung der AZURA pH­Flusszelle (im Bild...
  • Page 21 AZURA Click Schiene Abb. 11 AZURA Organizer mit montierter AZURA pH­Flusszelle an der AZURA Click Schiene Note: Alternativ können Sie die AZURA pH­Flusszelle am AZURA Organizer auch an der Position der beiden anderen Löcher befestigen. AZURA® Organizer Beiblatt, V6868...
  • Page 22: Nachbestellungen

    Nachbestellungen 6. Nachbestellungen Bezeichnung Bestellnr. AZURA Organizer A70085 12­mm­Klemme A70085­1 16­mm­Klemme A70085­2 25­mm­Klemme A70085­3 AZURA Click Schiene A70089 AZURA® Organizer Beiblatt, V6868...
  • Page 24 Latest KNAUER instructions online: www.knauer.net/library © KNAUER 2022 KNAUER Phone: +49 30 809727-0 Wissenschaftliche Geräte GmbH Fax: +49 30 8015010 Hegauer Weg 38 E-Mail: info@knauer.net 14163 Berlin Internet: www.knauer.net...
