Summary of Contents for Knauer Azura IJM NanoProducer

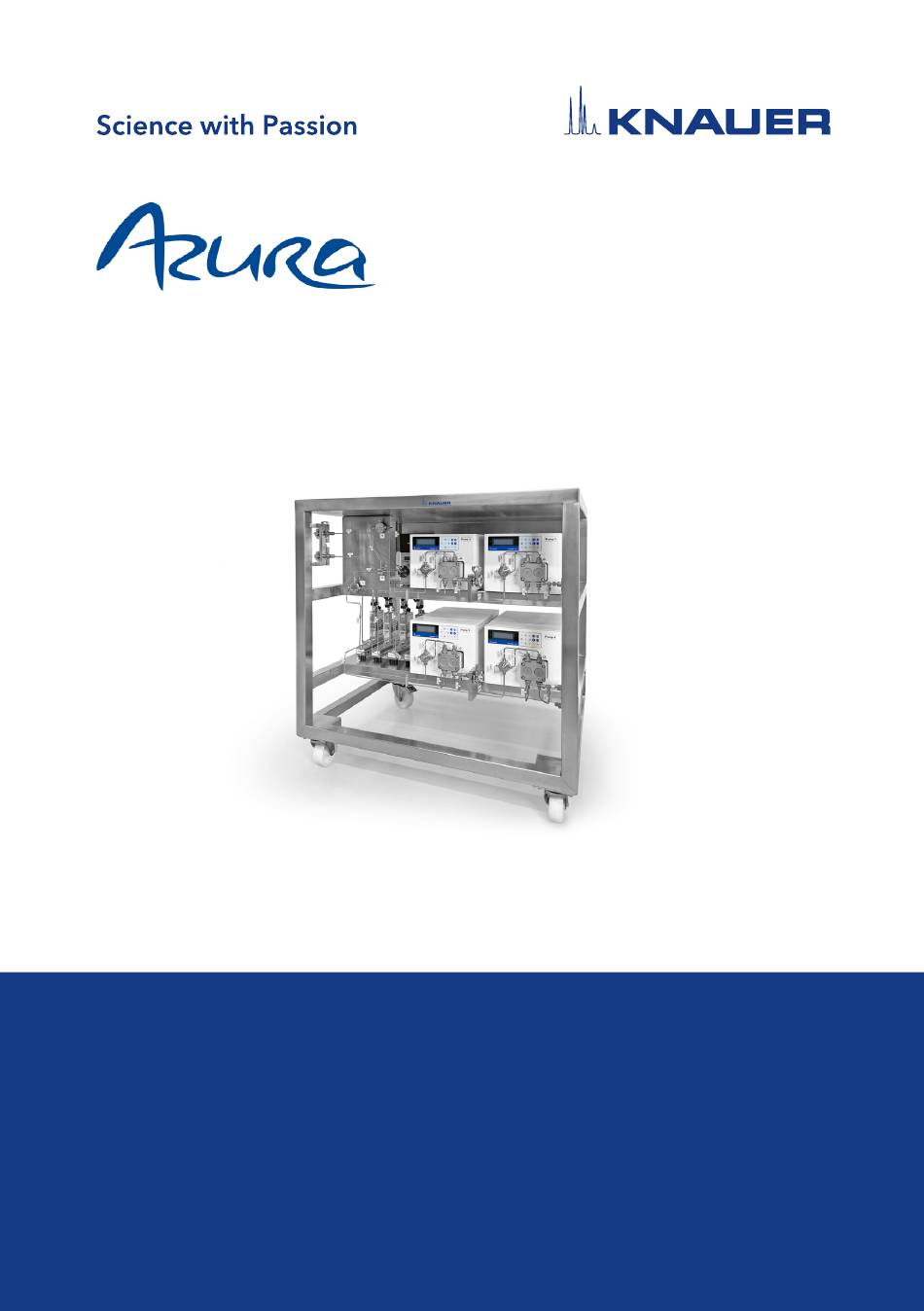

- Page 1 Pre-installation guide for IJM NanoProducer Exemplary layout Document no. V6762...
- Page 2 For latest version of the manual, check our website: www.knauer.net/en/Support/User-manuals Copyright: This document contains confidential information and may not be reproduced without written consent of KNAUER Wissenschaftliche Geräte GmbH. © KNAUER Wissenschaftliche Geräte GmbH 2024 All rights reserved. AZURA® is a registered trademark of...
-
Page 3: Table Of Contents
Power connection ............ 7 6. Minimum computer requirements ..........8 Minimum computer requirements for PurityChrom® 6 ............8 7. Uninstalling software, KNAUER drivers and extensions ..9 Settings for sleep function ........9 8. Technical data................10 9. Checklist ..................11 Pre-installation guide NanoProducer, V6762... -
Page 4: Overview
Overview This manual describes how to prepare for installing an IJM NanoPro- ducer. It contains information on the following: Intermediate storage of shipping boxes ƒ System set-up ƒ Installation site requirements ƒ Dimensions of IJM NanoProducer systems ƒ Power supply ƒ Characteristic data of individual modules ƒ... -
Page 5: Installation Site Requirements
The device weighs more than 18 kg. If it falls, it may cause injury. Only carry the device with two people. The IJM NanoProducer system will be set up, installed and com- missioned by KNAUER or a company authorized and contracted by KNAUER. Note:... -
Page 6: Requirements Of The Ijm Nanoproducer System
Installation site requirements Device defect The device overheats at exposure to sunlight and insufficient air circula- tion. Device failures are very likely. Set up the device in such a way that it is protected against exposure to direct sunlight. Leave room for air circulation: See paragraph “space requirements“. Requirements of the IJM NanoProducer system 3.3.1... -
Page 7: Requirements For Earthquake Regions
Installation site requirements Note: KNAUER recommends standard silicone tubing (artic- le number A9872) with an outer diameter of 16 mm and an inner diameter of 12 mm. 3.3.3 Requirements for earthquake regions If the device is set up in a region where earthquakes are common, secure the device at the two fixing points . -
Page 8: Ijm Nanoproducer Systems
4. IJM NanoProducer systems System layout examples 4.1.1 IJM SingleCore NanoProducer A basic IJM SingleCore NanoProducer for lipid nanoparticle formula- tion typically consists of the following devices: 4 dosing pumps ƒ 4 flowmeters ƒ 3 mixers ƒ 1 valve drive with valve ƒ... -
Page 9: Ijm Duocore Nanoproducer
IJM NanoProducer systems 4.1.2 IJM DuoCore NanoProducer A basic IJM DuoCore NanoProducer for lipid nanoparticle formula- tion typically consists of the following devices: 8 dosing pumps ƒ 8 flowmeters ƒ 6 mixers ƒ 2 valve drives with valve ƒ Legend: Mixers Valve drives with valve... -
Page 10: Power Supply
5. Power supply Universal AC/DC switching power adapter The modules are equipped with an universal AC/DC switched-mode power adapter rated for 100–240 V AC. Power cable Power cables are part of the delivery. They are available for the follo- wing destinations: ƒ... -
Page 11: Minimum Computer Requirements
6. Minimum computer requirements Minimum computer requirements for PurityChrom® 6 Requirements are fullfiled with the delivered chromatography workstations. Windows 10, Windows 11 Operating system (English or German only) Intel Core i5 6th generation or comparable Memory (RAM) 8 GB DDR4 Free disc space 10 GB USB for the licence dongle Connections... -
Page 12: Uninstalling Software, Knauer Drivers And Extensions
Uninstalling software, KNAUER drivers and extensions To uninstall chromatography software and device drivers, use the Windows Control Panel (CONTROL PANEL > UNINSTALL A PROGRAM). Settings for sleep function When you are working with the chromatography software, disable the sleep function. Going to CHANGE ADVANCED POWER SETTINGS... -
Page 13: Technical Data
8. Technical data Note: For technical data about external devices, refer to the website of the producer. Power Dimensions Device Weight in kg con sumption (W×H×D) in mm in W BlueShadow 13.2 242 x 191 x 407 Pump 80P VU 4.1 80 x 123 ×... -
Page 14: Checklist
The power supply and cable comply with the requirements. ƒ The tubing either complies with the requirements or is deli- ƒ vered by KNAUER. Ambient conditions at installation site The installation site complies with the requirements with respect to equipment, temperature, humidity, vibration and high fre quency emissions. - Page 15 Latest KNAUER instructions online: www.knauer.net/library © KNAUER 2024 KNAUER Phone: +49 30 809727-0 Wissenschaftliche Geräte GmbH Fax: +49 30 8015010 Hegauer Weg 37 - 38 E-mail: info@knauer.net 14163 Berlin Internet: www.knauer.net...
