10.3 Test Report in Report Manager

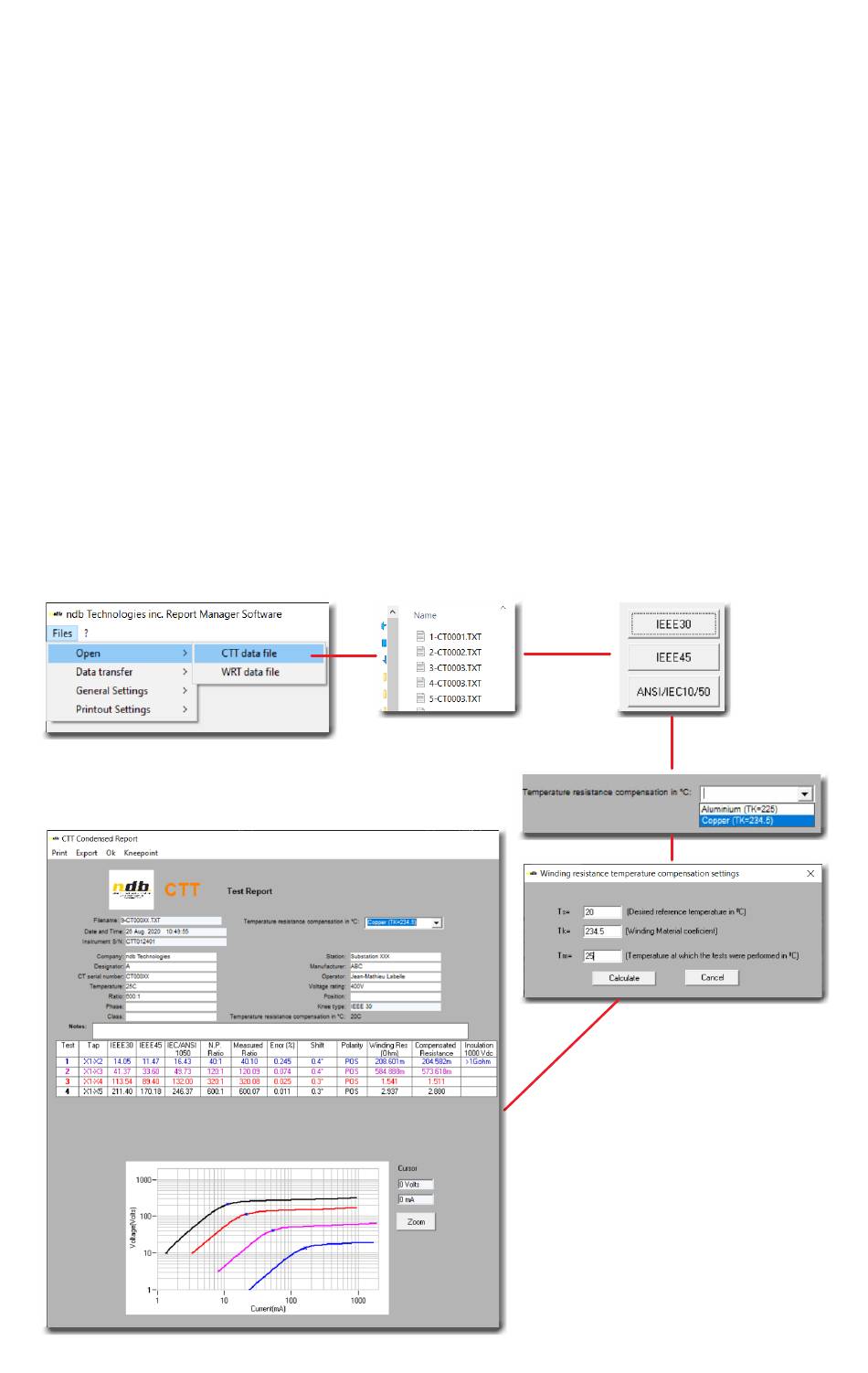

1. On a PC computer, start Report Manager.
2. Click Files - Open - CTT data files.
3. Browse and select a test file.
4. Select the knee point standard required for the final test report.
5. Select the transformer's winding material, and then set the winding resistance
temperature compensation settings (Celsius only).
6. Test report will be displayed with all test values. Edit or add notes, if required.
7. To print the report, select Print and the desired printer. To export a PDF file,
select a "print to PDF" printer.
8. To export test values to MS Excel, select the Export button.
