7.1.3 F2-CT Info tab

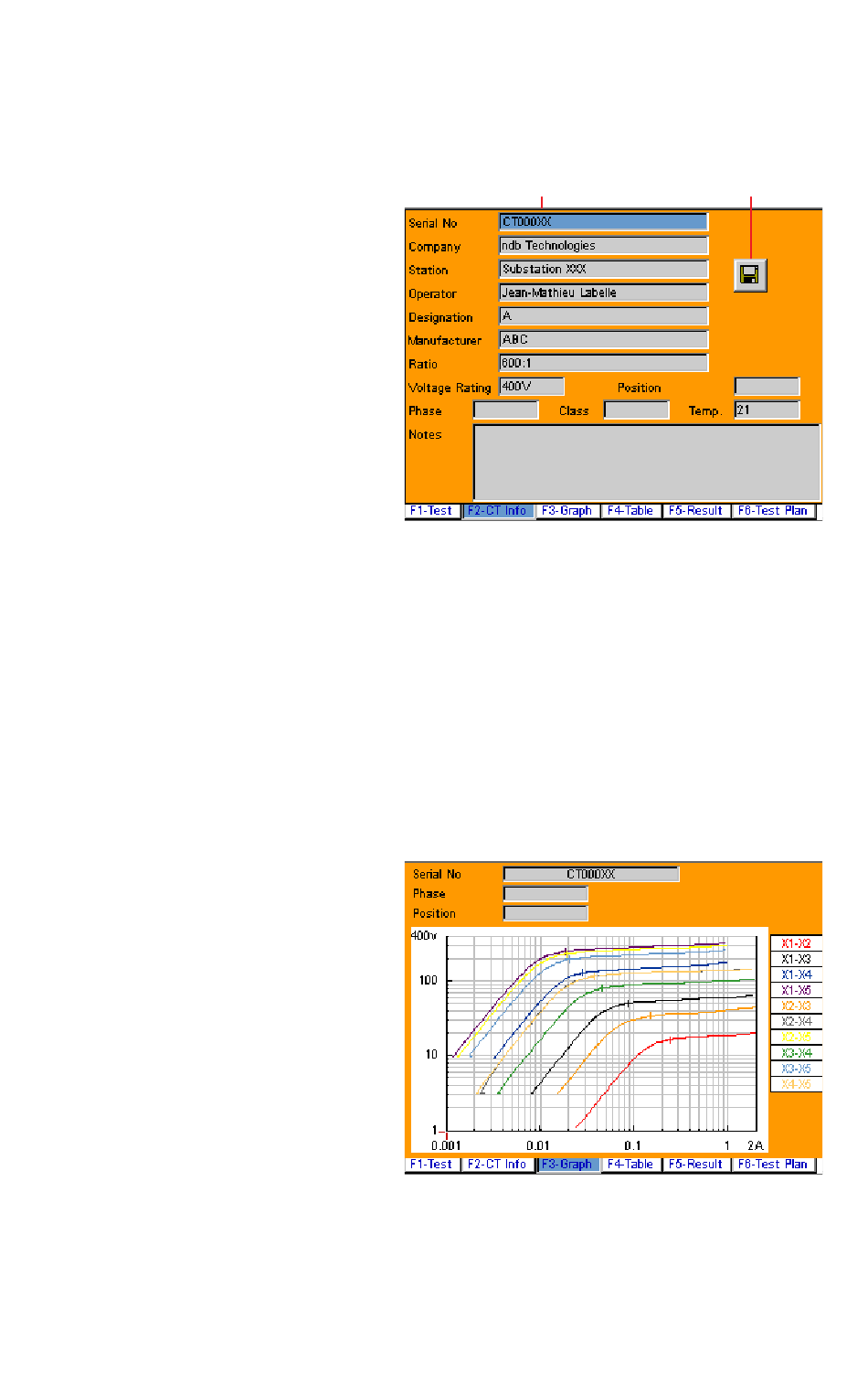

The F2-CT Info tab is where the operator fills in the CT's information. Note the
serial number field is mandatory
prior saving a measurement.
1. Type in all
information about the CT to
be tested.
2. Saves all tests results to
memory. The Serial No field is
mandatory prior saving. This
save button serves the same
function as the one found on
tab F1-Test.
7.1.4 F3-Graph tab
The F3-Graph tab displays saturation curves for every ratio combination of a
completed test. Serial number, phase and position informations are copied from
the F2-CT Info tab.
